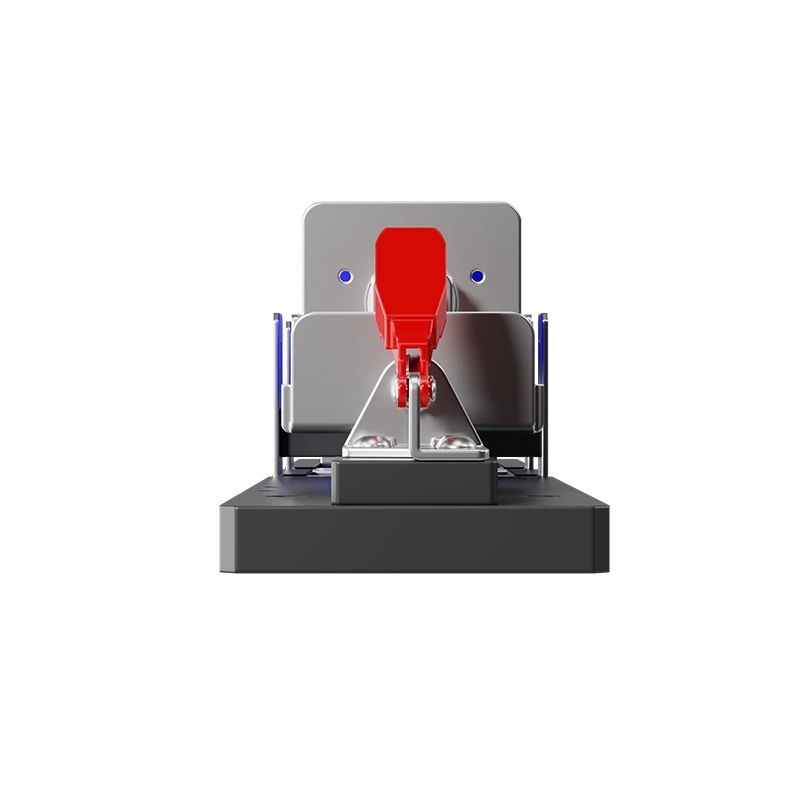

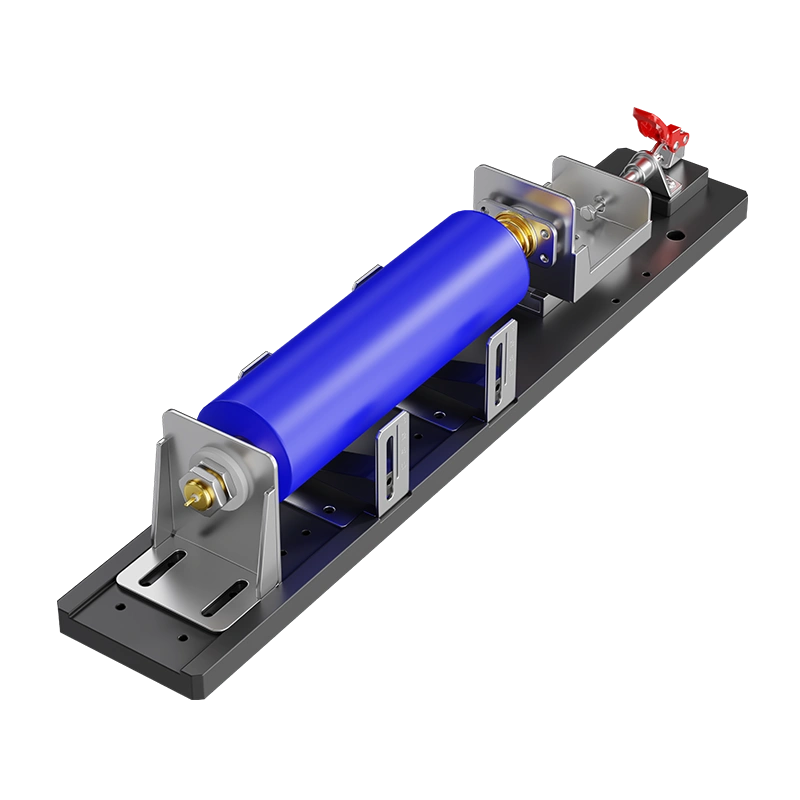

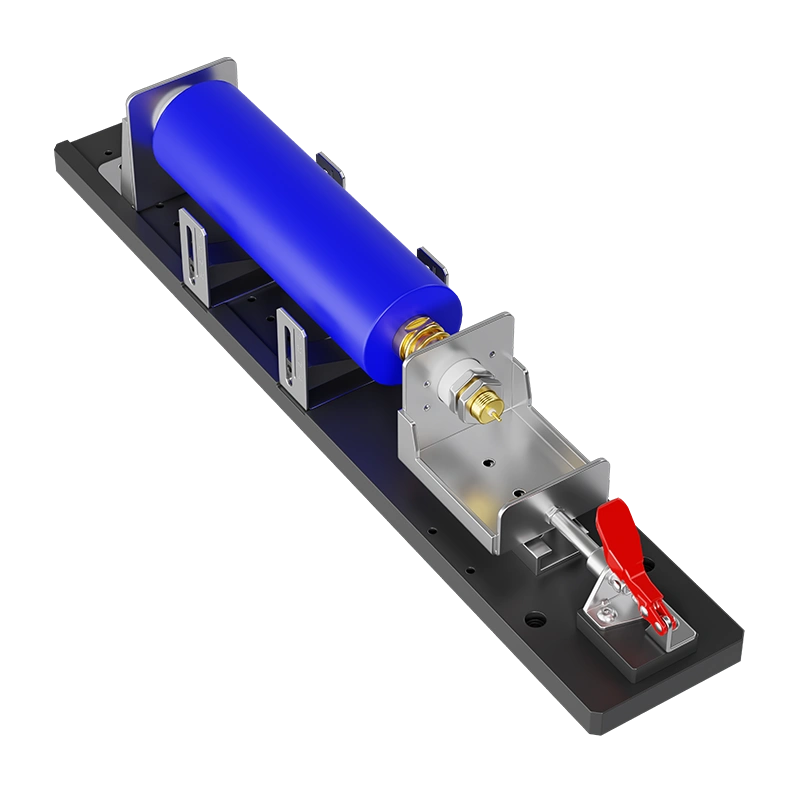

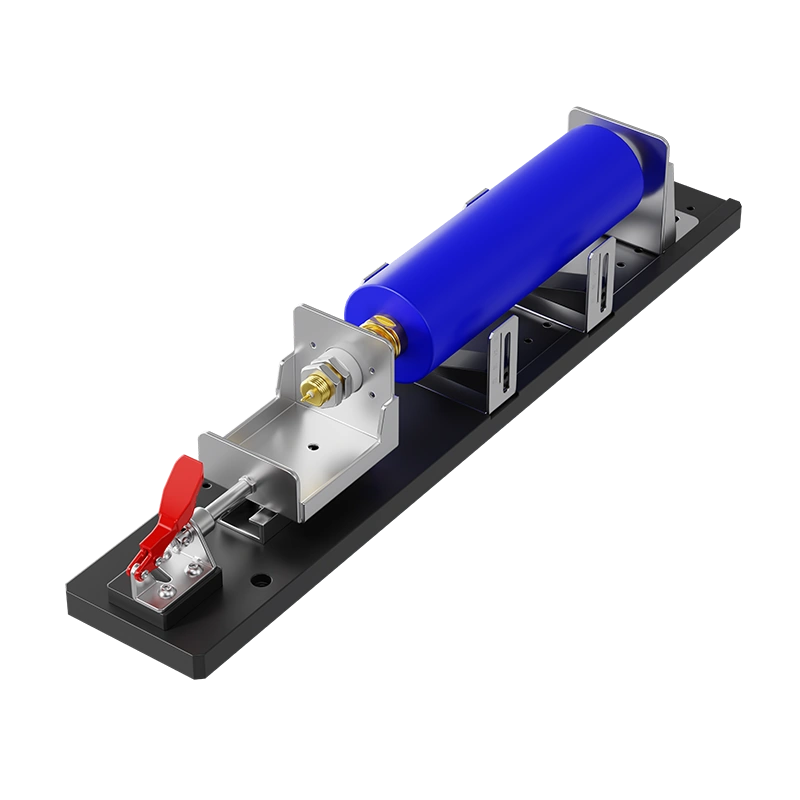

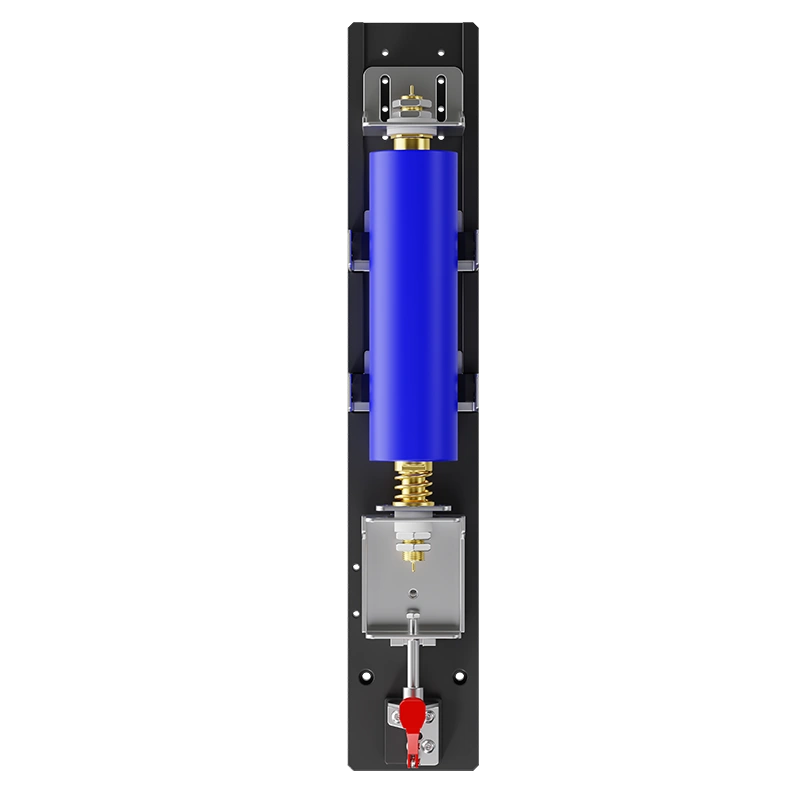

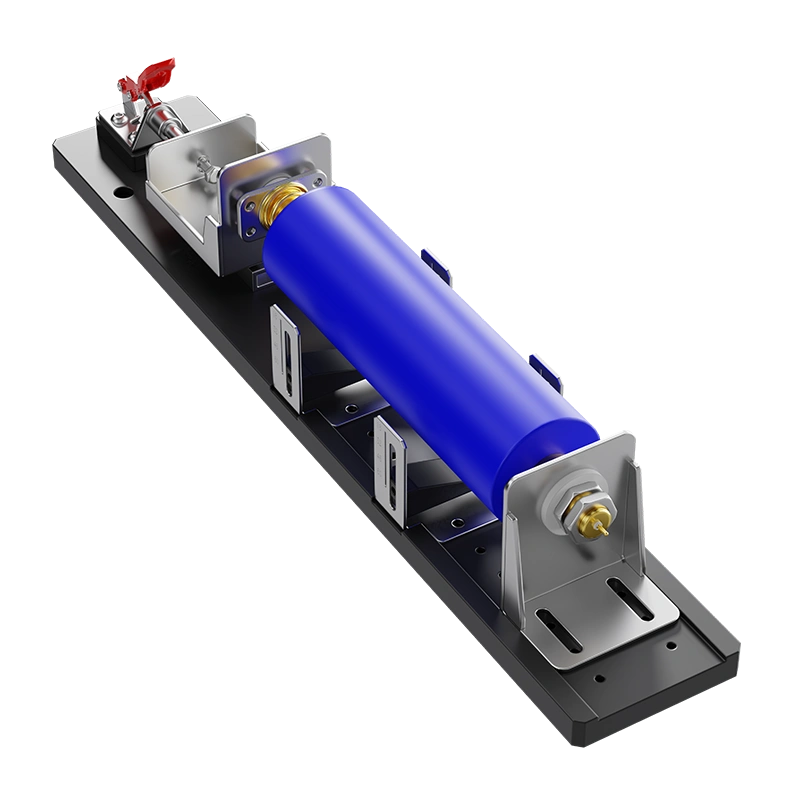

Single-channel cylindrical cell fixture features adjustable diameter and height to accommodate cylindrical cells with diameters ranging from 18mm to 60mm and heights ranging from 65mm to 160mm. It can be mounted on battery racks and placed inside temperature chambers.

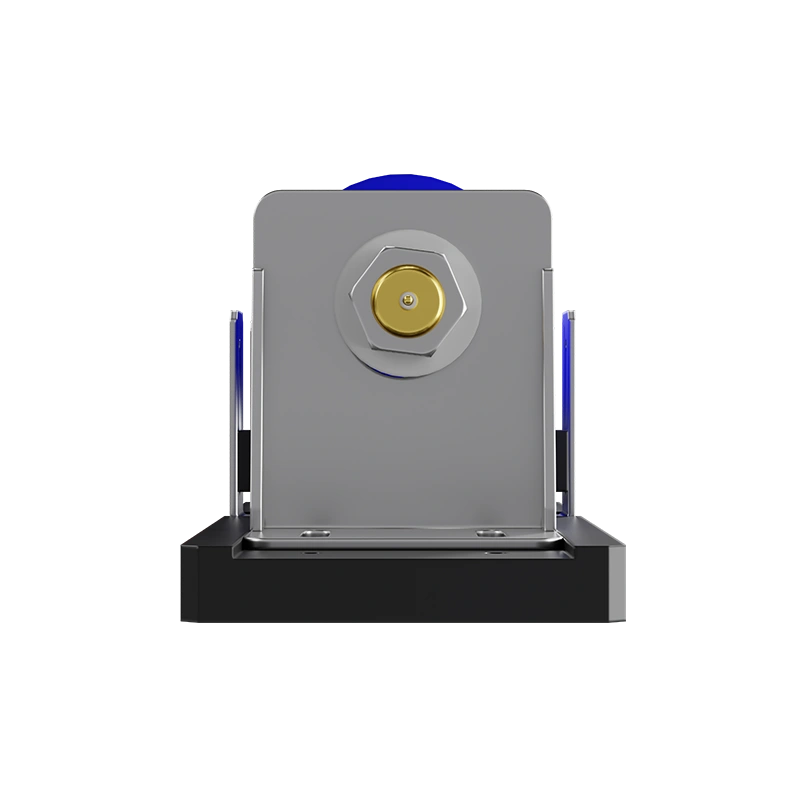

The fixture supports customizable maximum withstand current with an upper limit of 300A. The positive and negative terminals are installed at both ends of the cell.
Adopting a four-wire connection design, this fixture eliminates measurement errors caused by lead resistance and contact resistance, enabling stable and reliable test results.
| Equipment name | Single-channel cylindrical cell fixture |
|---|---|
| Model | PTF-ZJ-Y2-150A-1CH-D1860-H65160 |
| Current | Max. 600A |
| Battery size | Diameter：18–60mm Height65–160 mm |
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
