Suitable for testing cylindrical cells with diameters ranging from 18mm to 60mm and heights ranging from 65mm to 100mm.
Features
Tech Specs
Resources

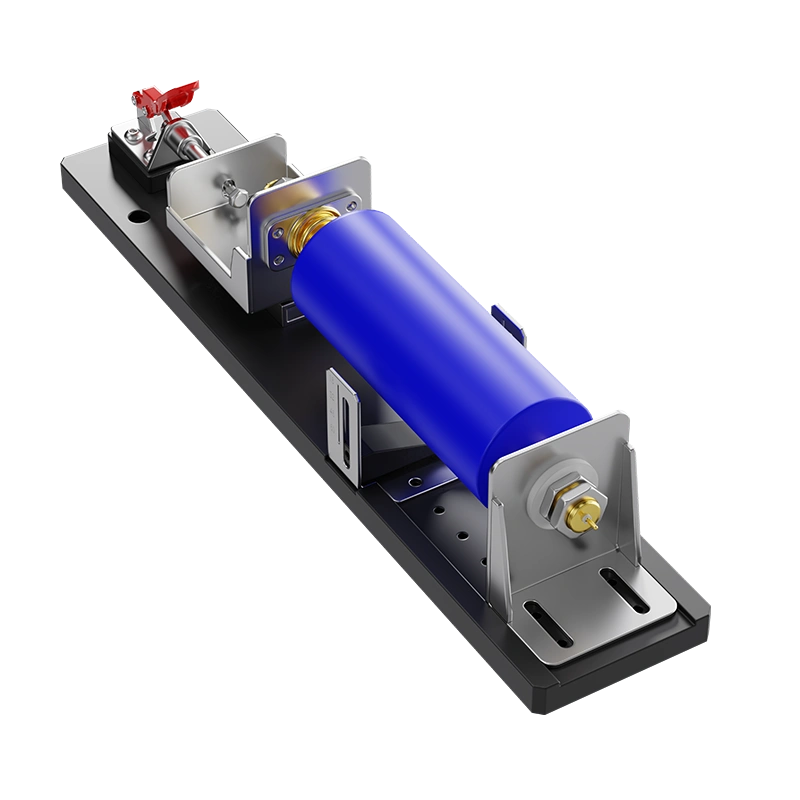

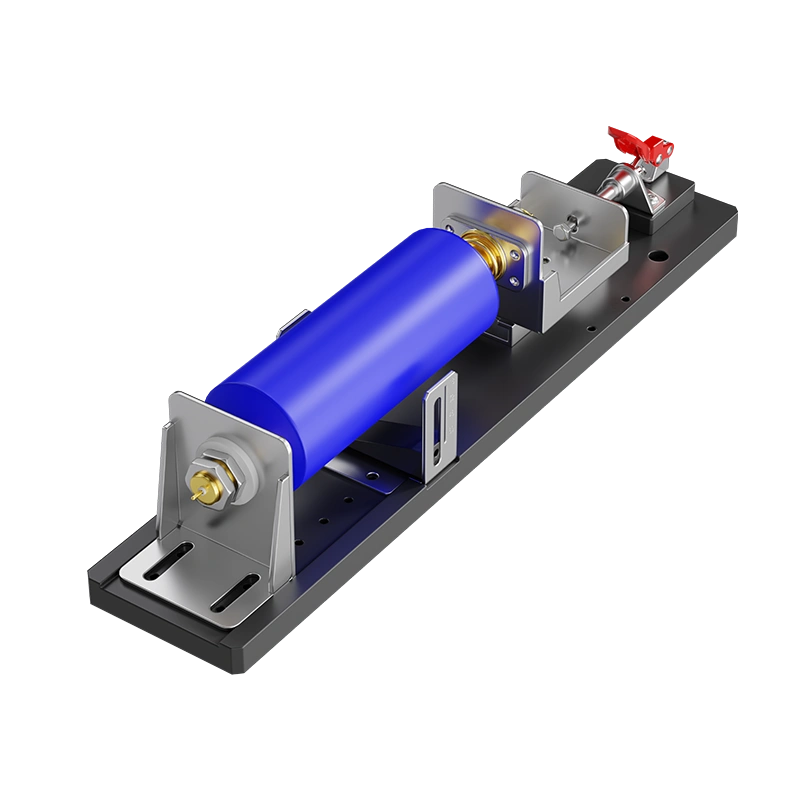

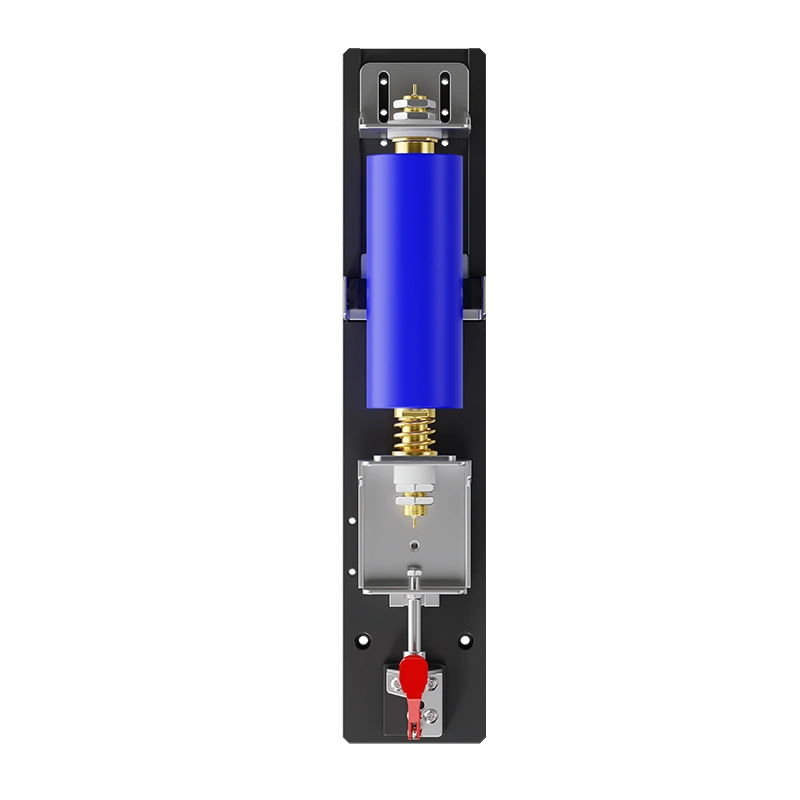

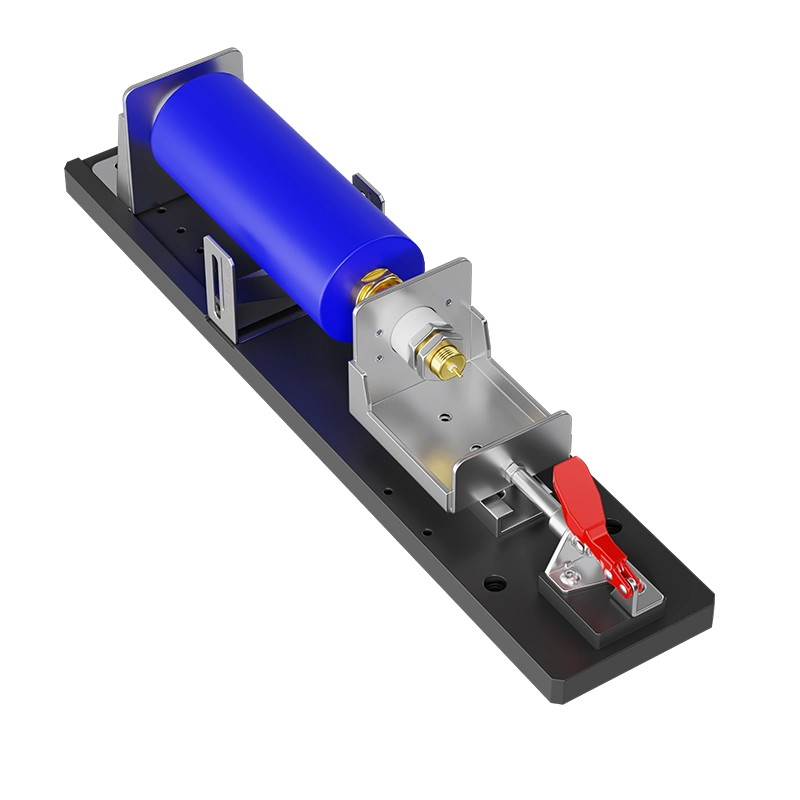

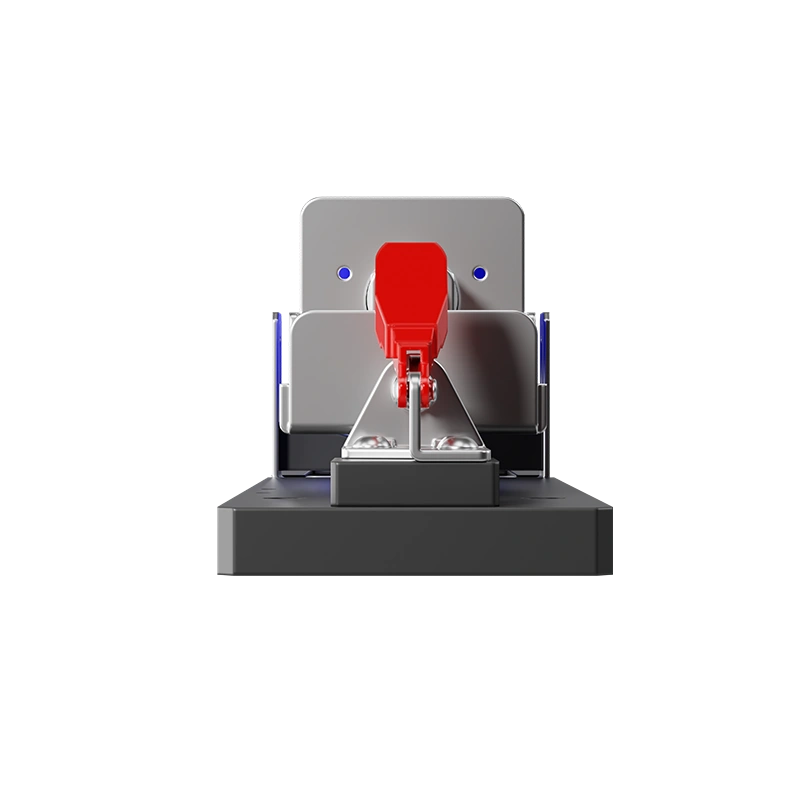

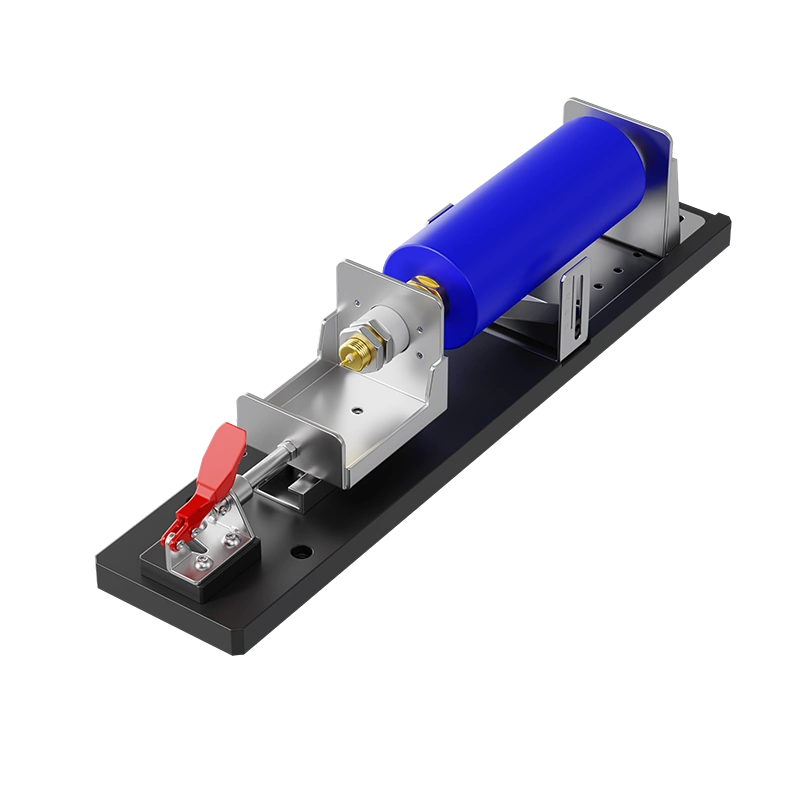

Single-channel cylindrical cell fixture supports adjustable diameter and height, compatible with cylindrical cells ranging from 18mm to 60mm in diameter and 65mm to 100mm in height. It can be deployed on battery racks and inside temperature chambers.

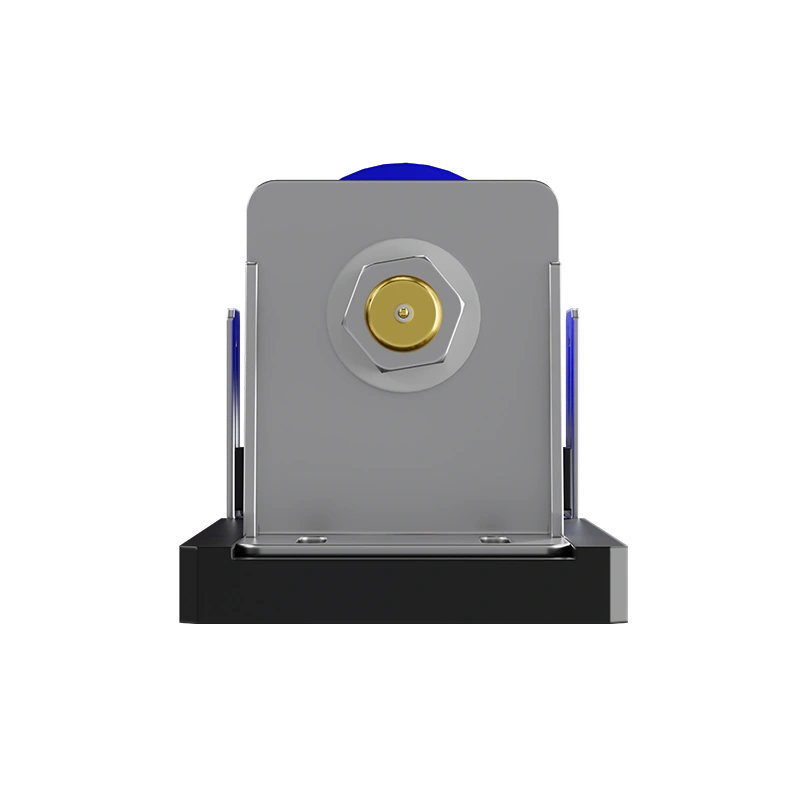

The maximum withstand current of the fixture is configurable, with a peak value of 300A. The positive and negative terminals are arranged at both ends of the cell.
The fixture adopts a four-wire connection design, which eliminates the adverse impacts of wire resistance and contact resistance on measurement and guarantees dependable test results.
| Equipment name | Single-channel cylindrical cell fixture |
|---|---|
| Model | PTF-ZJ-Y2-150A-1CH-D1860-H65100 |
| Current | Max. 600A |
| Battery size | Diameter：18–60mm Height：65–100mm |
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.02% F.S.
High-Frequency Sampling: 200Hz
Current Conversion Time: ≤2ms
Current Response Time: ≤1ms
Minimum Pulse Width: 10ms
Feedback Efficiency (Max): 75%
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤500μs
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
