For Same-Side Positive and Negative Terminal Cylindrical Battery Testing.
Features
Tech Specs
Designed for cylindrical batteries with terminals on the same side, this clamp facilitates charge/discharge and voltage/capacitance testing. It operates standalone or within a temperature chamber, adaptable for diverse testing conditions. Adjustable probes cater to various battery sizes, with a current range up to 30A, ensuring extensive applicability and accuracy.
Length: 3.1"-7.9" (80-200mm)
Diameter: 1.8" (46mm)

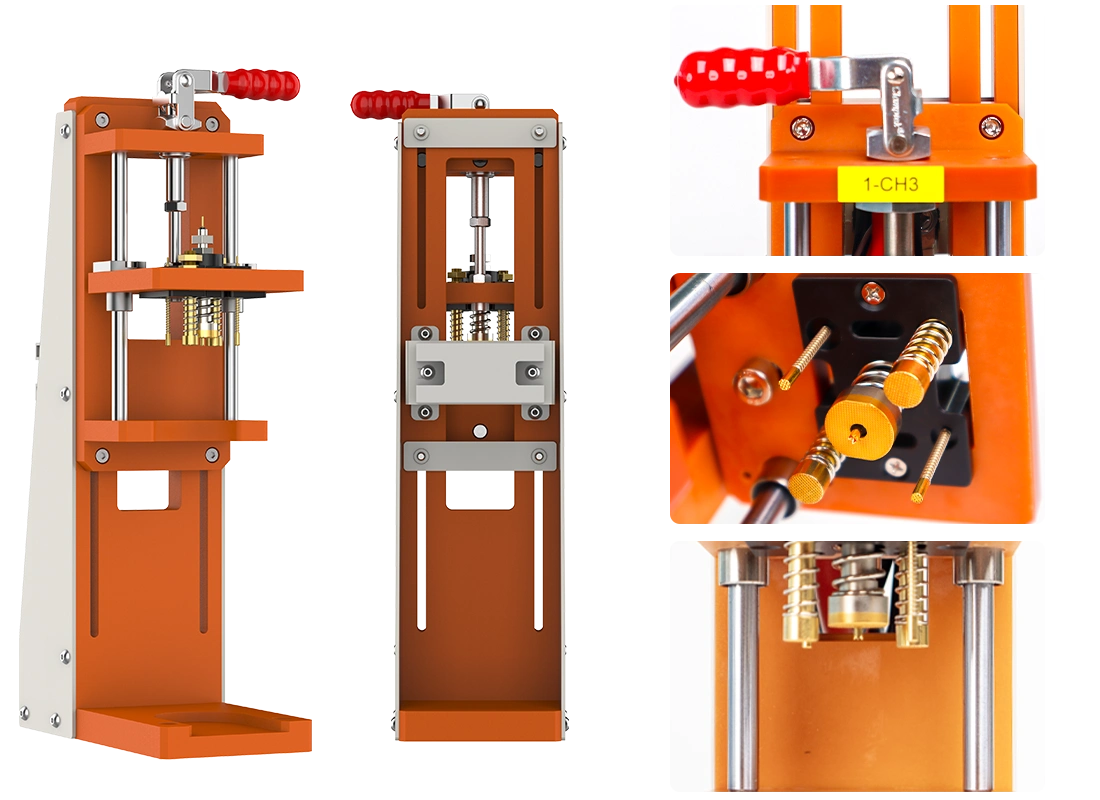

The multi-point probing system ensures even current distribution and contact, enhancing test efficiency and reliability for accurate battery performance evaluation.

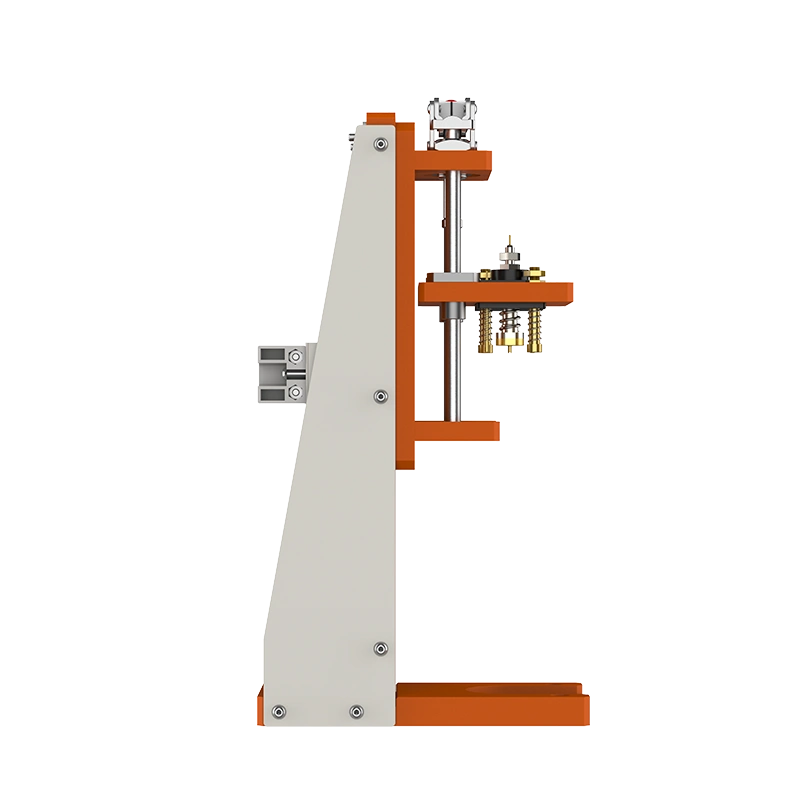

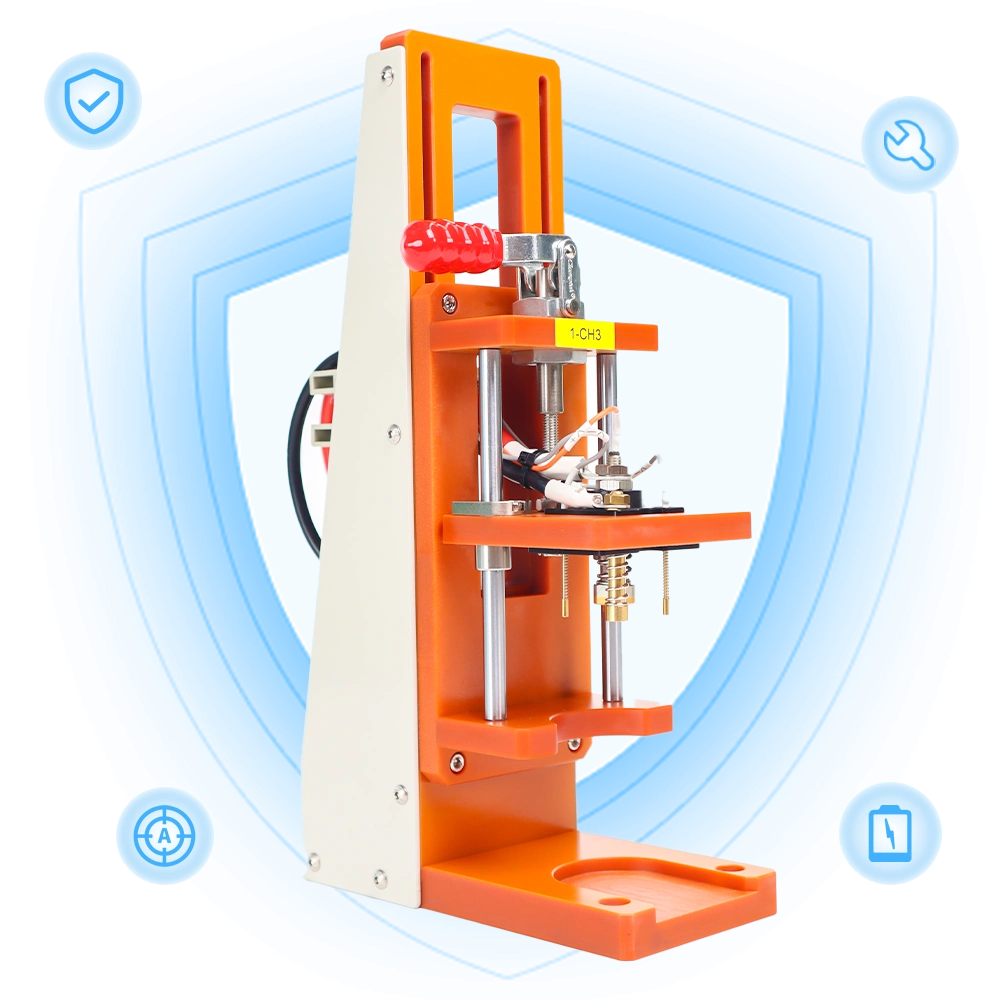

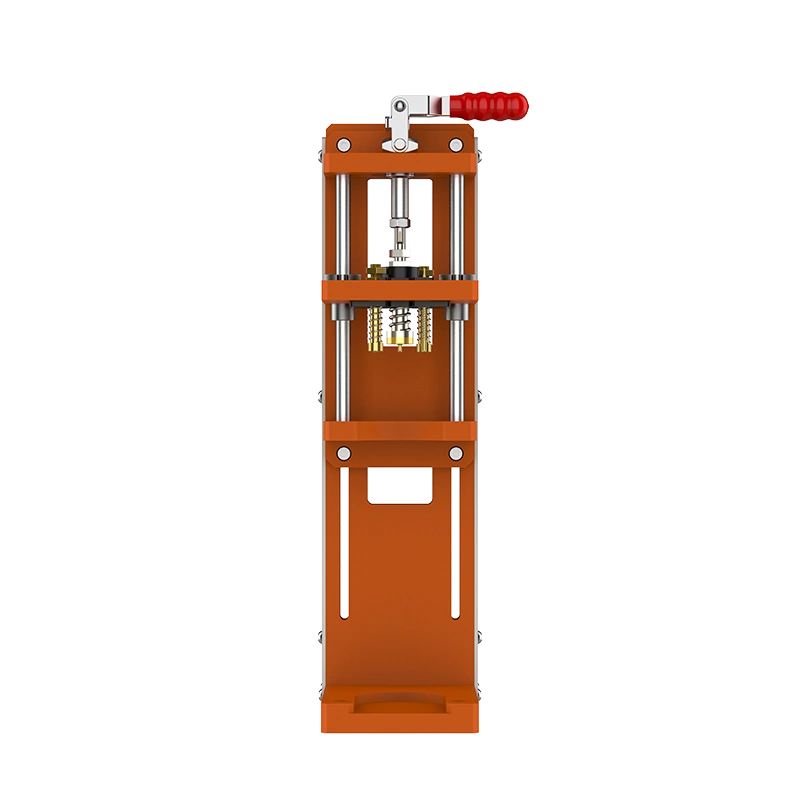

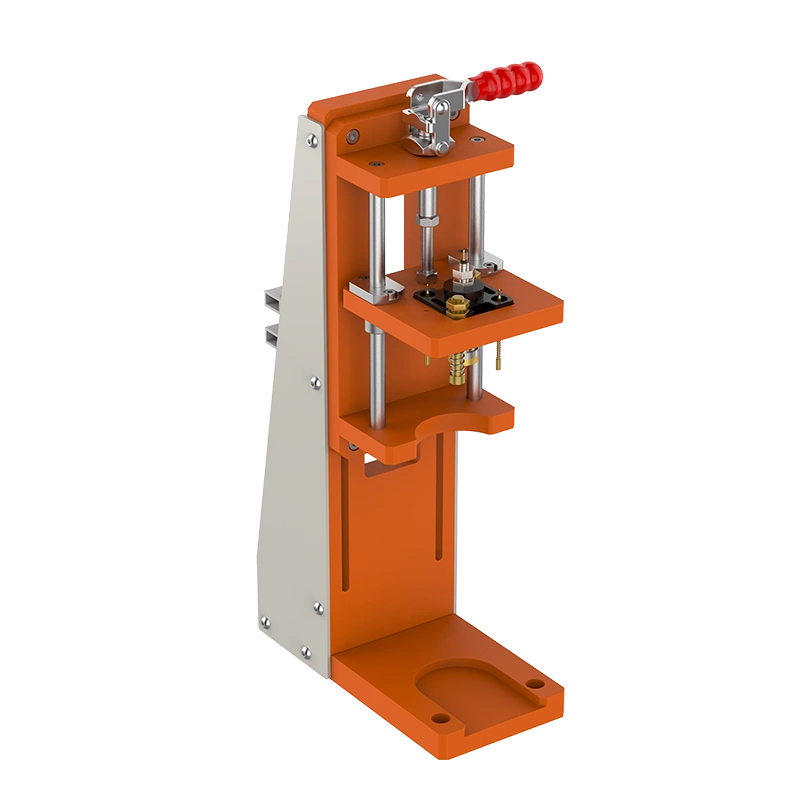

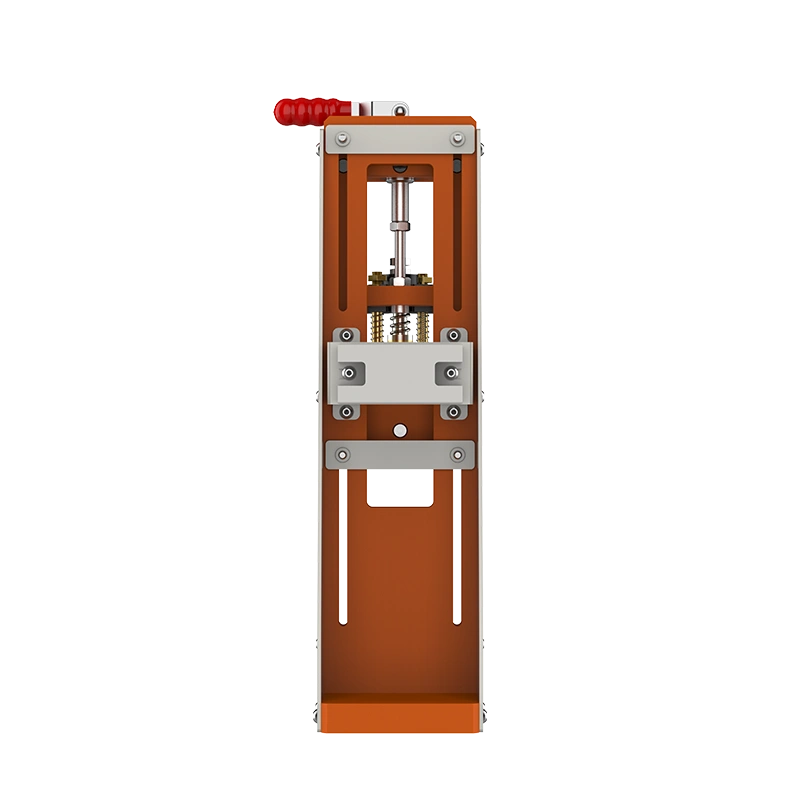

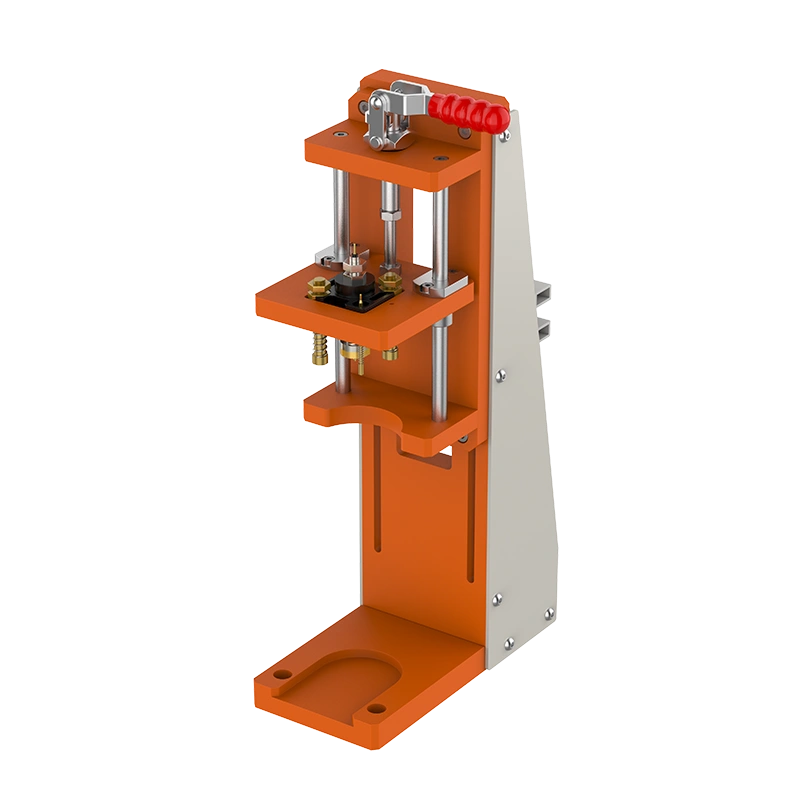

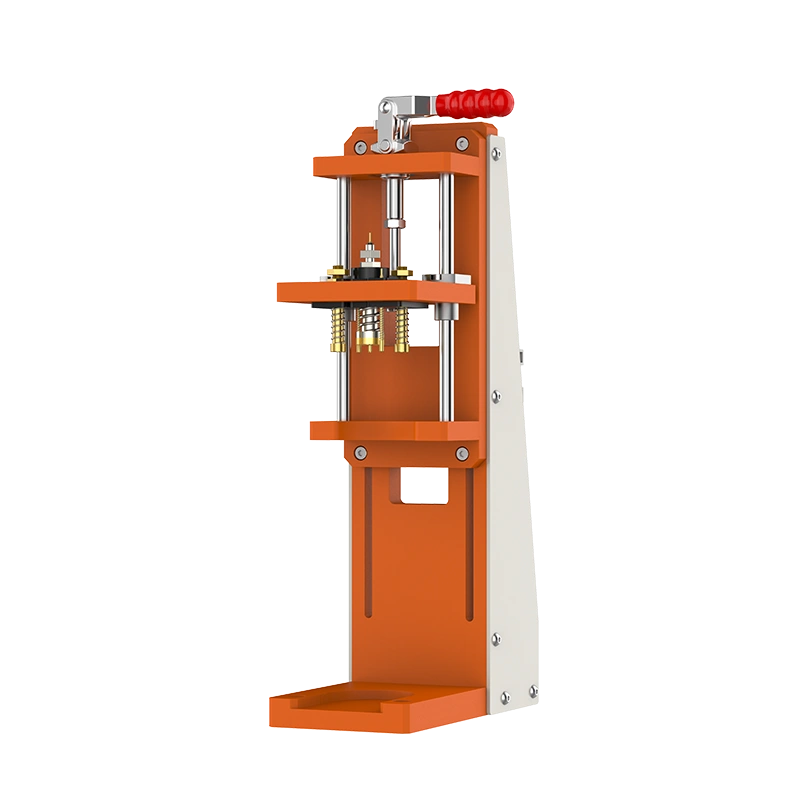

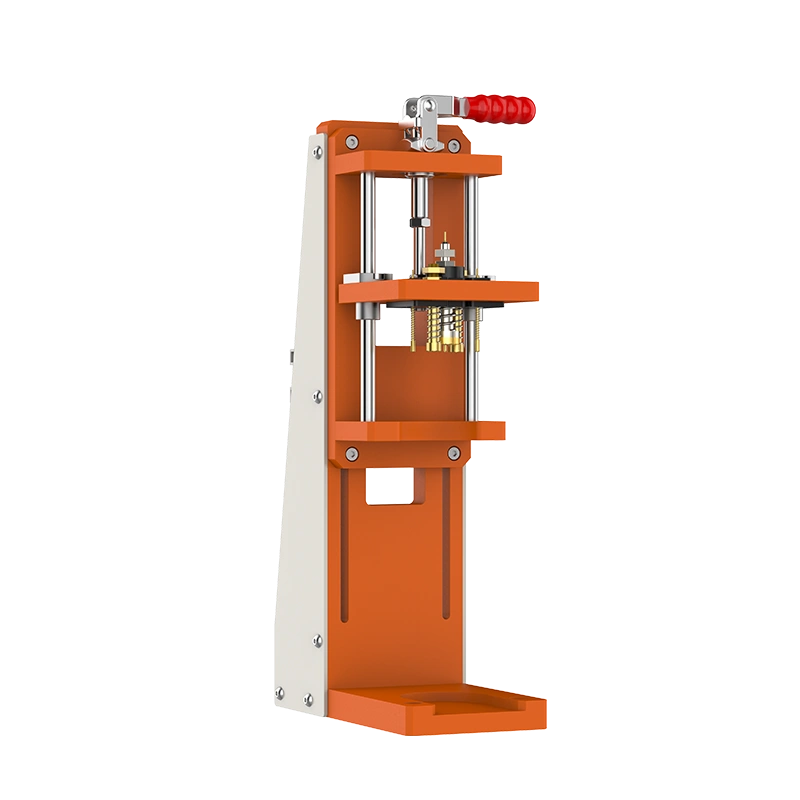

PTF-Y1-ZJ-60A-1CH-L200 clamp integrates an elbow joint for swift battery engagement and disengagement, simplifying the procedure. The vertical contact system minimizes friction, safeguarding the battery surface for precise measurements. A central block and bottom groove secure the battery against movement, maintaining test integrity.
| Equipment name | 60A Cylindrical Cell Toggle Clamp |
|---|---|
| Current | 60A |
| Wire Terminal | M5 |
| Battery Size | Length: 3.1"-7.9" (80-200mm)
Diameter: 1.8" (46mm) |
| External Size | 3.3"×6.8"×15.4"
84mm×172mm×390mm |
| Weight | 2.5kg |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：1000Hz
● Current Response Time：≤30μs
● CV Testing
● Type-C Power Port
● 6-Range Current Measurement
