For temperature chamber cylindrical battery testing, including charge/discharge, capacitance, and voltage measurements.
Features
Tech Specs

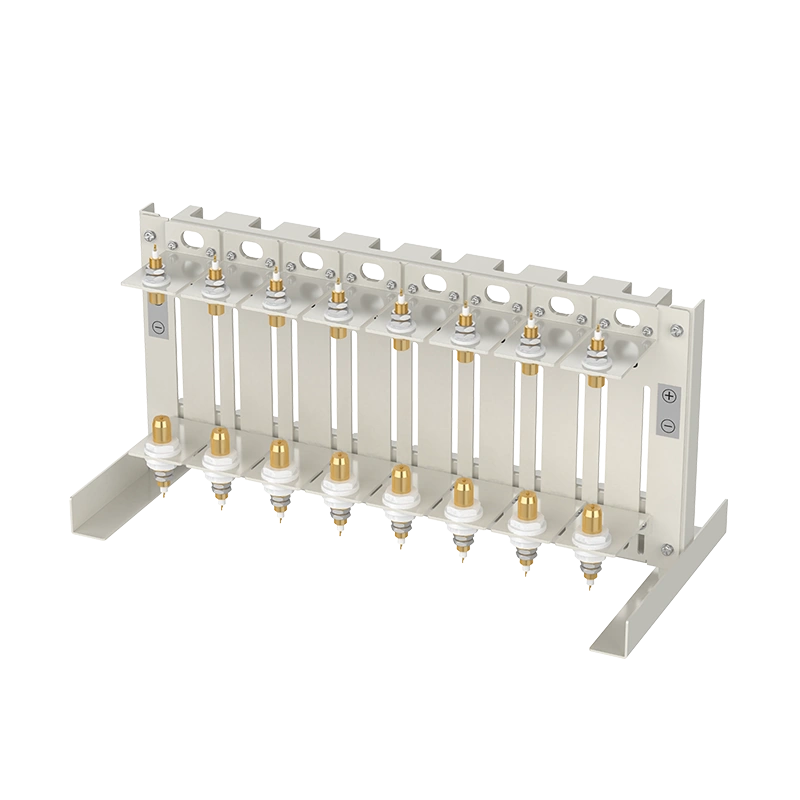

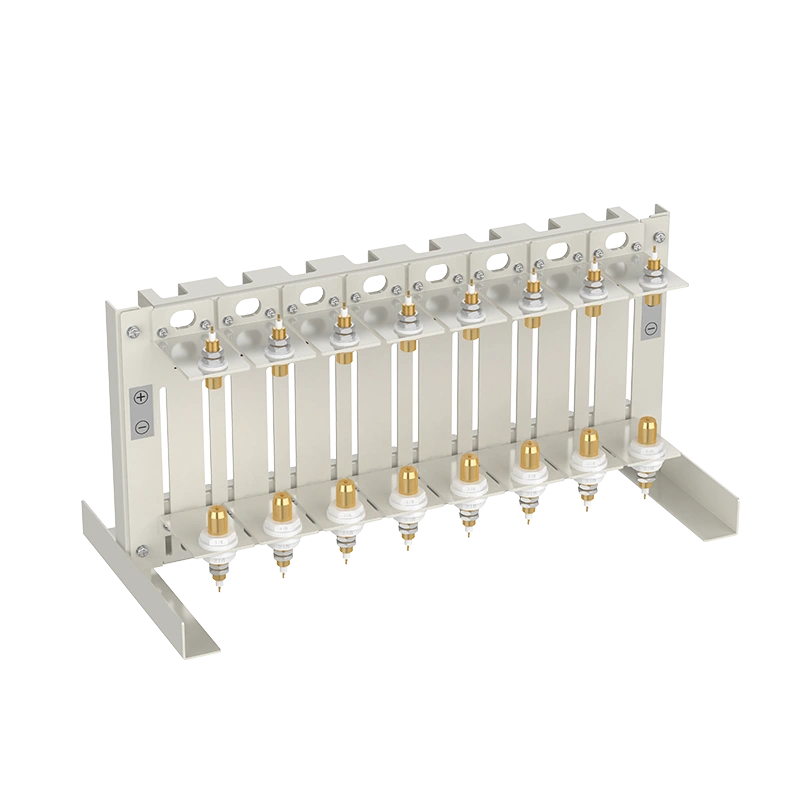

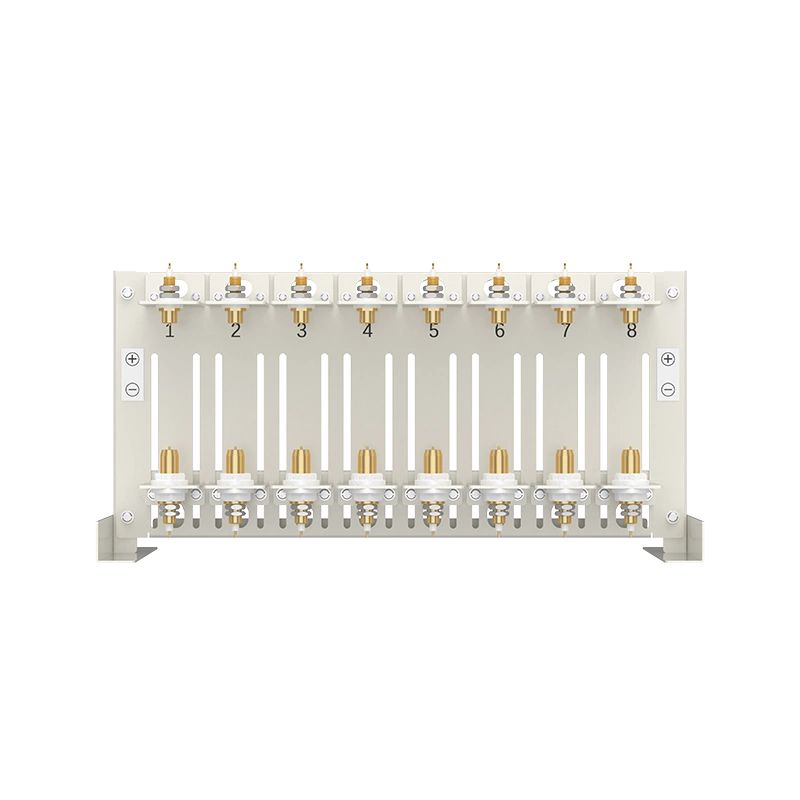

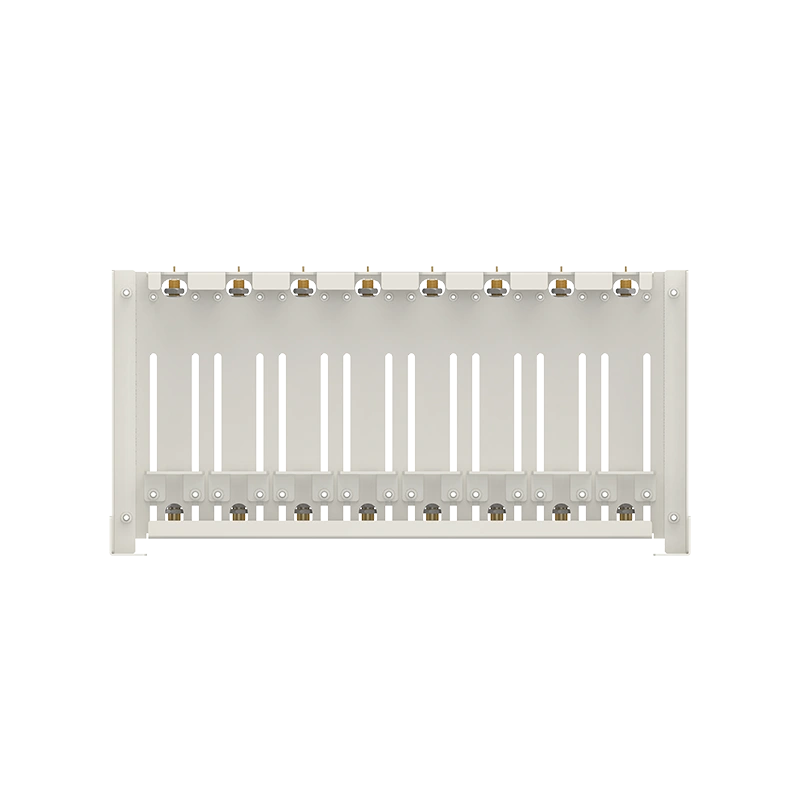

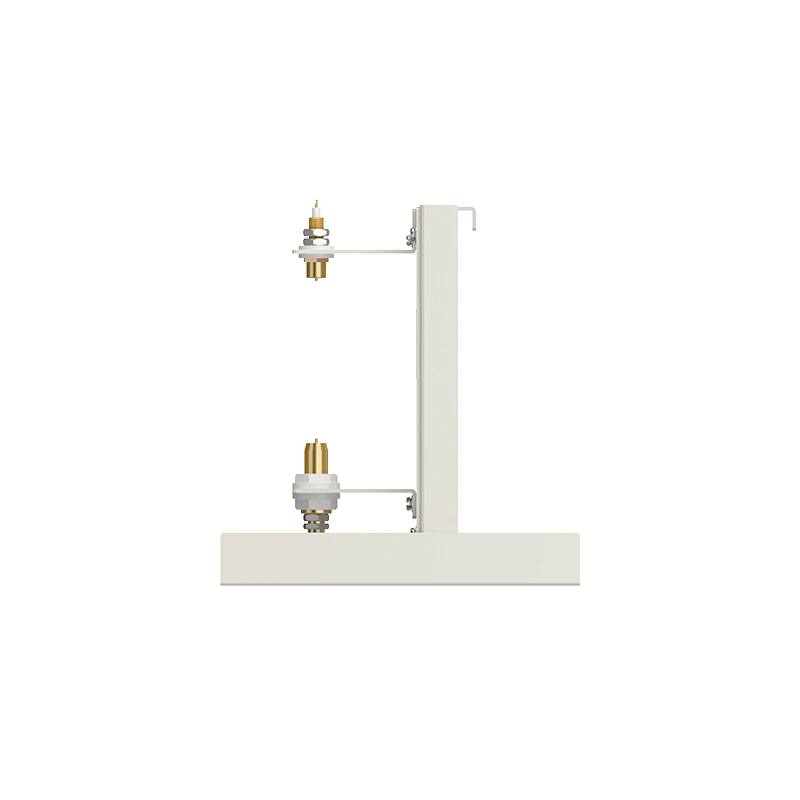

The lower probe design offers a broad adjustment range, ensuring adaptability to various battery size specifications. It provides customized solutions for diverse testing requirements, thereby enhancing the accuracy and reliability of test results.
Length: 0"-3.9" (0-100mm)
Diameter: 0.2"-1.6" (5-40mm)

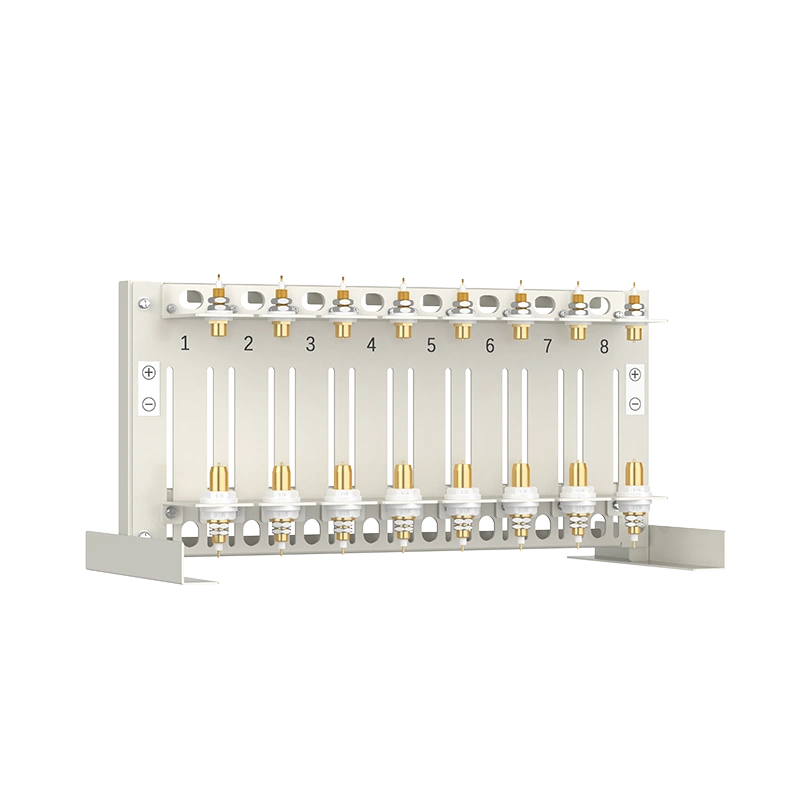

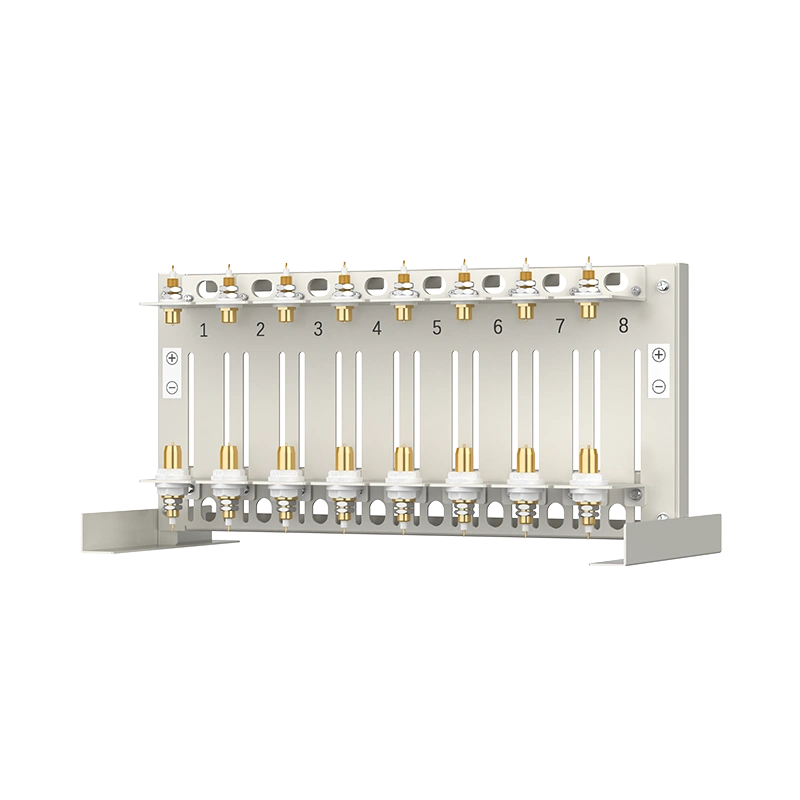

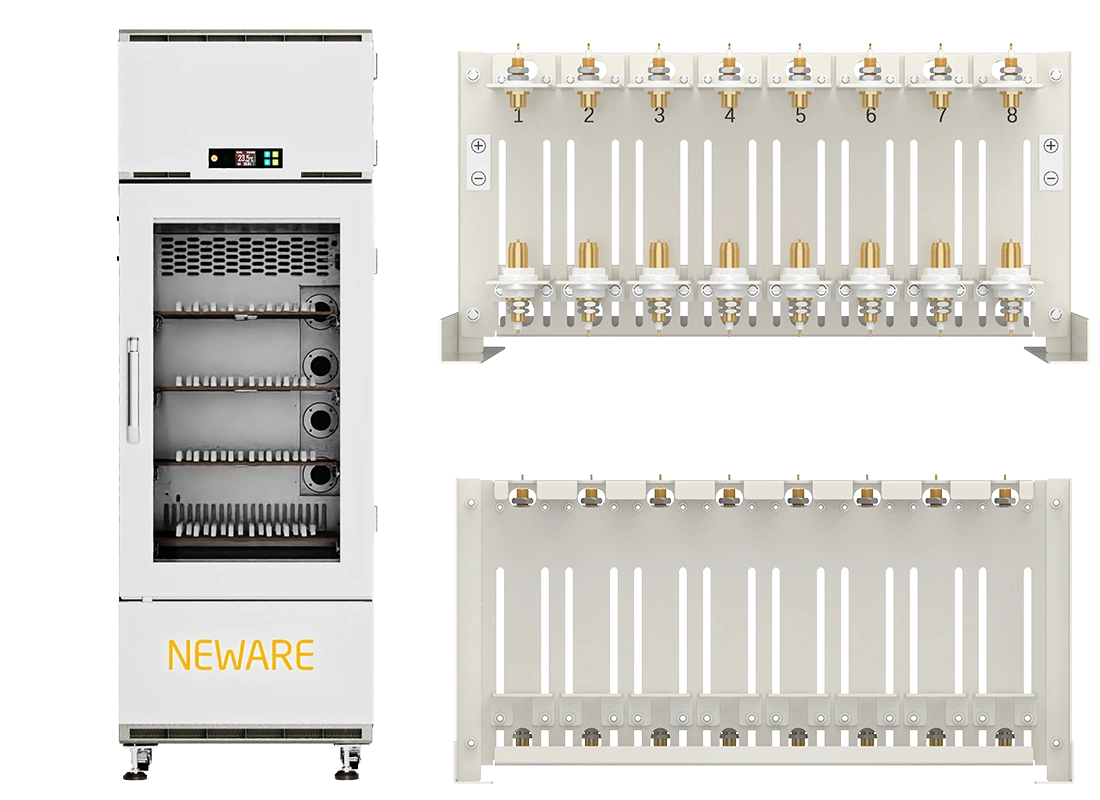

8 independent test channels support test currents up to 100A, with custom services available to meet the testing needs of various cylindrical battery specifications. Use within a temperature chamber to achieve efficient batch testing and temperature performance testing of batteries.

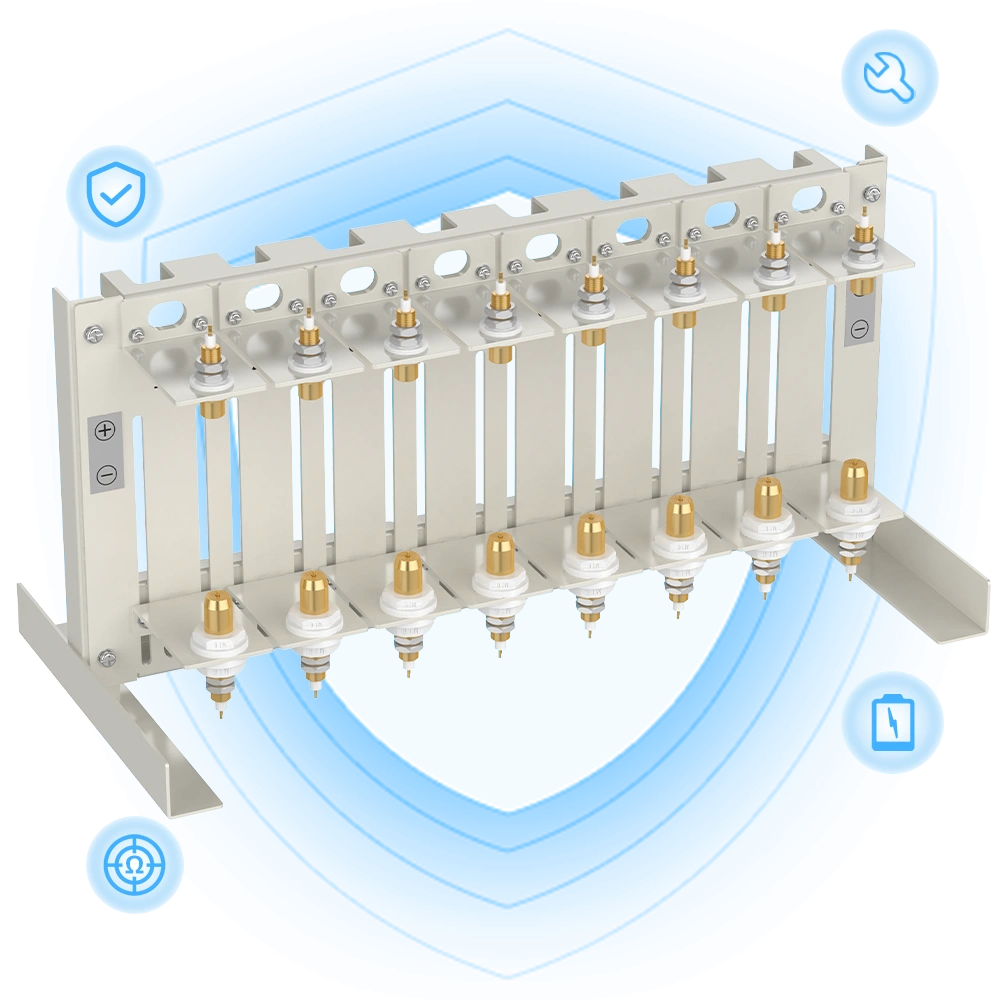

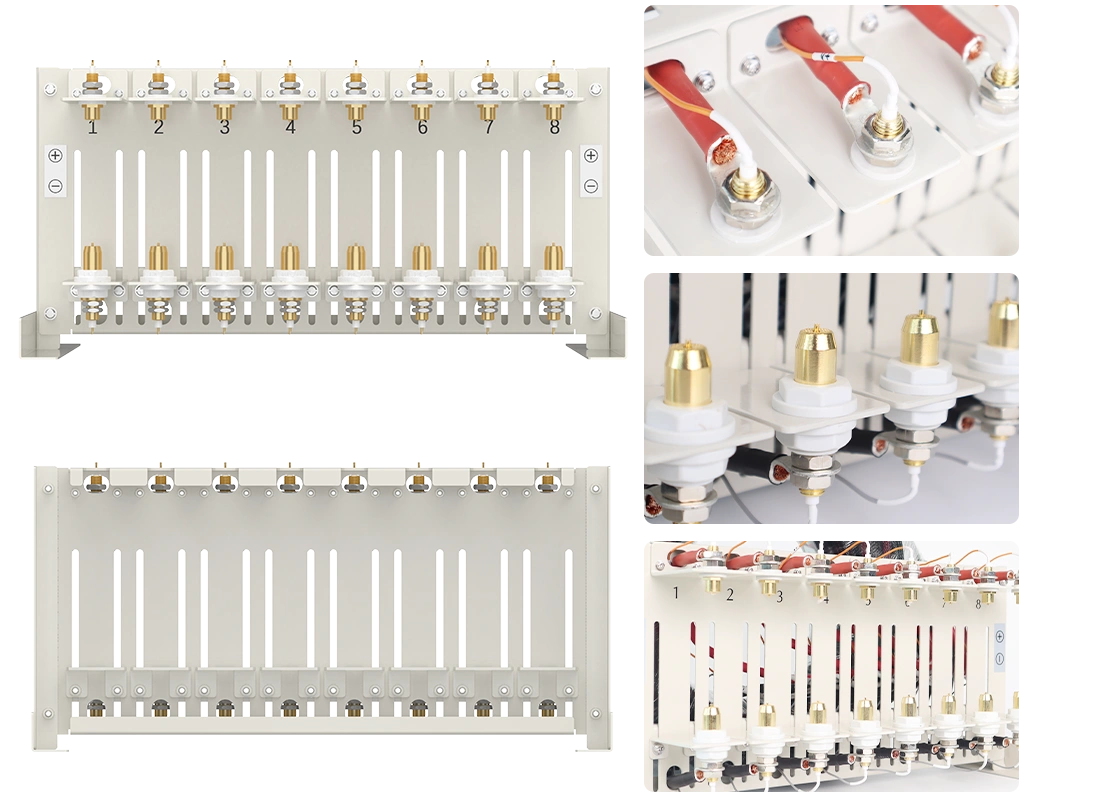

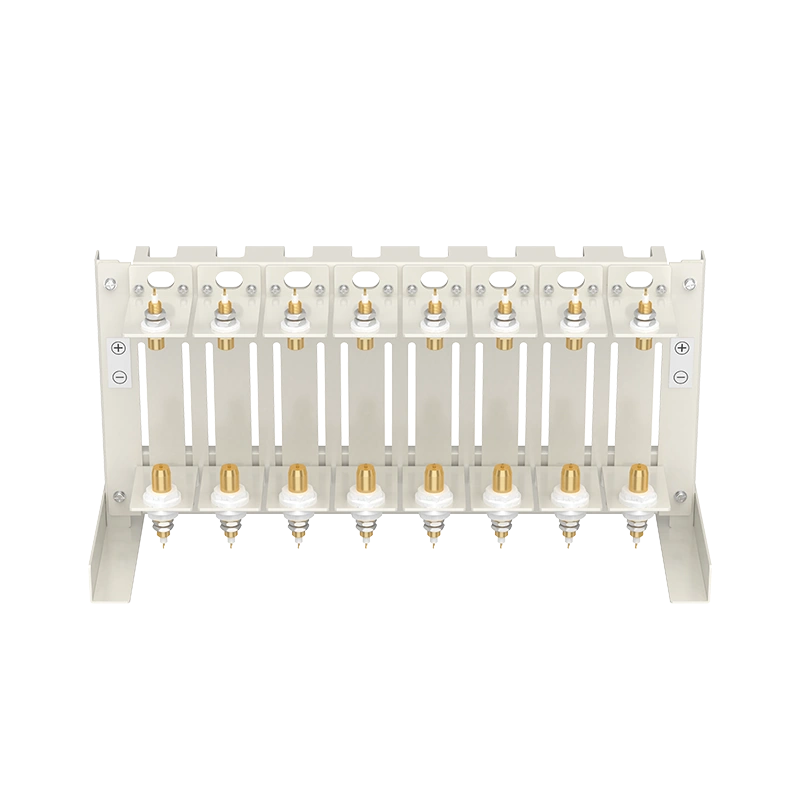

The probes, crafted from high-quality metal, ensure efficient current transfer during battery testing, improving the precision of the tests. Uniform contact of the positive and negative poles significantly enhances the accuracy of battery testing, delivering more reliable and precise test data for users.
| Equipment name | 60A Temperature Chamber Cylindrical Cell Clamp Holder |
|---|---|
| Current | 100A |
| Prode Model | P103-12-TZ-LK-TDU-100A |
| Wire Terminal | M8 |
| Battery Size | Length: 0"-3.9" (0-100mm)
Diameter: 0.2"-1.6" (5-40mm) |
| External Size | 15.3"×7.1"×7.5"
(388mm×180mm×190mm) |
| Weight | 3.0kg |
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤30μs
CV Testing
Type-C Power Port
6-Range Current Measurement
