For cylindrical battery charging and discharging, capacitance and voltage testing.
Features
Tech Specs
Resources

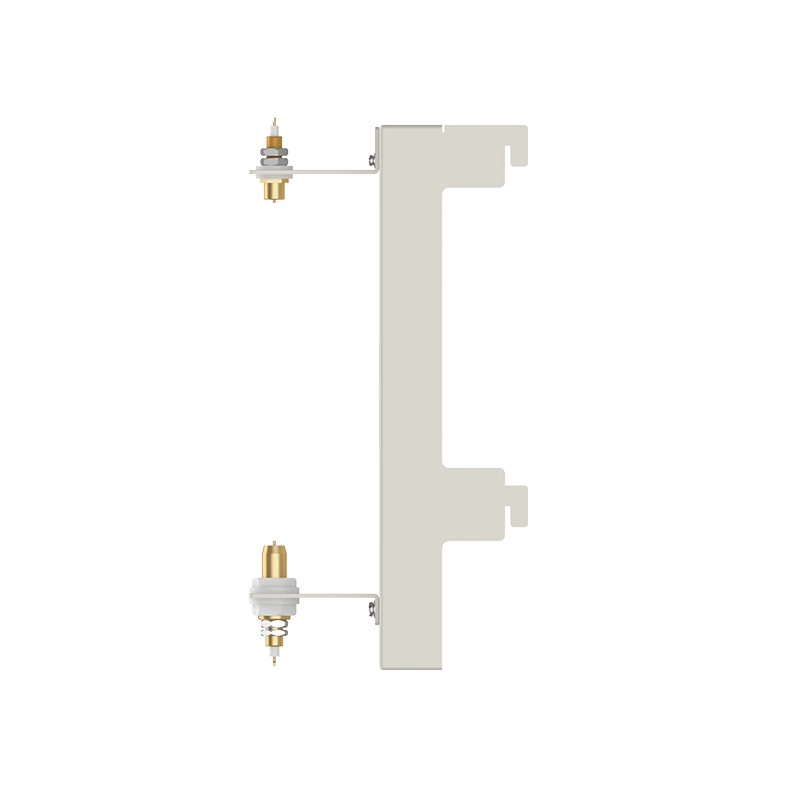

The lower probe design offers a wide adjustment range, ensuring adaptability to various battery size specifications. It provides customized solutions for diverse testing requirements, thereby optimizing the accuracy and reliability of test results.
Length: 2.0"-6.3" (50-160mm)
Diameter: 0.2"-2.0" (5-50mm)

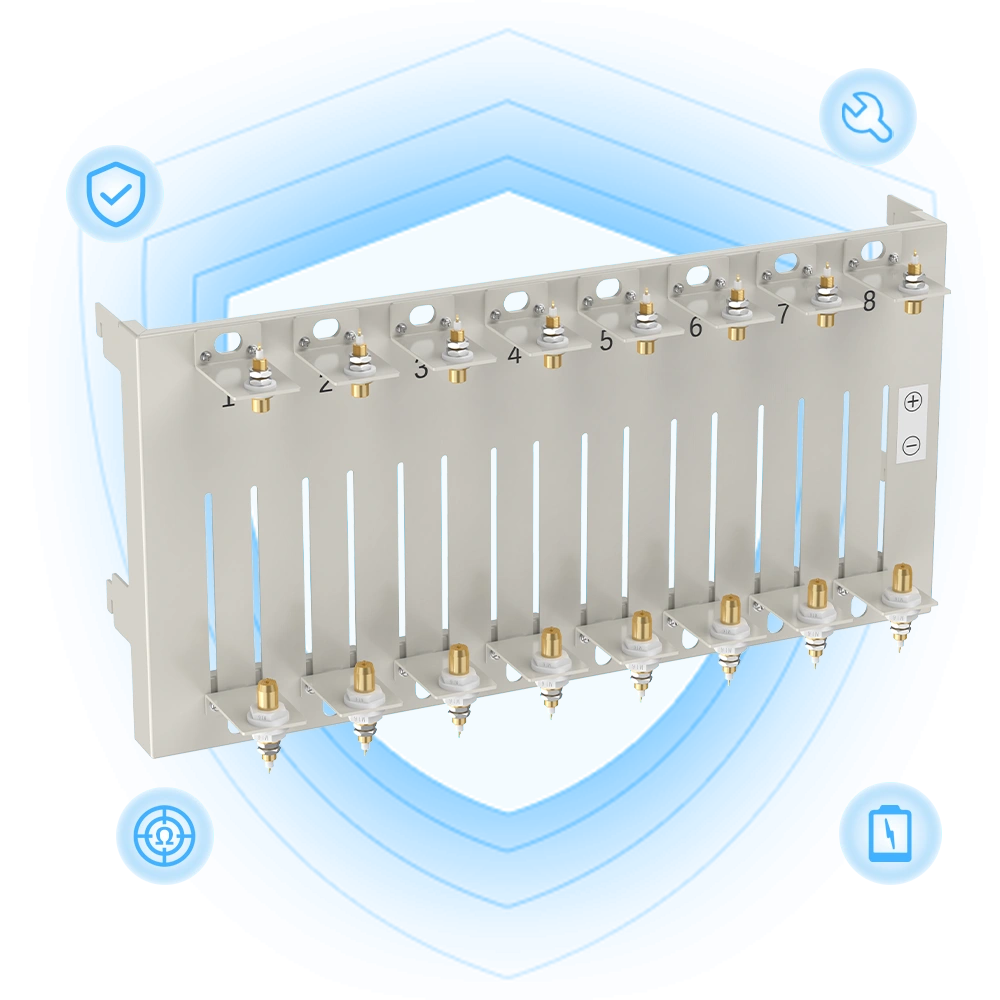

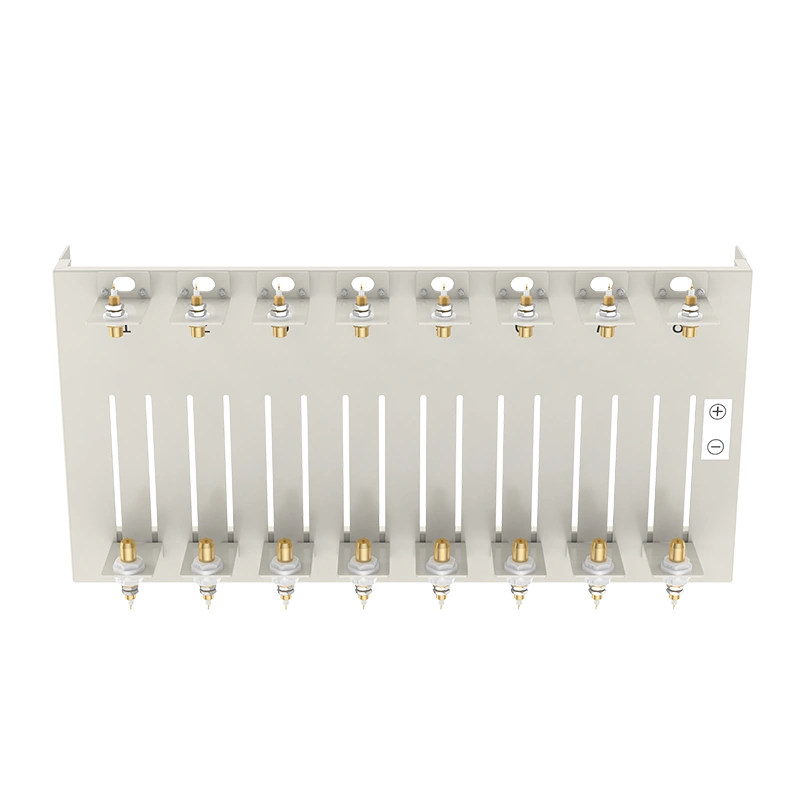

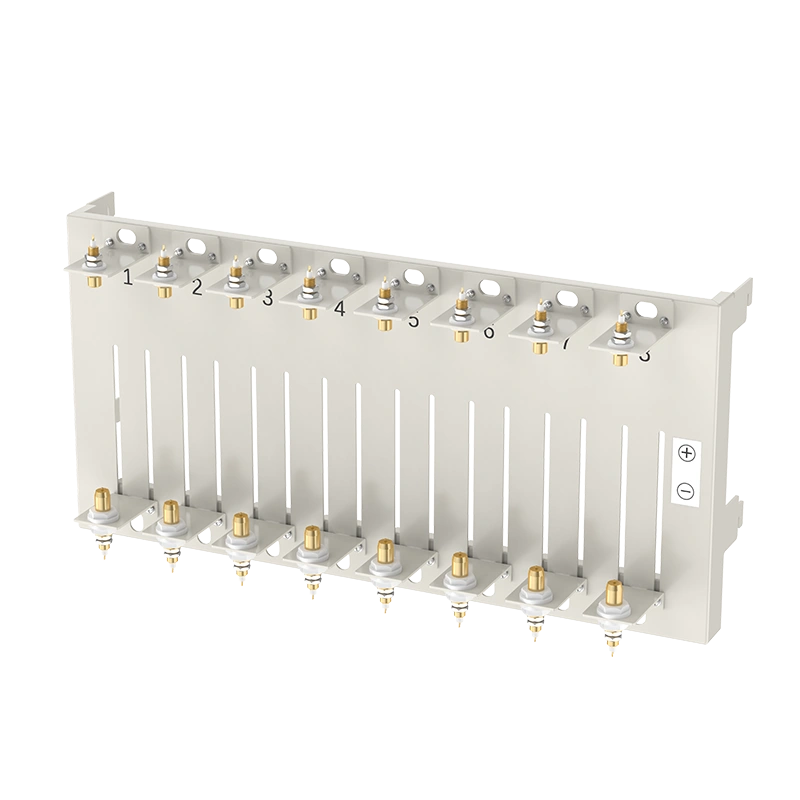

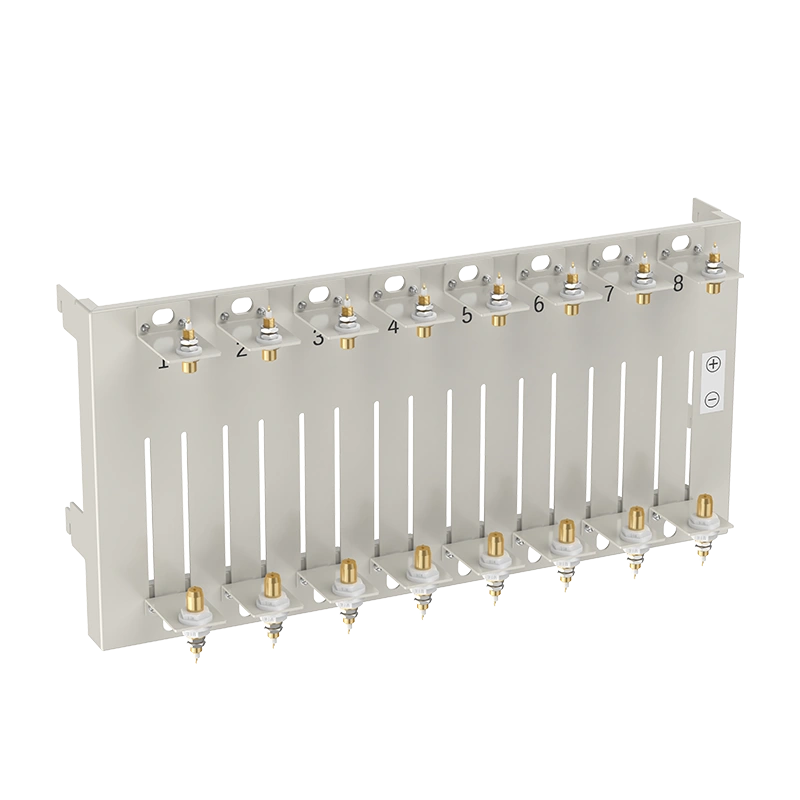

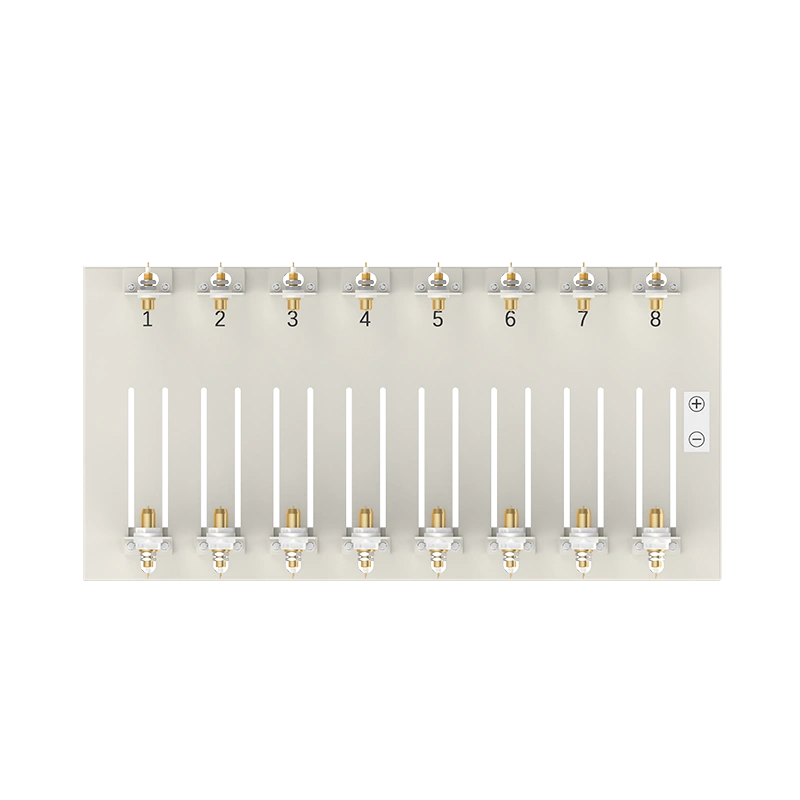

This system features 8 independent test channels, supporting test currents up to 30A, with custom services available to meet the testing needs of various cylindrical battery specifications. The suspended gantry design enables efficient batch testing of batteries, ensuring the stability and consistency of the testing process.

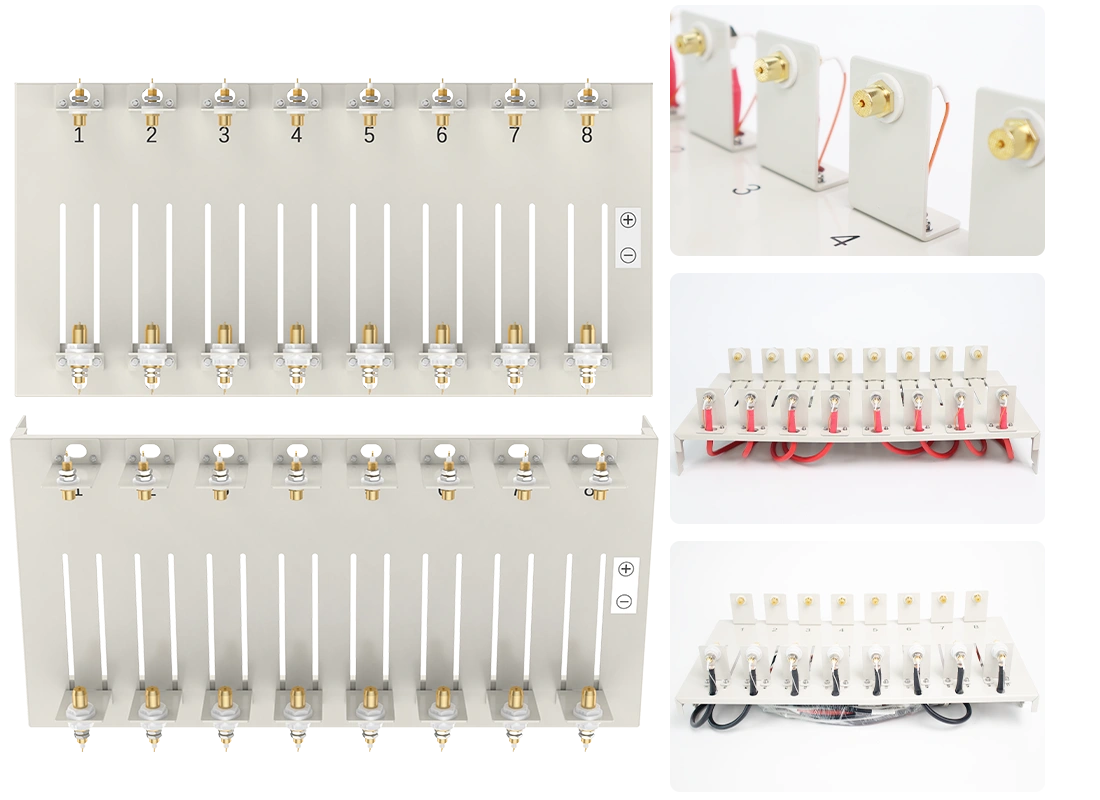

The probe's internal resistance is less than 1mΩ, ensuring efficient and stable current transmission. The gold-plated surface treatment not only enhances conductivity but also improves corrosion resistance, ensuring reliability for long-term use.
| Equipment name | 60A Cylindrical Cell Clamp Holder |
|---|---|
| Current | 60A |
| Prode Model | P103-12-TZ-LK-TDU-100A |
| Wire Terminal | M8 |
| Battery Size | Length: 2.0"-6.3" (50-160mm)
Diameter: 0.2"-2.0" (5-50mm) |
| External Size | 20.8"×5.2"×11.0"
(528mm×133mm×280mm) |
| Weight | 4.0kg |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-94°F≤75min
(20℃→-70℃≤75min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Volume: 25L
Number of Channels: 32CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤50min
(25℃→60℃≤50min)
Cooling Time: 77°F→59°F≤60min
(25℃→15℃≤60min)
