Designed for testing cylindrical battery cells in Constant Temperature Test Chamber.
* This product model has been updated. For details, please refer to Cylindrical Cell Clamps, or consult a sales expert.
Features
Tech Specs

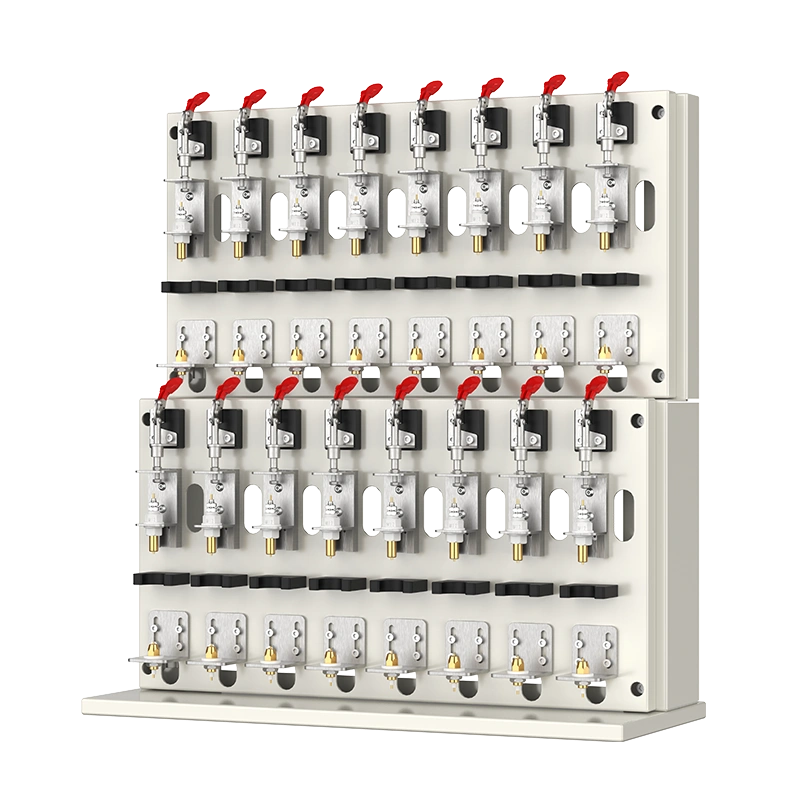

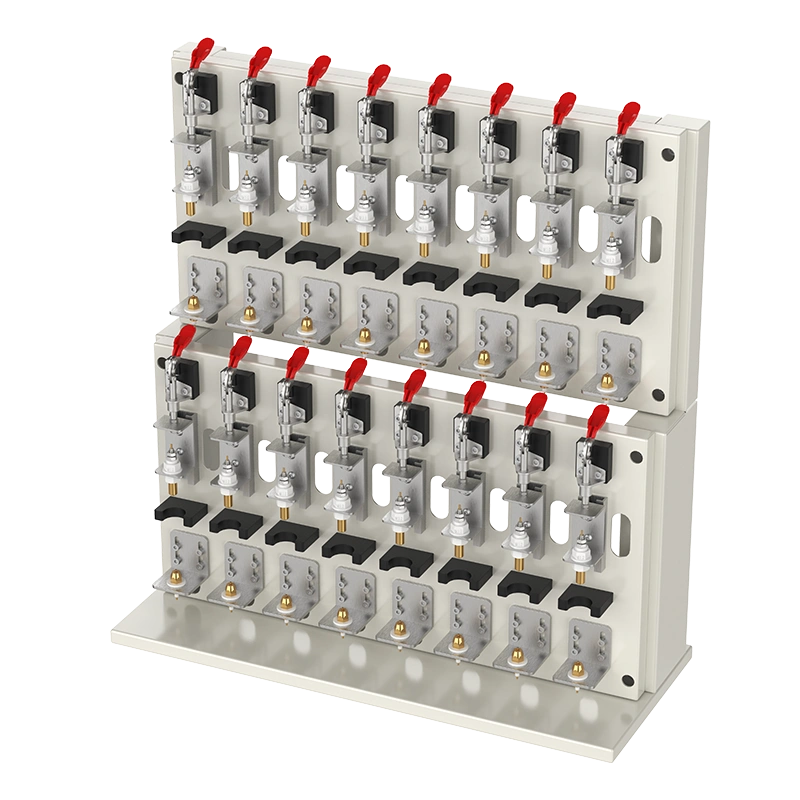

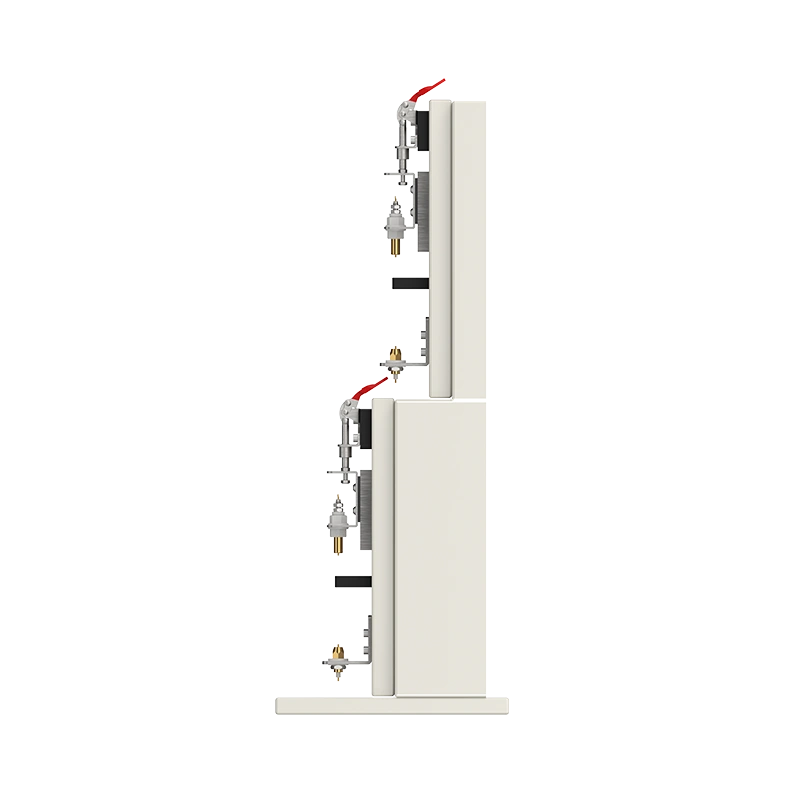

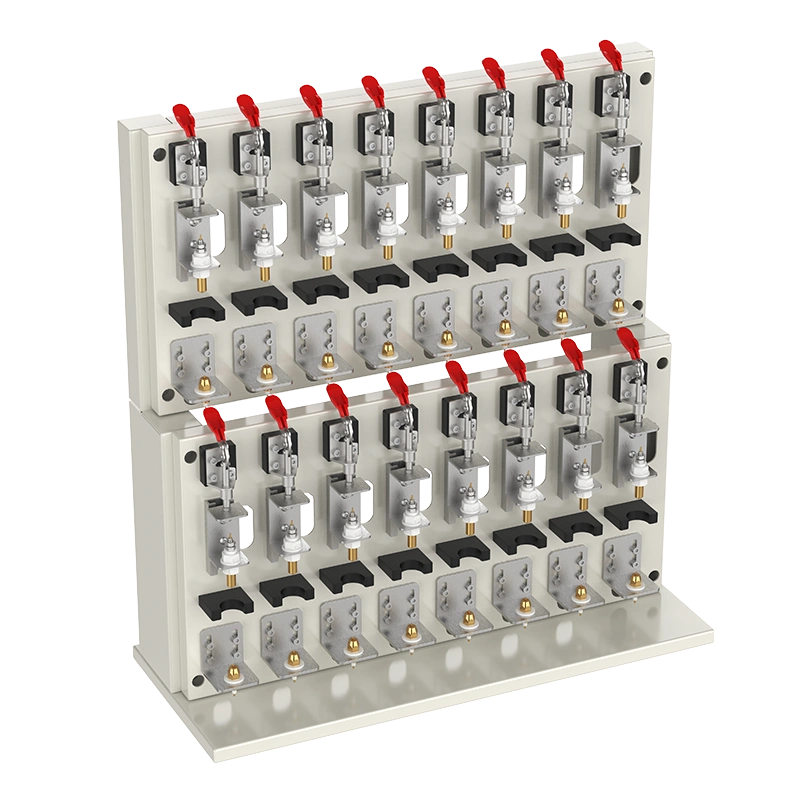

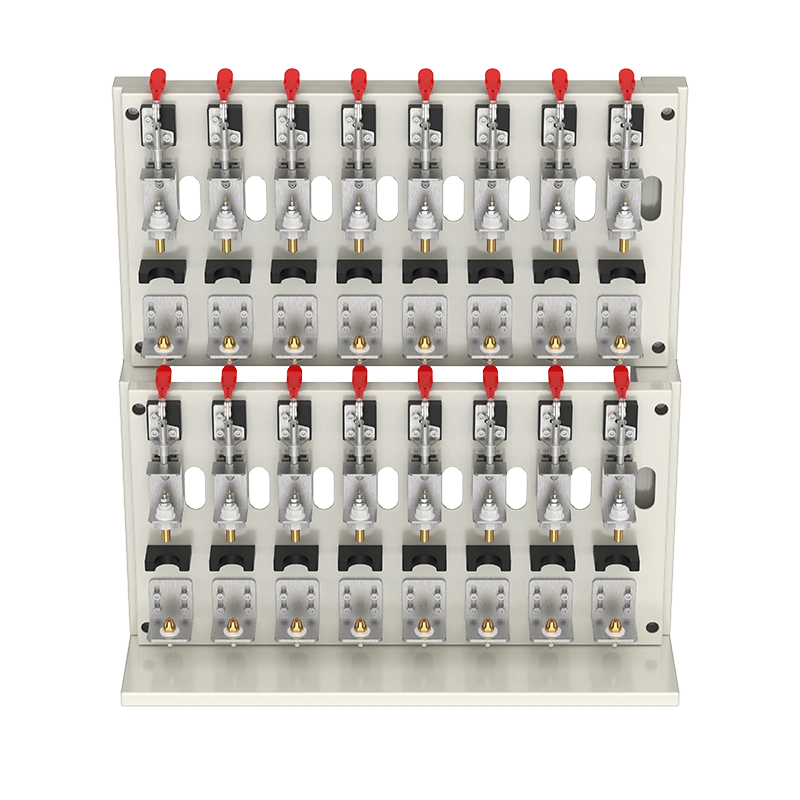

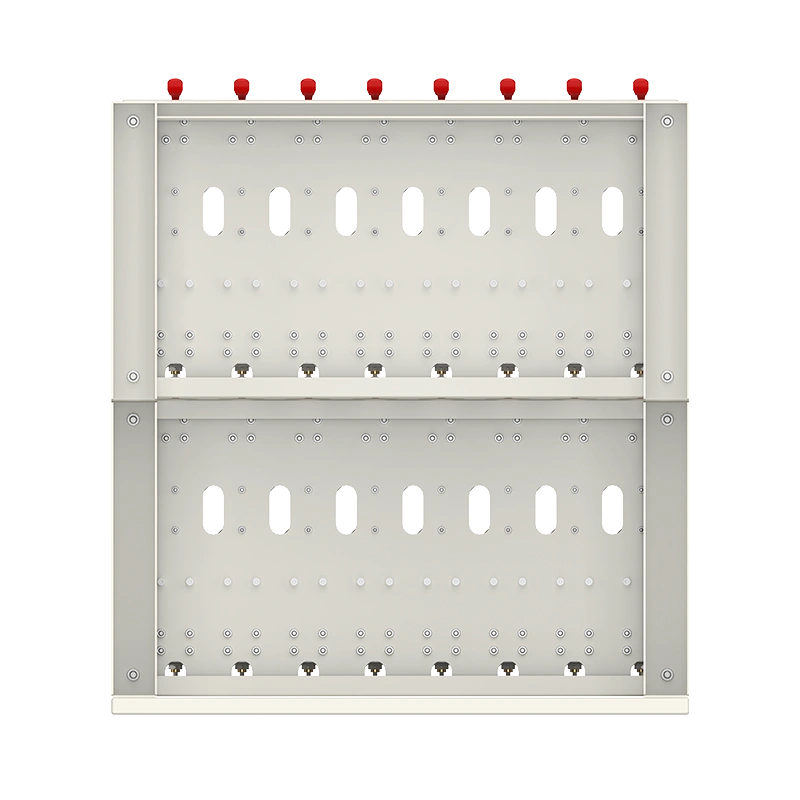

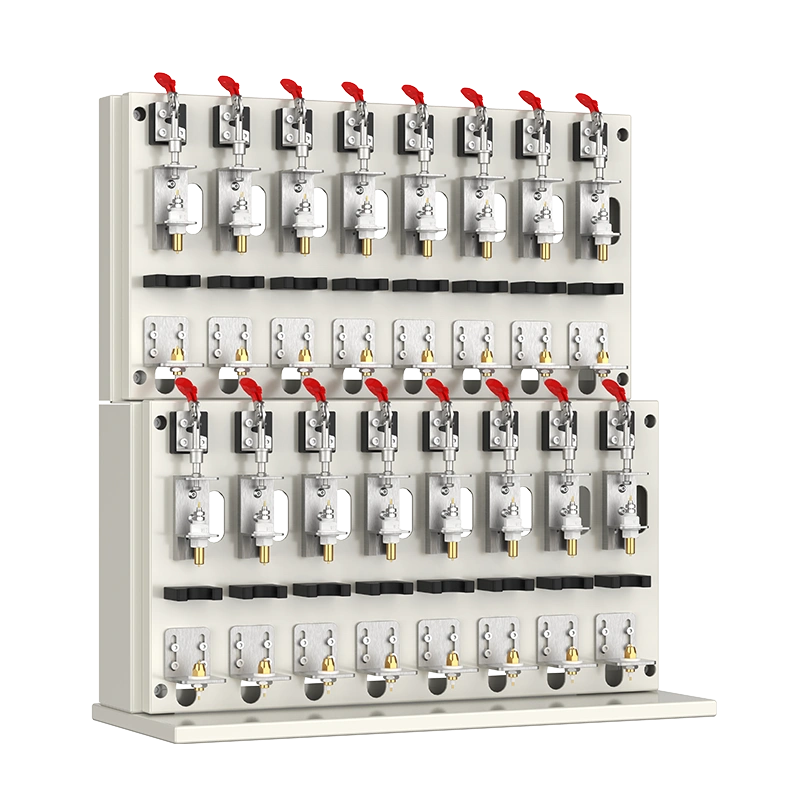

With a small footprint, the rack features a dual-layer panel layout in a staircase design. This not only maximizes space utilization but also allows for flexible adjustment of the fixture handles.

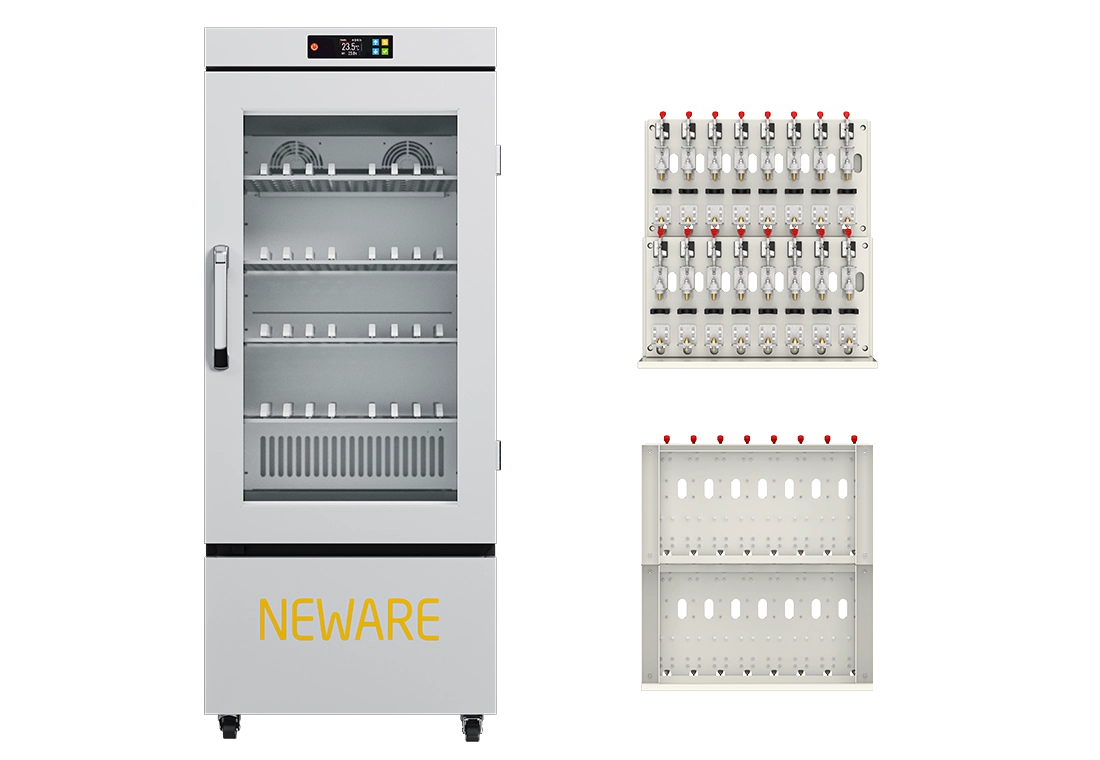

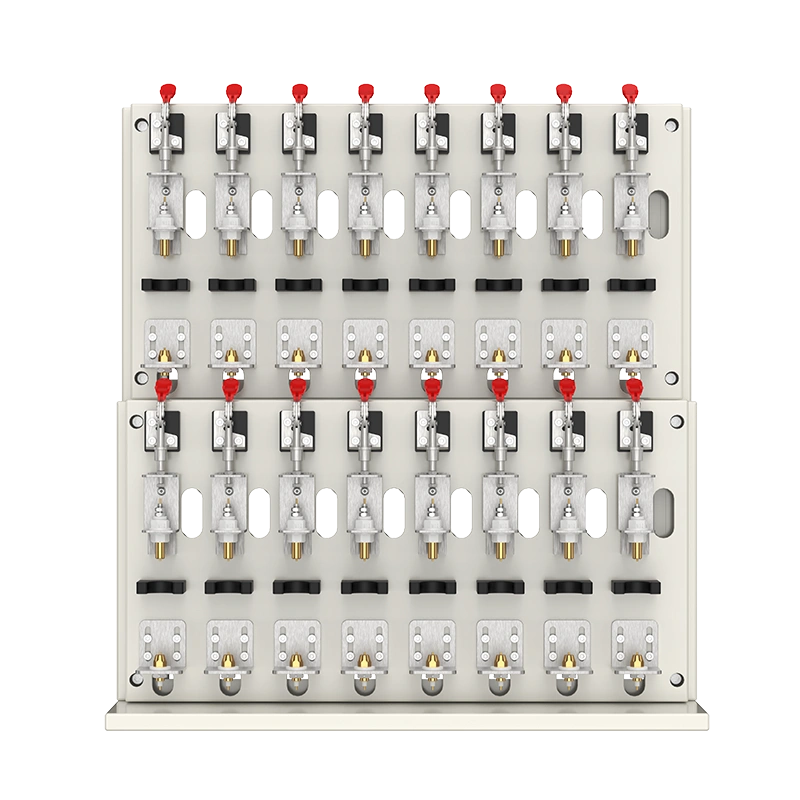

8 channels per layer and the dual-layer design provides 16 testing channels. When paired with a battery testing system, it is ideal for conducting charge-discharge tests on cylindrical battery cells in Constant Temperature Test Chamber.

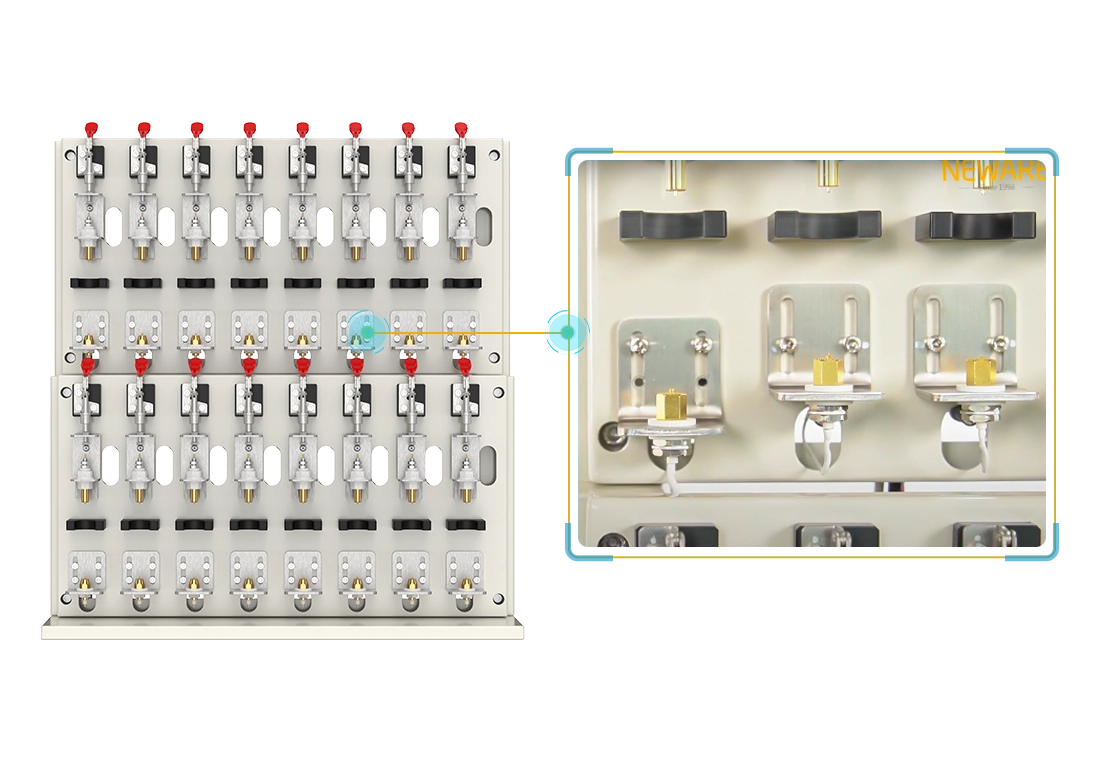

Crafted from beryllium copper, probes are enveloped in a dual-layer plating of nickel and gold, ensuring uniform and smooth coating. This enhances conductivity, guaranteeing stability and reliability for battery testing.

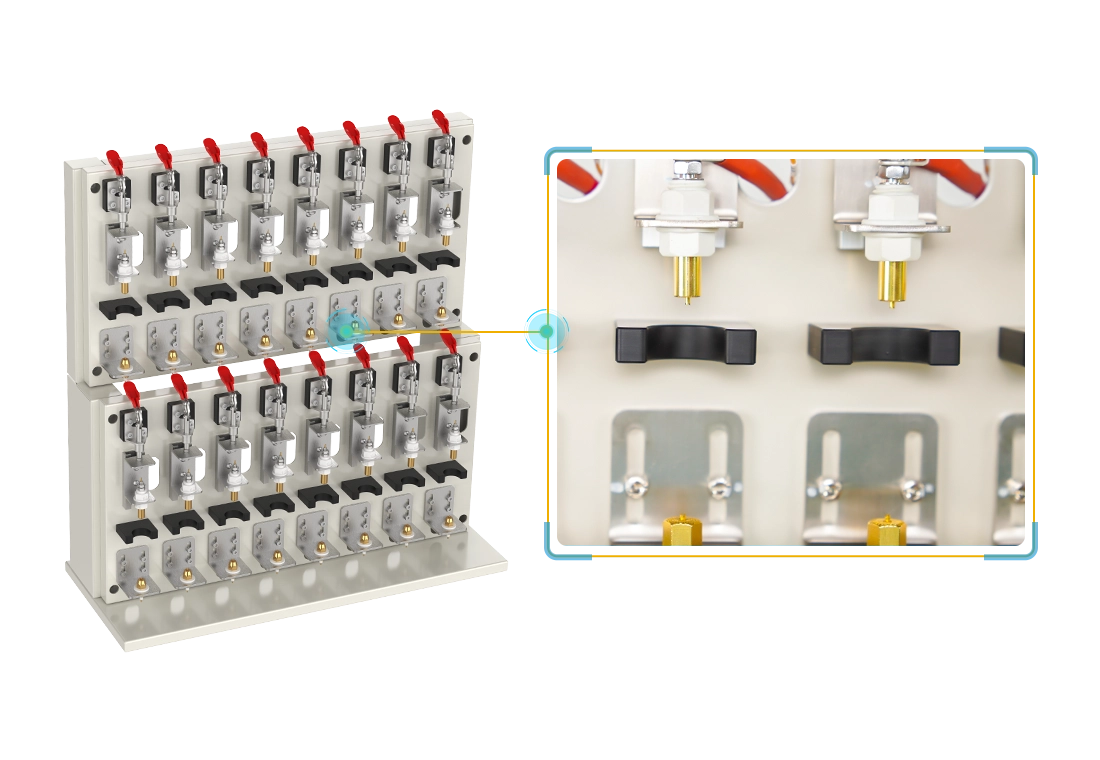

With adjustable probes below and customizable space, our solution caters to a wide range of cylindrical battery cell tests, accommodating different sizes with ease.
| Equipment name | 30A Cylindrical Cell Clamp Holder |
|---|---|
| Current | 30A |
| Number of Layers | 2 |
| Number of Channels | 16 |
| Battery Size | Length: 0.4"-2.9" (10~73mm)
Diameter: 0.2"-0.8" (5~21mm) |
| Channel Spacing | 2.3" (58mm) |
| External Size | 19.8" ×8.0"×22.4"
504mm×204mm×570mm |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
