Size doesn't matter when it comes to impact.

Interpreting the beauty of research with data.

59℉~140℉<br>(15℃~60℃ )
Temperature Range
59℉~140℉
(15℃~60℃ )
16CH
Number of Channels
16CH
≤1.8℉(1℃)(No load and stable temperature)
Temperature Fluctuation
≤1.8℉(1℃)(No load and stable temperature)
77℉ ~ 140℉≤50min<br>(25℃~60 ℃)
Heating Efficiency
77℉ ~ 140℉≤50min
(25℃~60 ℃)
77℉ ~ 59℉≤60min<br>(25℃~15 ℃)
Cooling Efficiency
77℉ ~ 59℉≤60min
(25℃~15 ℃)
±3.6℉(±2.0℃)(No load and stable temperature)
Temperature Deviation
±3.6℉(±2.0℃)(No load and stable temperature)

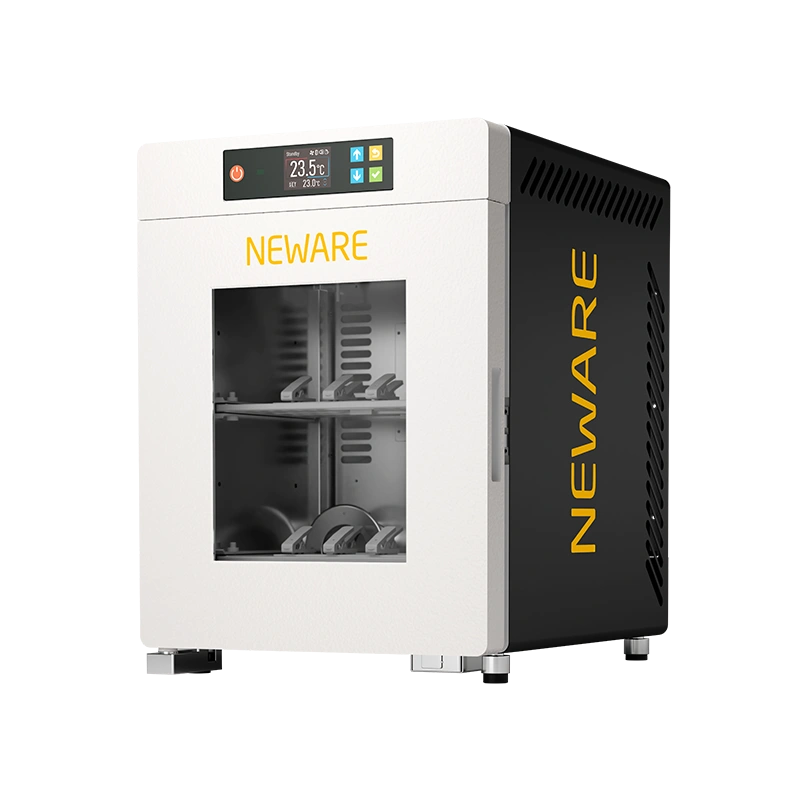

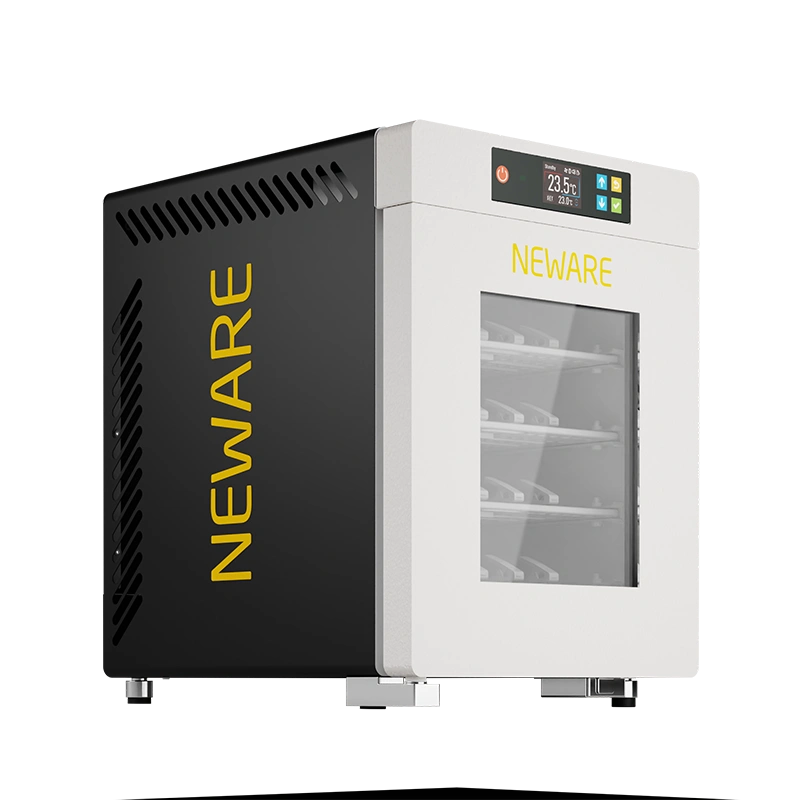

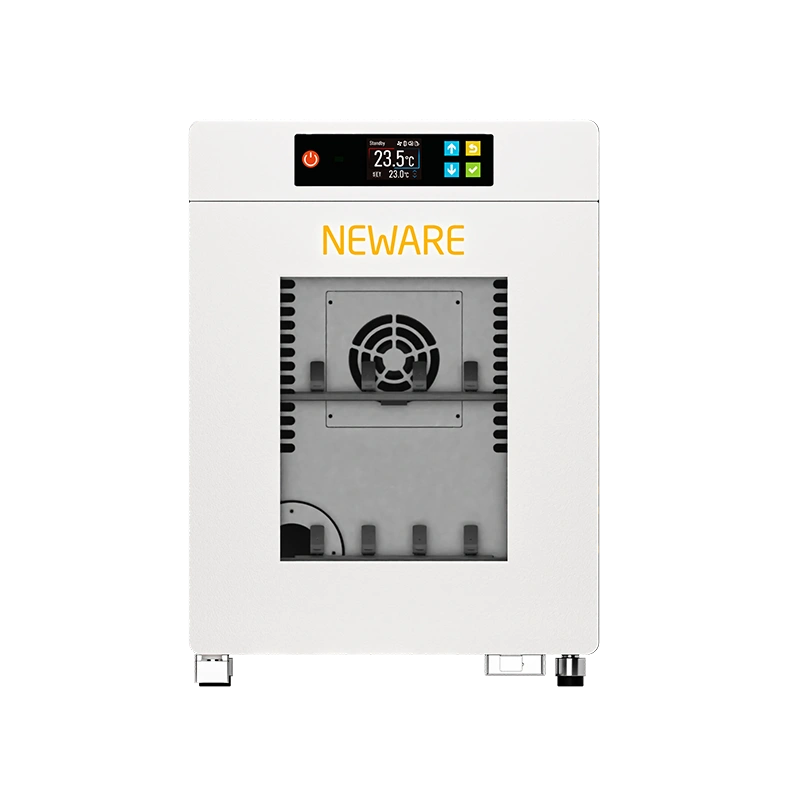

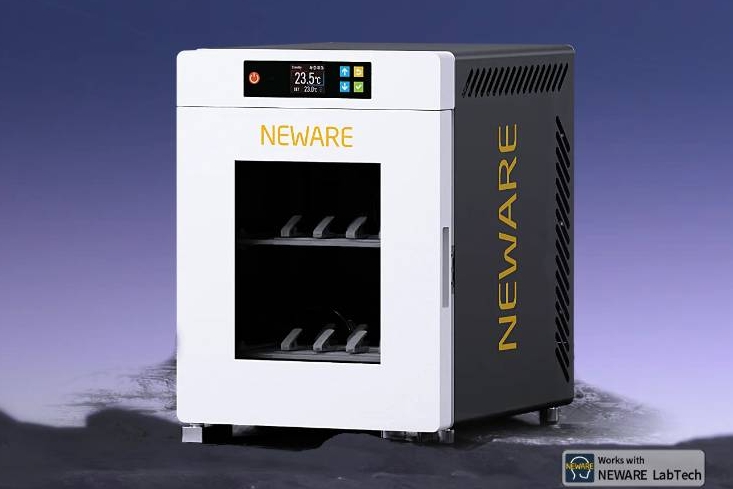

WHW-25L-S Mini Constant Temperature Chamber compresses experimental capabilities to the extreme. Despite its compact size, it possesses powerful experimental functions. Whether you are conducting research and testing in a laboratory, studio, or office desk, this mini constant temperature test chamber can provide you with professional-level temperature control and stability.

All-around product tour.

Refined temperature control for long-lasting insulation.

A 40mm thick polyurethane foam layer is installed between the outer cold-pressed steel plate and the inner stainless steel plate, providing superior internal temperature protection to ensure more accurate and reliable data.

A 40mm thick polyurethane foam layer is installed between the outer cold-pressed steel plate and the inner stainless steel plate, providing superior internal temperature protection to ensure more accurate and reliable data

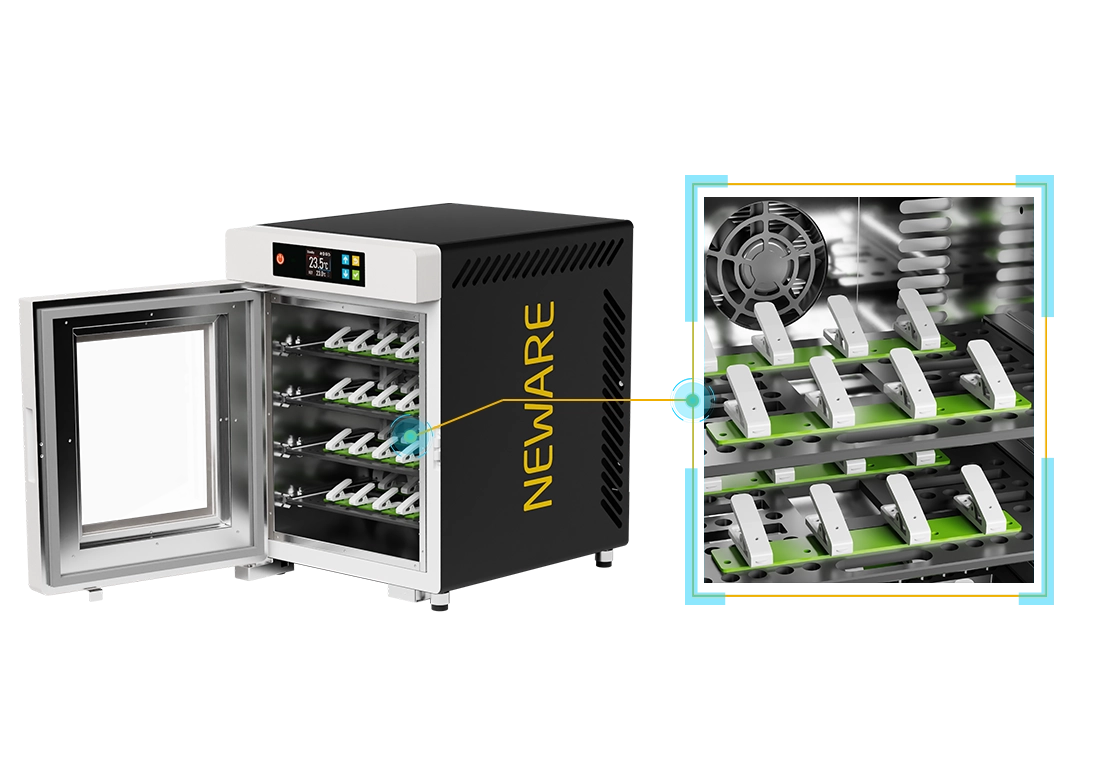

Neatly organized: 16 testing channels.

With a compact and slender body, it is more suitable for small-scale development and experiments. It has a practical volume of 25L and occupies less than 5.38sq.ft of space, freeing up more desktop space. It allows for real-time observation of experimental conditions inside the chamber. The high-quality insulated battery cell tray can accommodate up to 16 coin battery cells.

NEWARE-WHW-25 Constant Temperature Chamber can accommodate a maximum of 16 button batteries with a usable volume of 25L and occupies a floor space of 5.38 sq

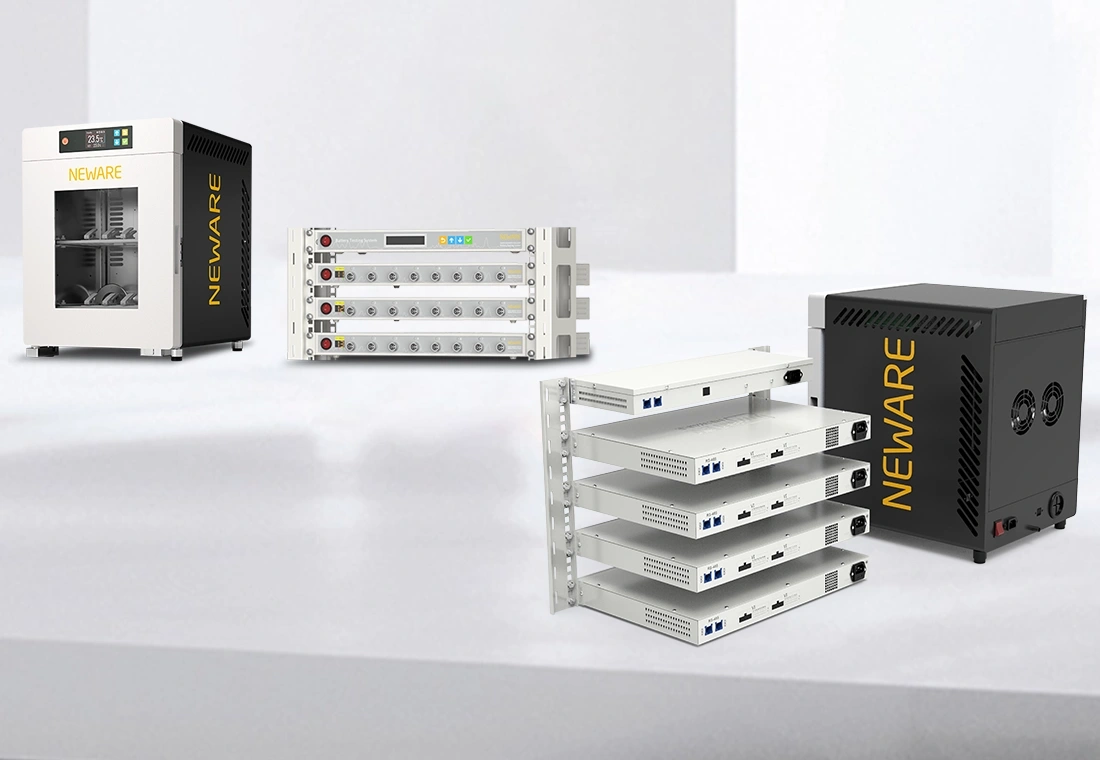

Unified management, smooth connectivity.

The constant temperature test chamber, battery cell testing equipment, and computer are interconnected through channel wires and data communication cables to achieve hardware interconnectivity. The computer features integrated BTS (Battery Test System) for temperature control settings and battery cell testing.

constant temperature test chamber, battery cell testing equipment, and computer are interconnected through channel wires and data communication cables to achieve hardware interconnectivity. The computer features integrated BTS (Battery Test System) for temperature control settings and battery cell testing

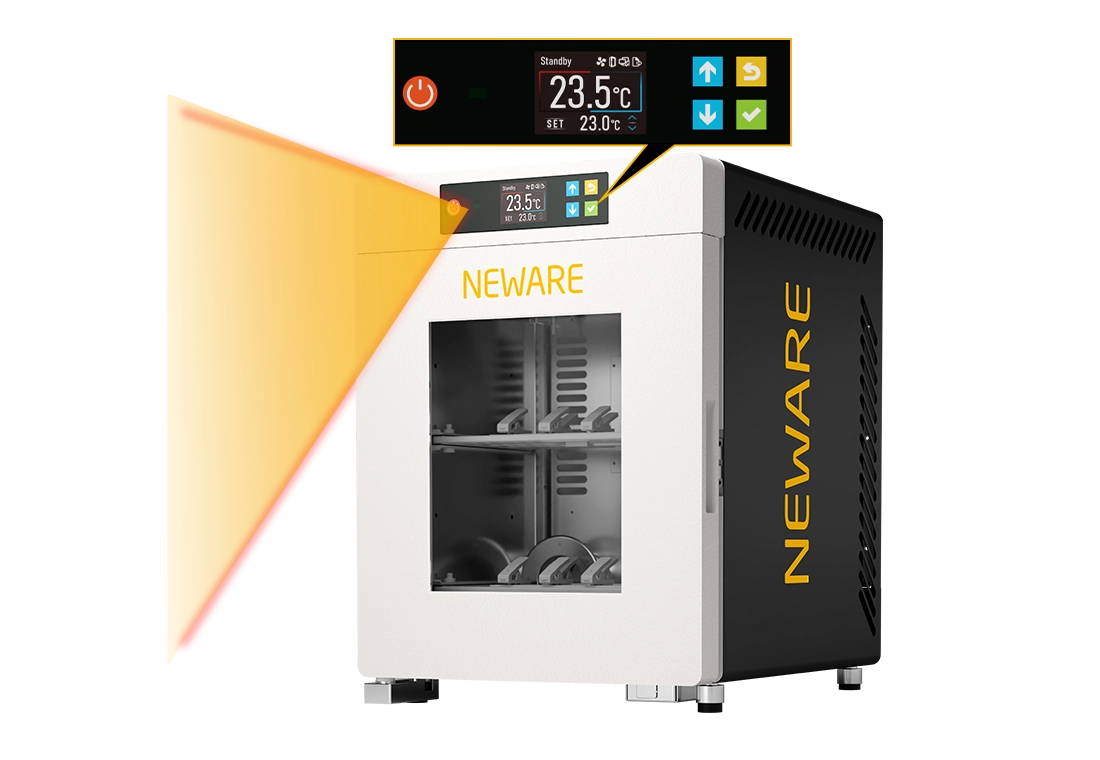

Intuitive interface, effortless operation.

WHW-25L-S prioritizes user experience and incorporates a touch LCD screen design with a user-friendly graphical interface and flexible configuration options. It features automatic screen wake-up through infrared human body sensing within a 1.5-meter range, allowing users to easily set up and manage the device.

The NEWARE-WHW-25 Constant Temperature Chamber - battery tester features a touch LCD screen design and infrared human body induction for automatic screen wake-up function

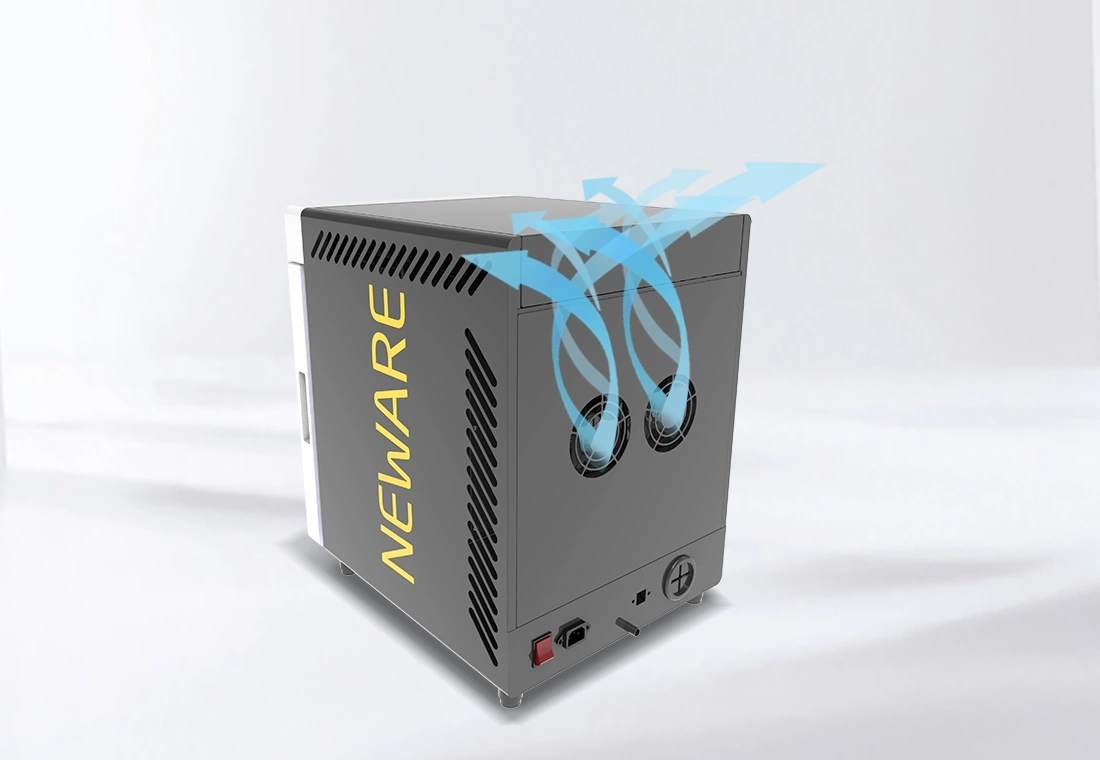

Powerful heat dissipation for optimal stability.

According to the set temperature value, the control system automatically calculates and controls the output of the semiconductor refrigeration (heating) module using the newly developed fuzzy PID algorithm by New Wei, in order to achieve dynamic balance.

NEWARE-WHW-25 Constant Temperature Chamber - battery tester has powerful heat dissipation capability

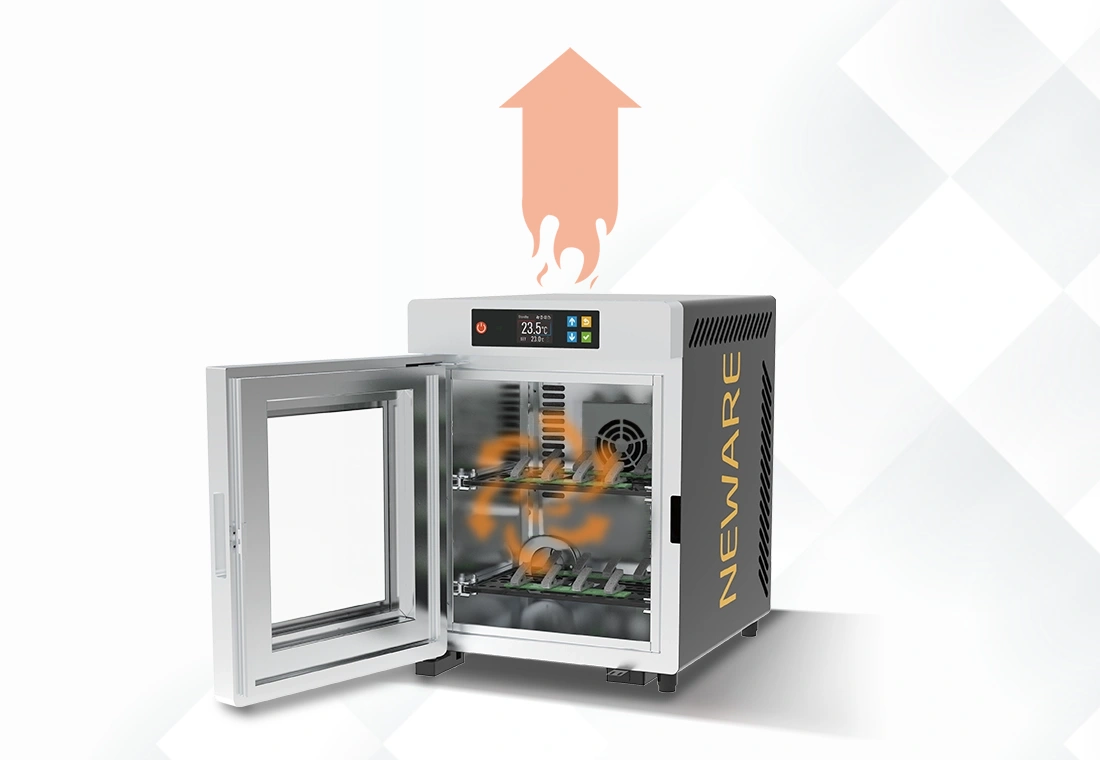

The axial flow fan circulates the air evenly, with a large air outlet, ensuring uniform and fast heat dissipation.

NEWARE-WHW-25 Constant Temperature Chamber - battery tester ,The axial flow fan circulates the air evenly, with a large air outlet, ensuring uniform and fast heat dissipation

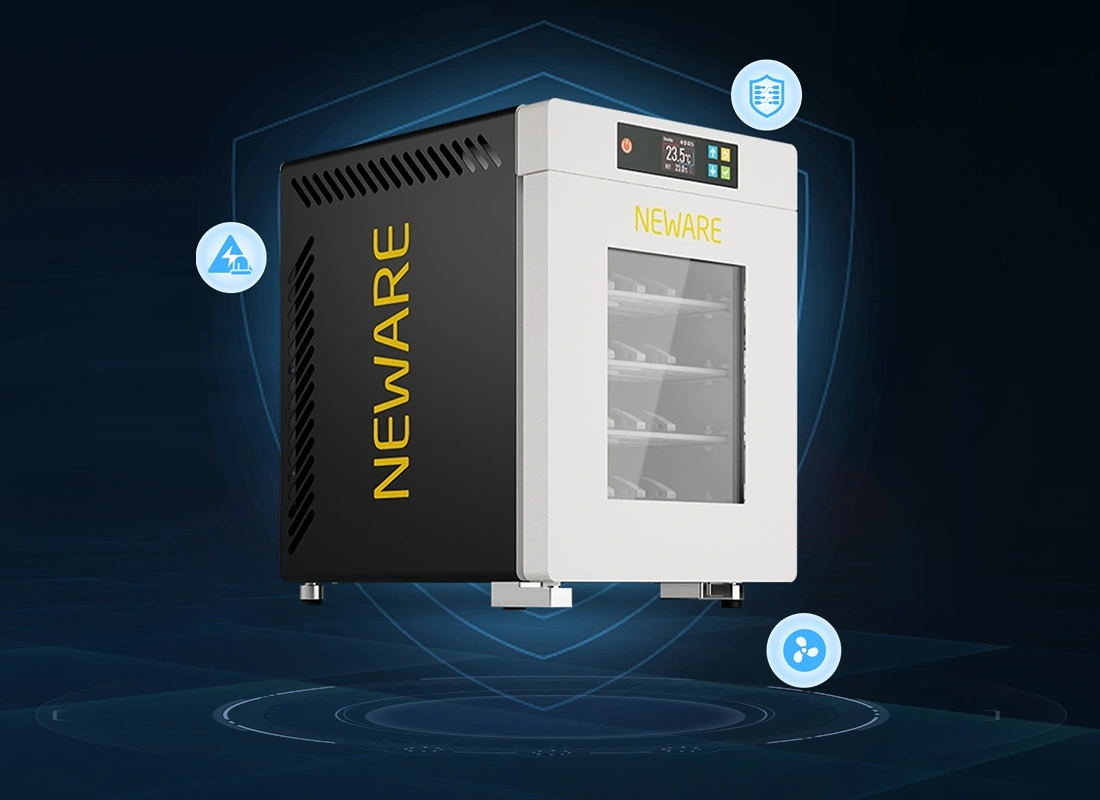

Perpetual dedication to safety protection.

● Over-temperature protection

● Electrical protection

● Abnormal monitoring of circulating fan operation

NEWARE-WHW-25 Constant Temperature Chamber - battery tester is equipped with safety protection functions such as over-temperature protection, electrical protection, and abnormal monitoring of the circulating fan operation
NEWARE-WHW-25 Constant Temperature Chamber - battery tester

Technical Specifications

Equipment name WHW-25L-S
Nominal content product 25L
Inner box size W280mm × D250mm × H330mm
Overall dimensions W360mm × D450mm × H500mm
Net weight of the equipment About 40kg
Test the environmental conditions Ambient temperature is + 25℃, relative humidity is 85%, with no sample in the test box (no load)
Temperature range 15~60℃
Temperature fluctuation degree 1℃ (equivalent to ± 0.5℃, with no load and stable temperature)
Temperature deviation ± 2.0℃ (when no load and temperature is stable)
Product application Constant temperature test of buckle cell and new energy small soft package polymer cell (millipere level)
Limit the sample This test equipment is prohibited by:
· Test or storage of samples of inflammable, explosive and volatile substances
· Test or storage of test samples of corrosive substances
· Test or storage of samples of strong electromagnetic emission sources
· Test and storage of test samples of radioactive substances
· Test and storage of test samples of highly toxic substances
· Testing or storage of tests or specimens that may produce such substances or objects
