Master precision, unleash potential.

Electric toothbrush and electric razor
Personal Care Devices
Headset and camera
Consumer Electronics
button battery
Coin Cells

Seamless testing experience.

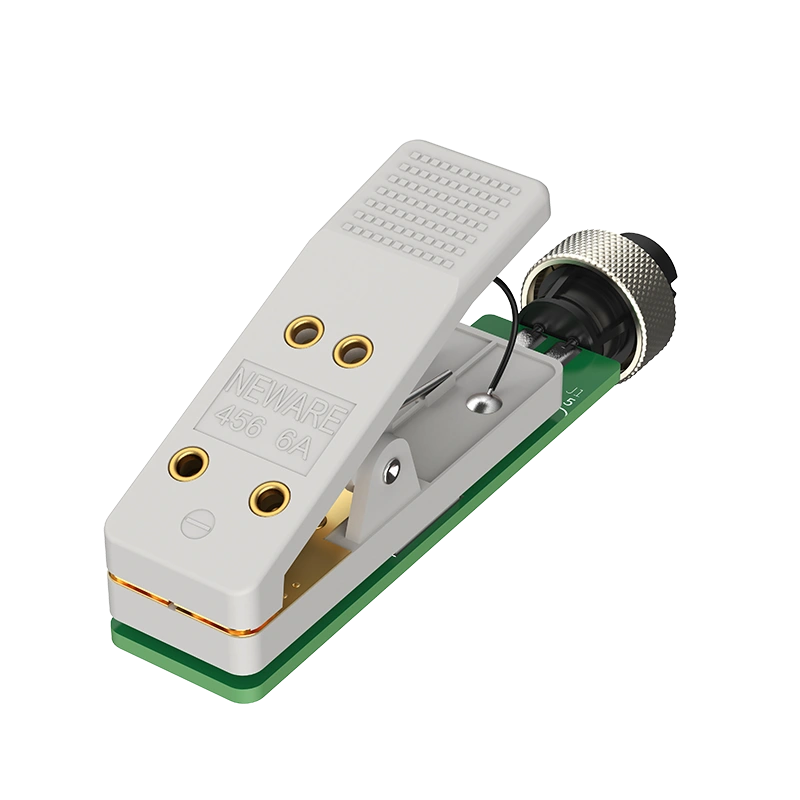

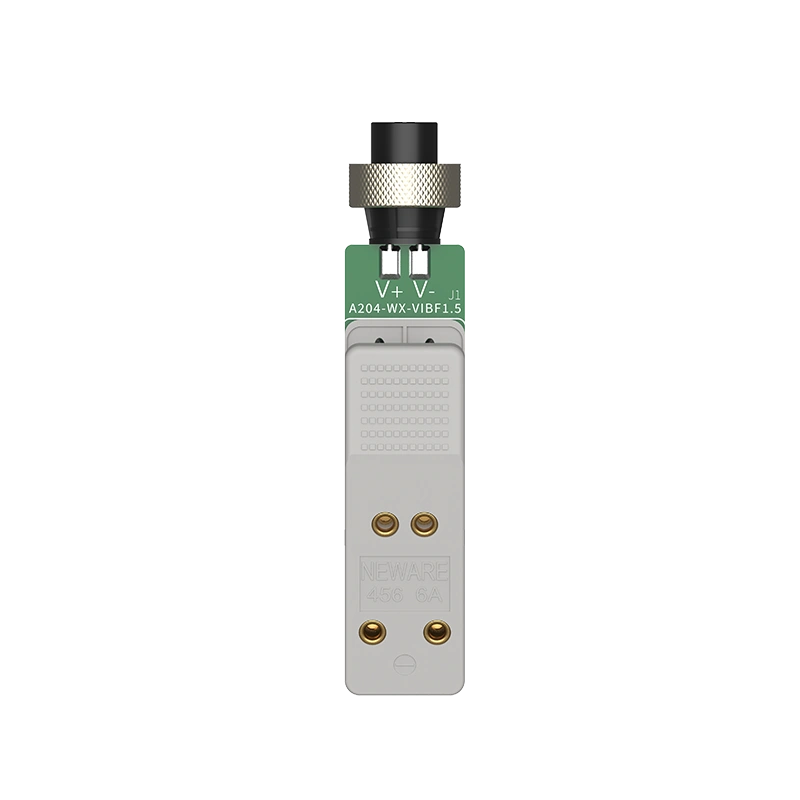

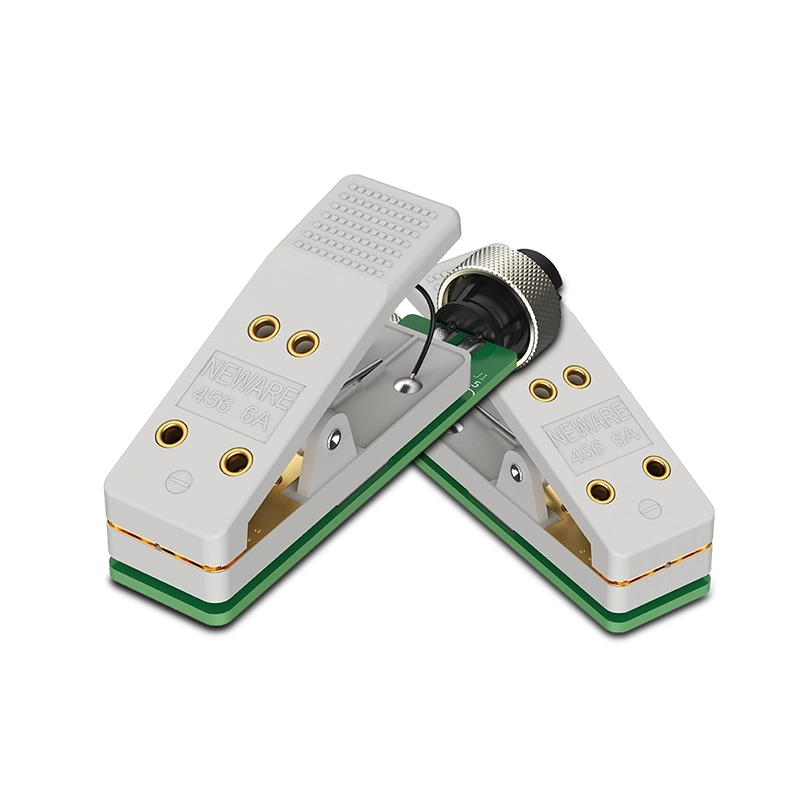

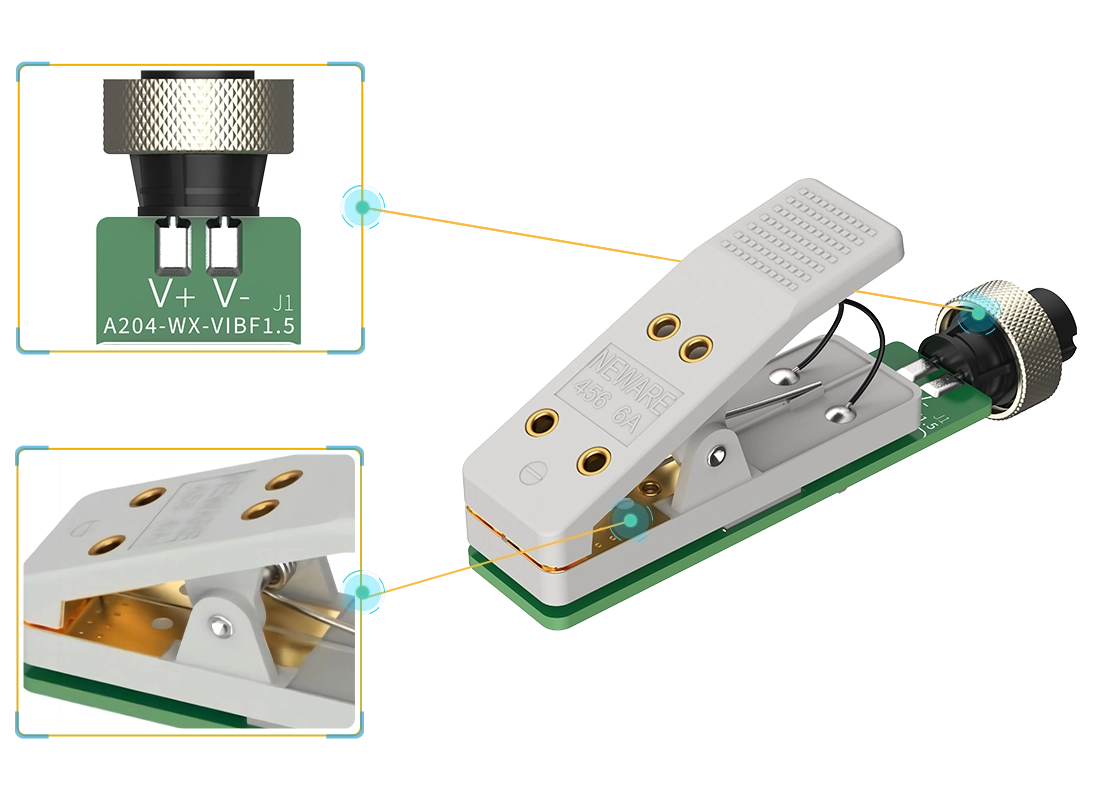

The coin cell clamp is equipped with a sturdy PCB clamp and a four-wire interface, enabling direct electrical connection with the test channel. Traditional pin header wires are eliminated, simplifying the test setup and optimizing the efficiency of workspace usage.


Dual safety and stability assurance.

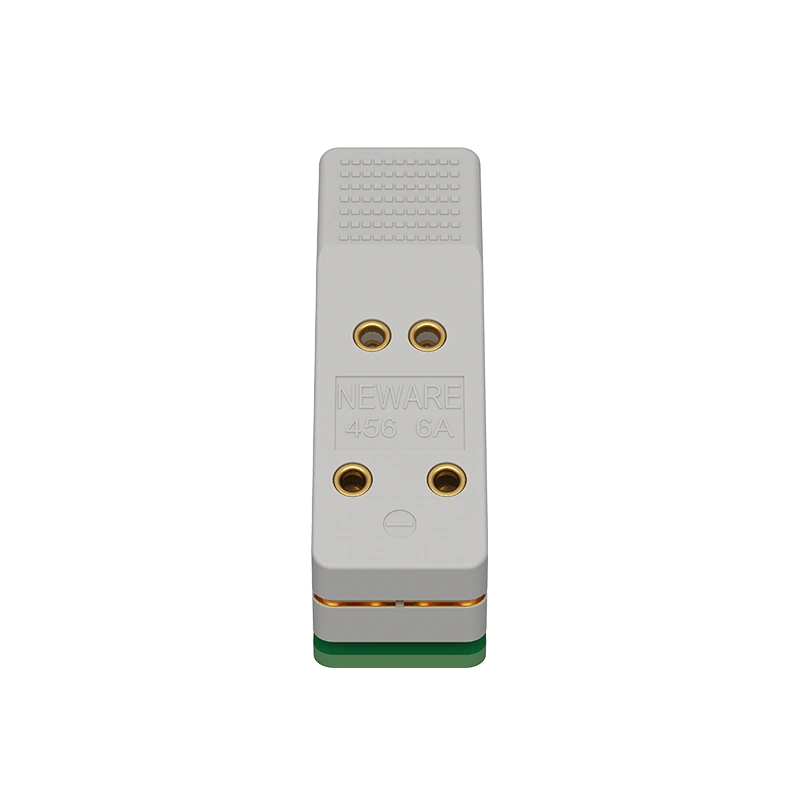

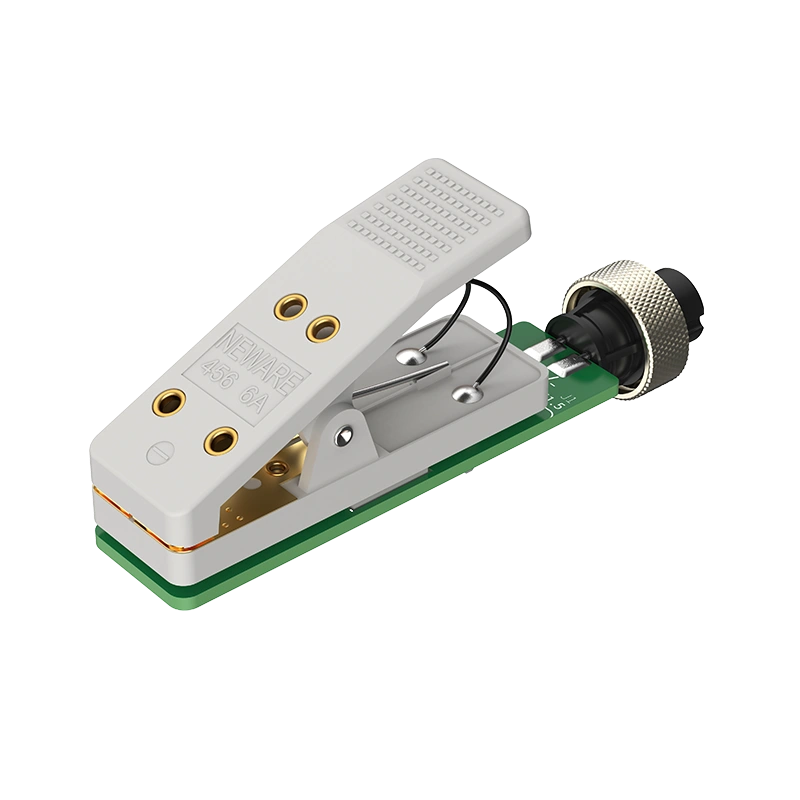

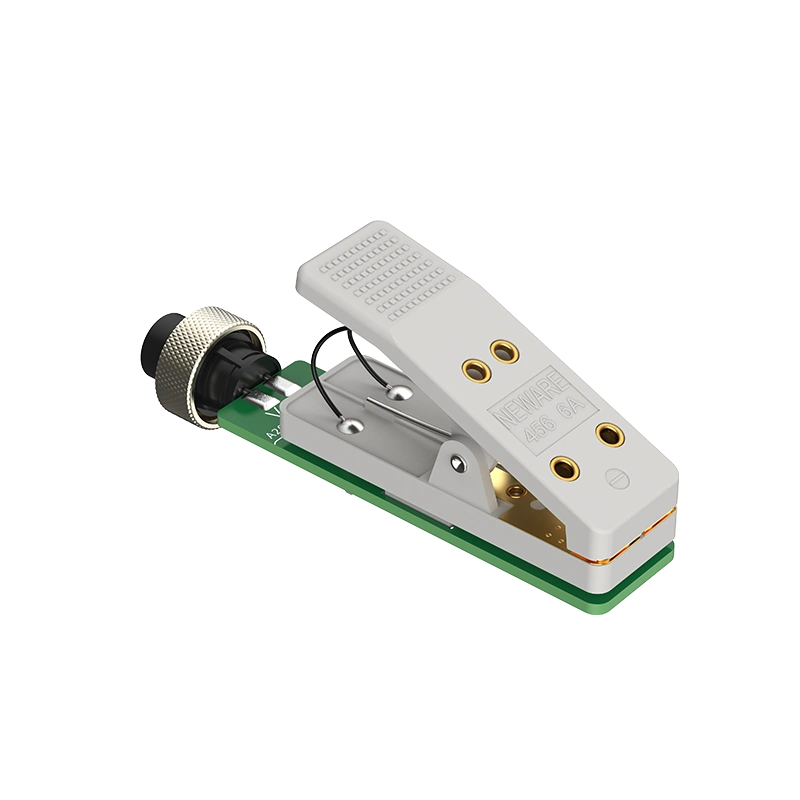

The clamp exterior is made of fire-resistant insulating material, ensuring safety during testing. The clamp mouth is specially treated with a pattern to increase the coefficient of friction with the battery, ensuring a stable grip during testing and preventing slipping, thus guaranteeing the stability and reliability of the test results.
NEWARE-B01-WX-VIBF-1.5002

Excellent conductivity unleashes battery potential.

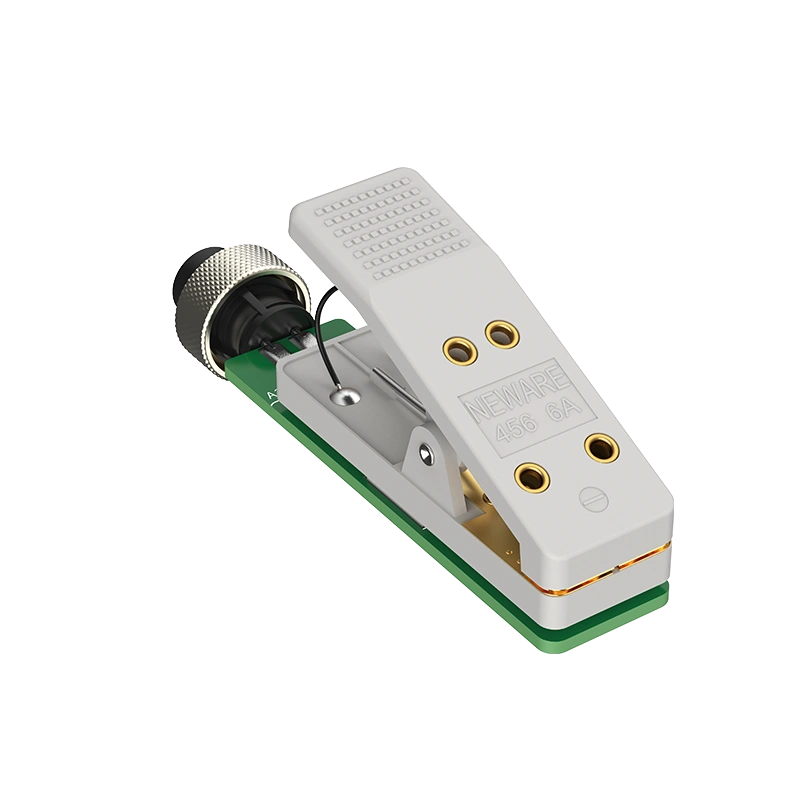

Selected high-quality conductive metal materials ensure efficient current transfer in the clamp, reducing energy loss. This excellent conductivity design can fully exert the performance of the battery, ensuring the accuracy of the test results and the high efficiency of the testing process.

NEWARE-B01-WX-VIBF-1.5001
