Paired with charge/discharge testing system (mA), the clamps are perfect for testing coin cells.
* This product model has been updated. For details, please refer to Coin Cell Clamps, or consult a sales expert.
Features
Tech Specs
Resources

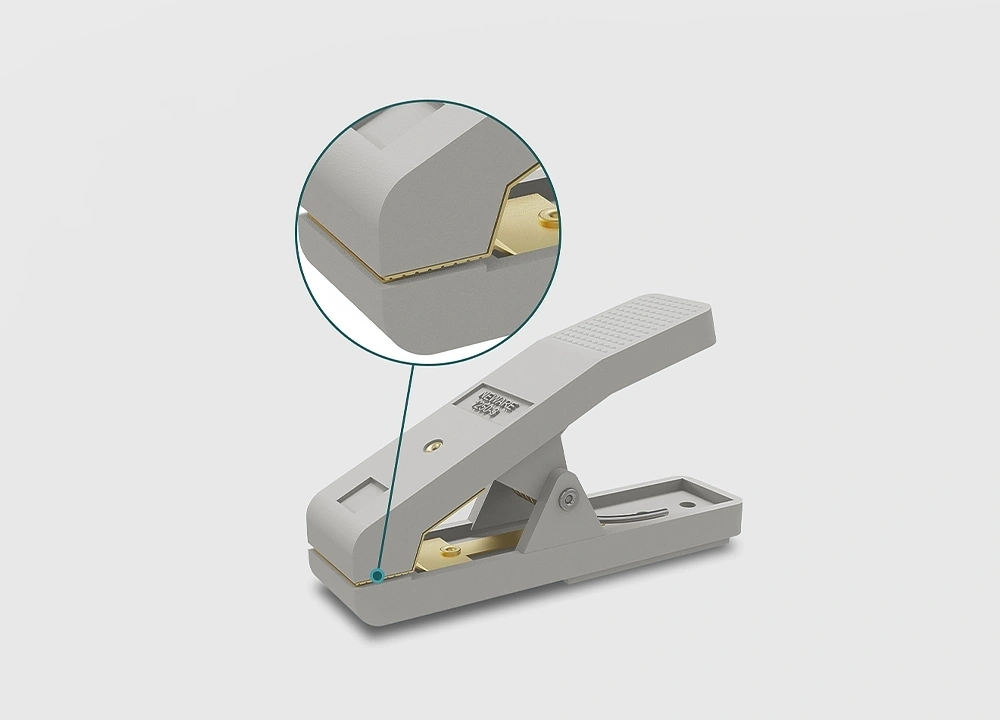

The upper and lower contact surfaces of the fixture are treated with gold plating to enhance conductivity. With a gold plating thickness of 0.03U (0.05"), it ensures stable and reliable current conduction.

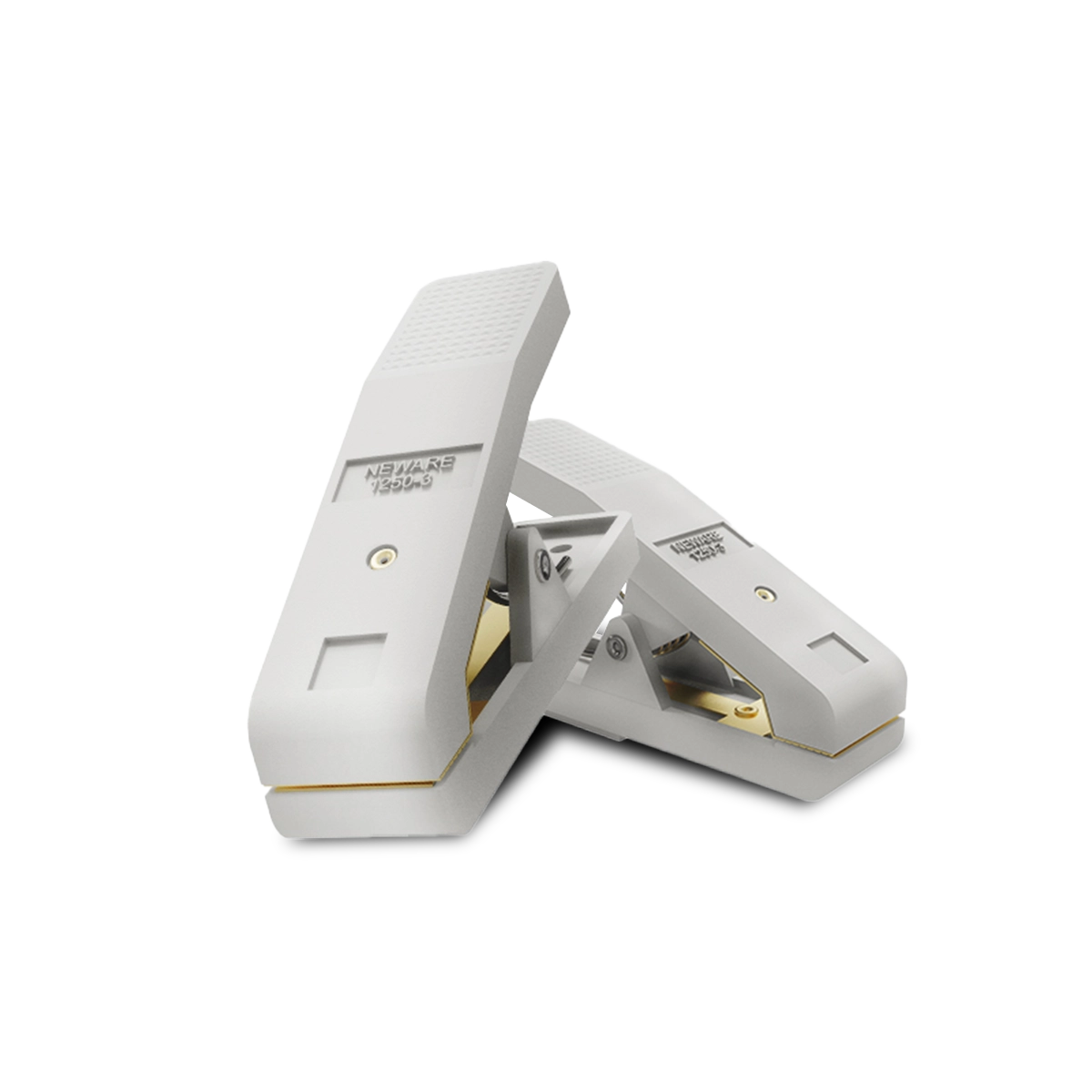

Experience the power of strong springs, delivering robust gripping force. The metal contacts are meticulously engraved with textured patterns to increase friction and provide enhanced stability for your batteries.

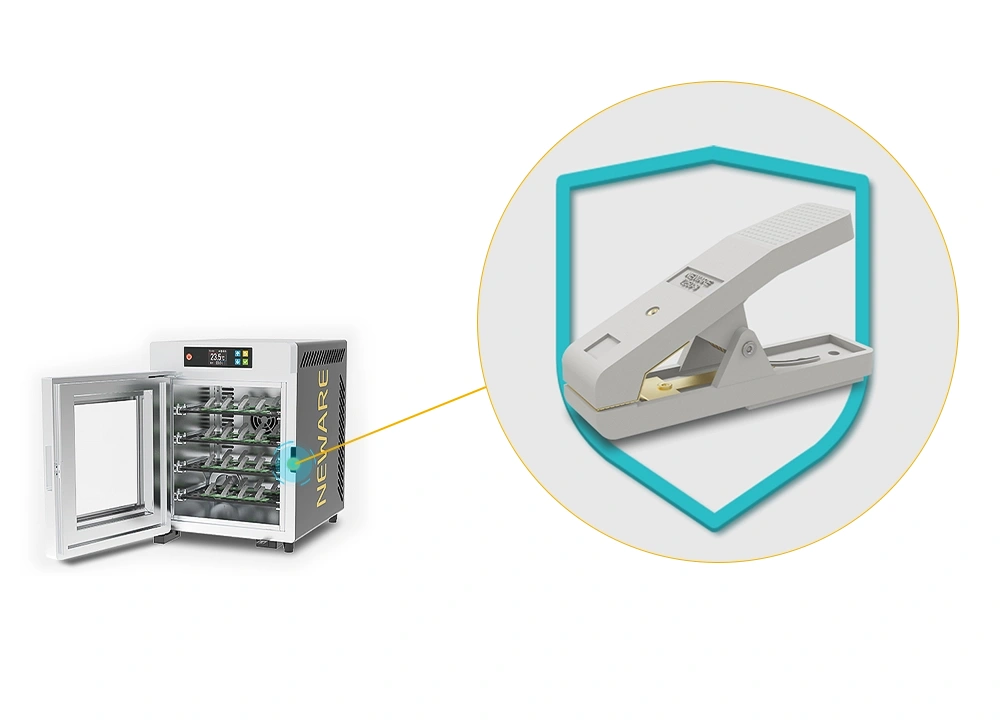

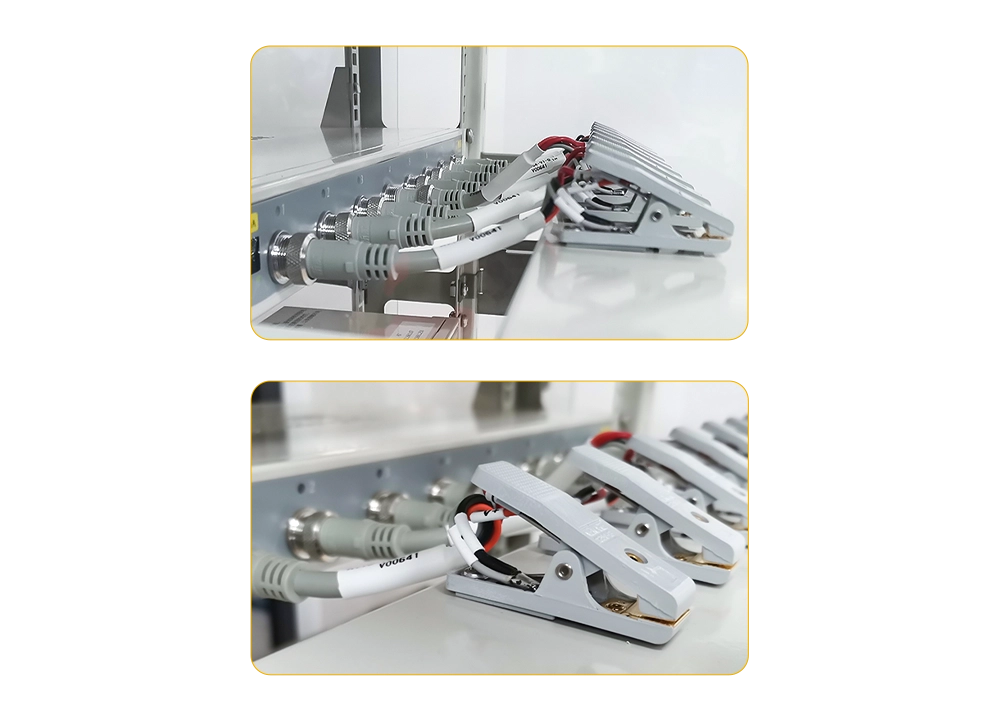

Pair it with aviation plug lines for use with the charge and discharge testing system, specifically designed for button cell battery testing. With its portable and secure design, effortlessly tackle your battery organization and storage needs.
Wrapped with fire-resistant engineering materials, our fixtures meet the UL94V-0 flame retardant rating. This ensures durable insulation and enhances safety for your testing needs.
| Equipment name | Coin Cell Clamp |
|---|---|
| Gold Plating Layer | 0.03U≈0.05" (1.3mm) |
| Operating Temperature | -67℉~257℉ (-55℃~125℃) |
| External Size | 2.0"×0.5"×1.1" (50mm×12mm×27.4mm) |
