Auxiliary device, ensuring testing stability.
Features
Tech Specs
The auto calibration is capable of calibrating current and voltage parameters for charging and discharging equipment, auxiliary channels, and other devices. It ensures high-precision and unbiased testing of the equipment, guaranteeing the accuracy and reliability of test results.
Multiple data export formats including PDF, Excel, and TXT allow for recording and storing calibration data, facilitating tracking of equipment performance changes and maintaining a historical record.

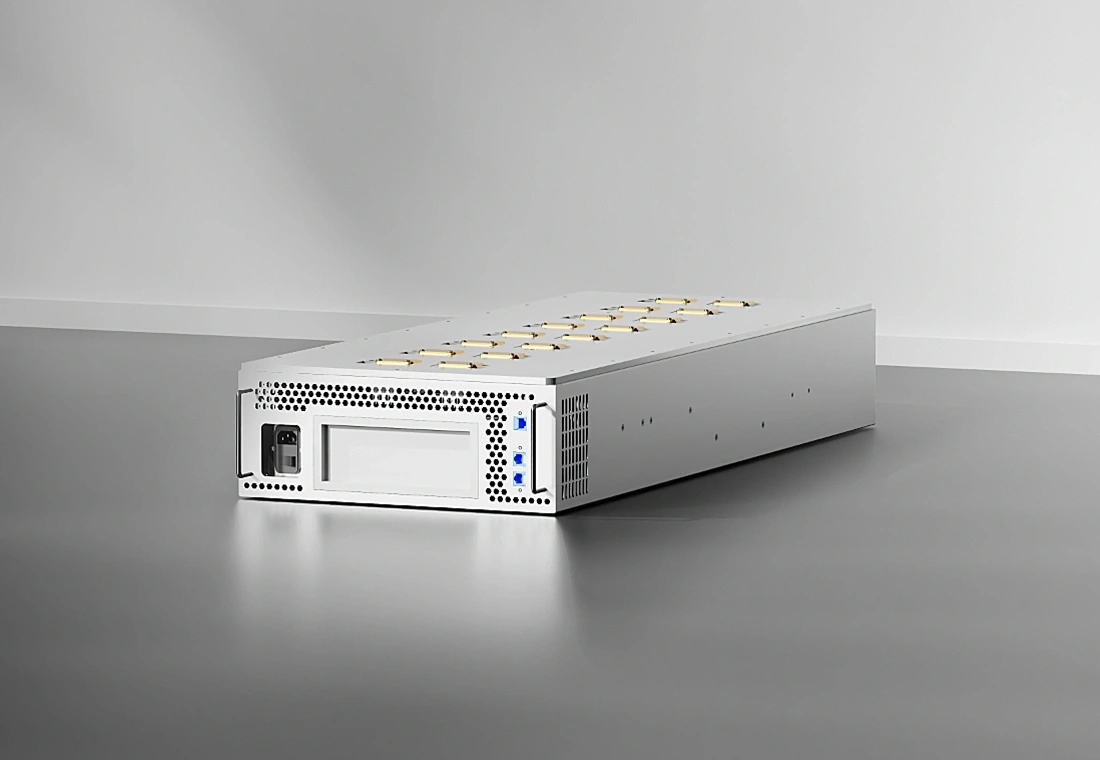

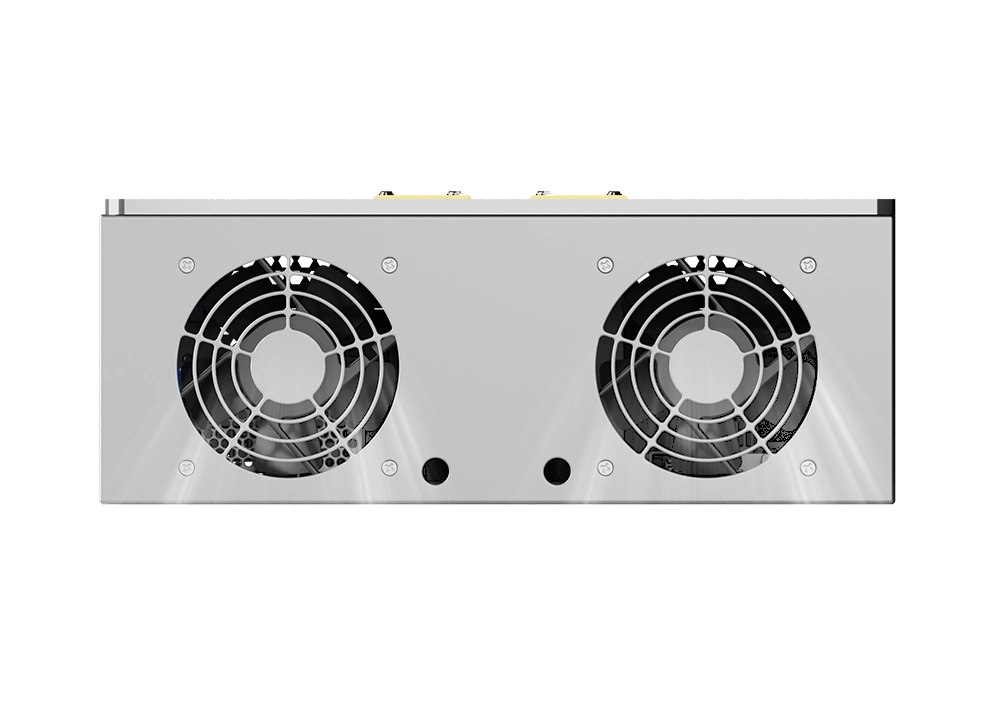

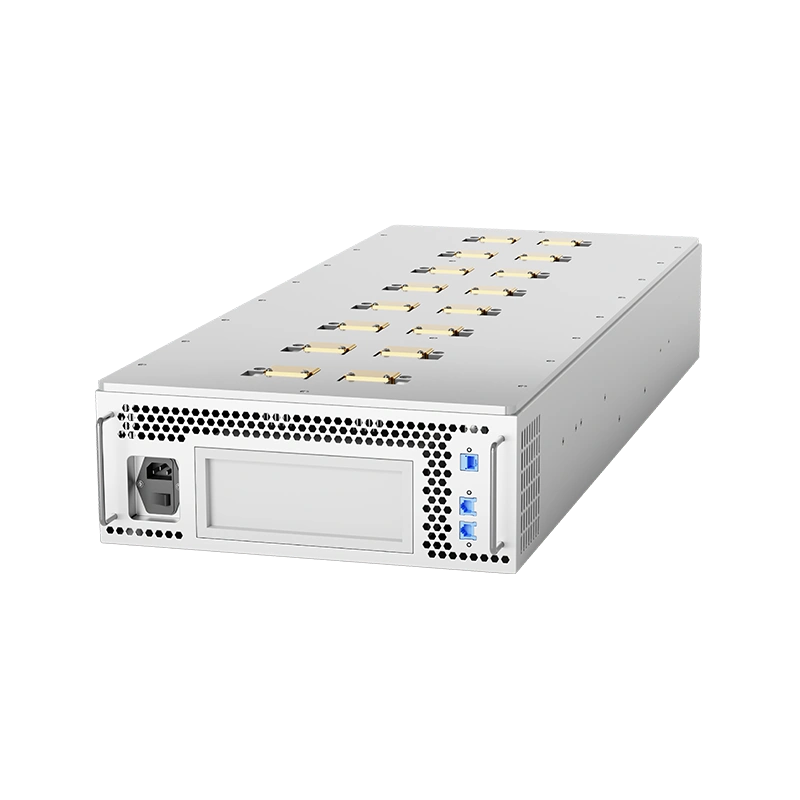

Compact and exquisite, equipped with a built-in fan cooling system, the device offers convenient and effortless operation, providing you with a comfortable and smooth user experience.
The auto calibration and precision verification loop setting mode enables automated calibration, eliminating human calibration errors, ensuring consistency in multiple calibrations, and empowering battery testing.

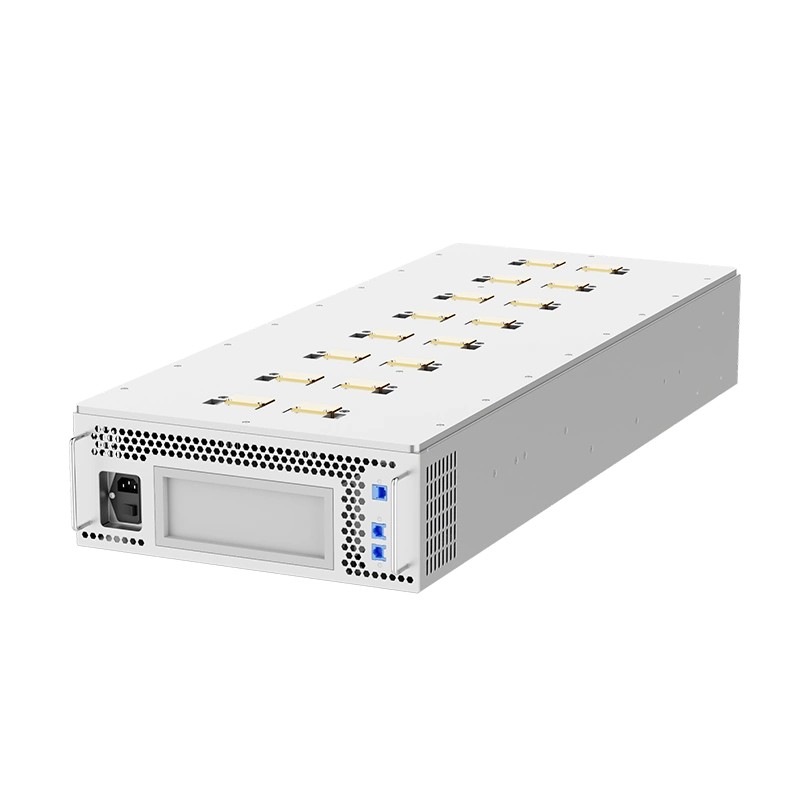

With a wide range of voltage and current settings, it meets the calibration needs for numerous parameters. Equipped with 8 channels, it can simultaneously calibrate the parameters for all 8 testing channels.
| Equipment name | Auto Calibration |
|---|---|
| Voltage Control Parameters | |
| Voltage Setting Range | 100mV~10000mV |
| Voltage Resolution | 0.1mV |
| Supported Calibration Items | Constant voltage charging, Constant voltage discharging, Discharge voltage, Auxiliary channel |
| Current Control Parameters | |
| Current Setting Range | 30A |
| Current Resolution | 1mA |
| Supported Calibration Items | Constant current charging, Constant current discharging |
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤30μs
