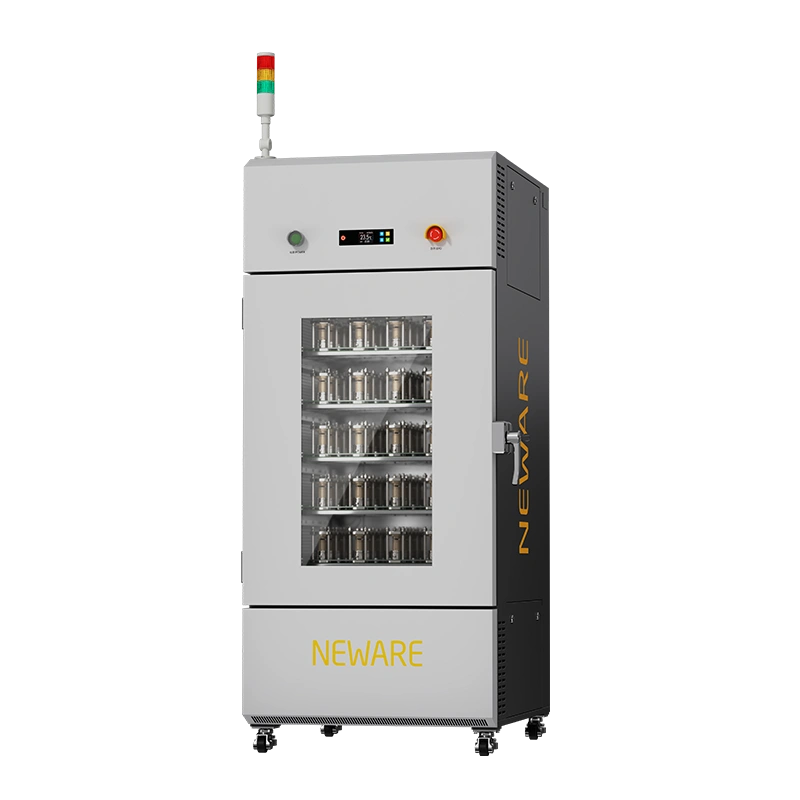

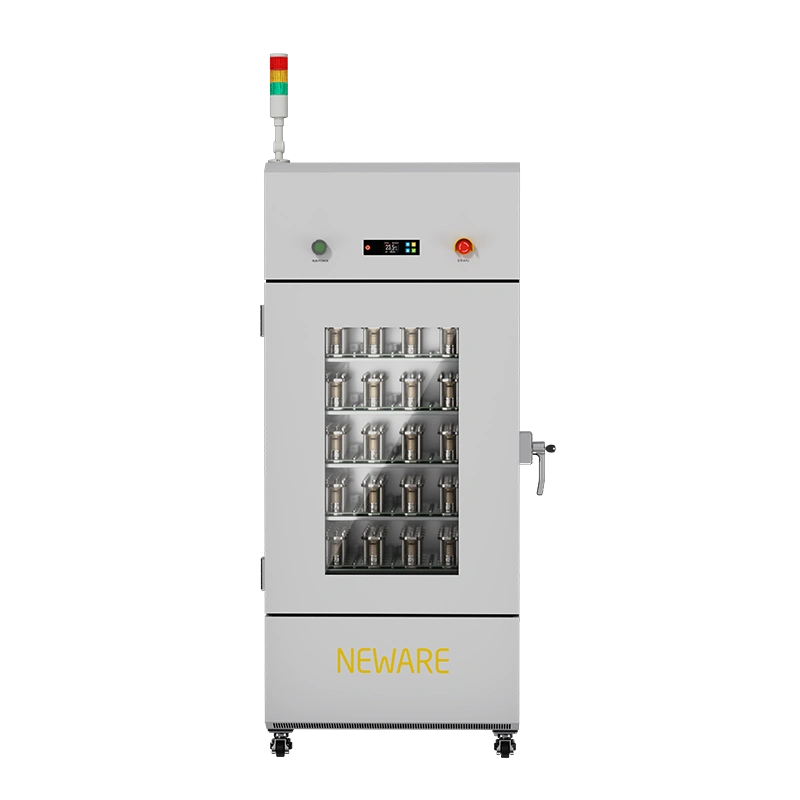

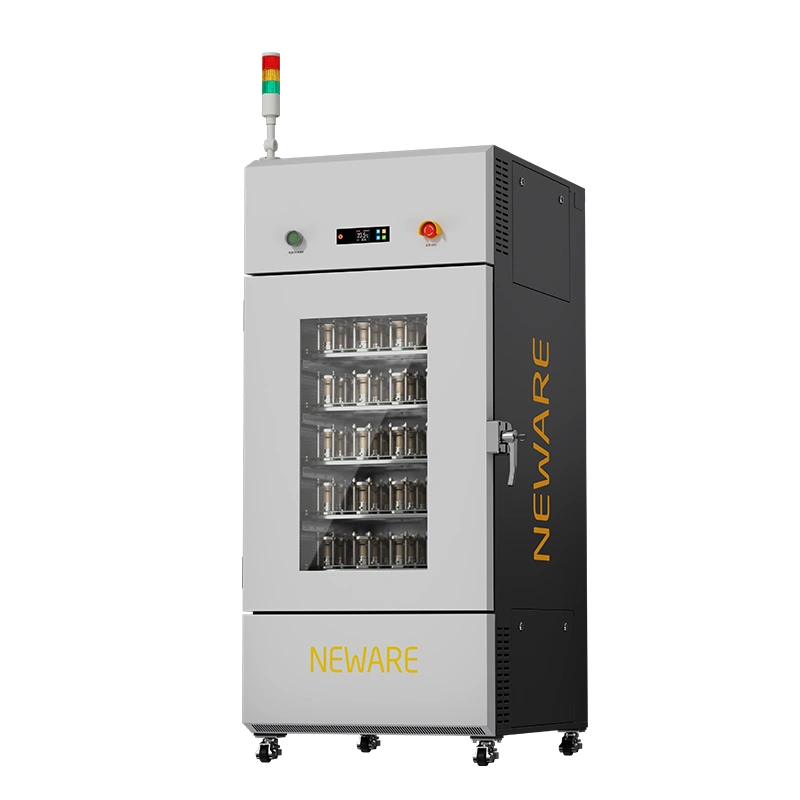

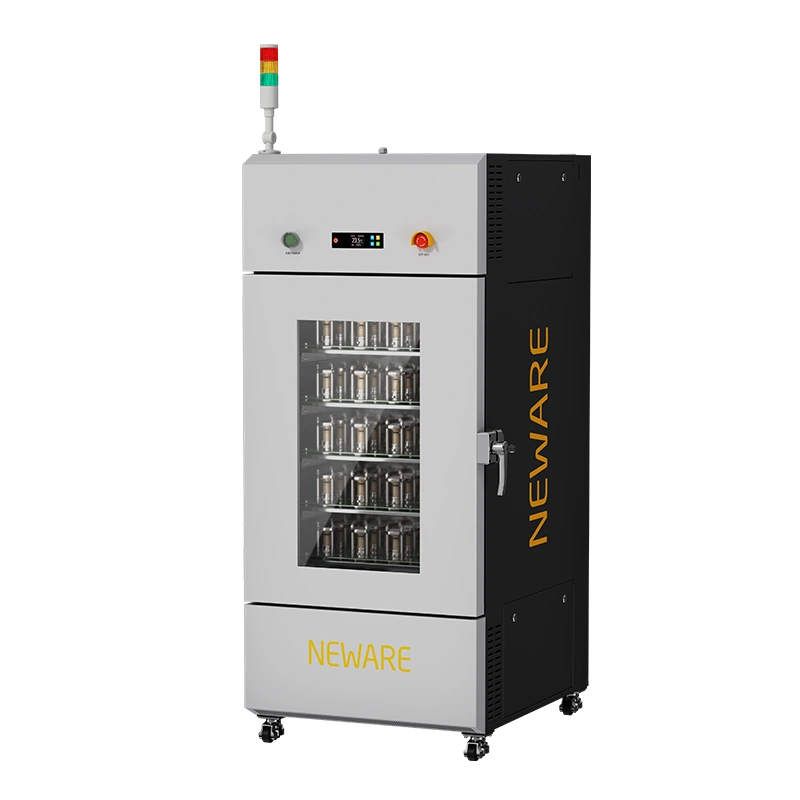

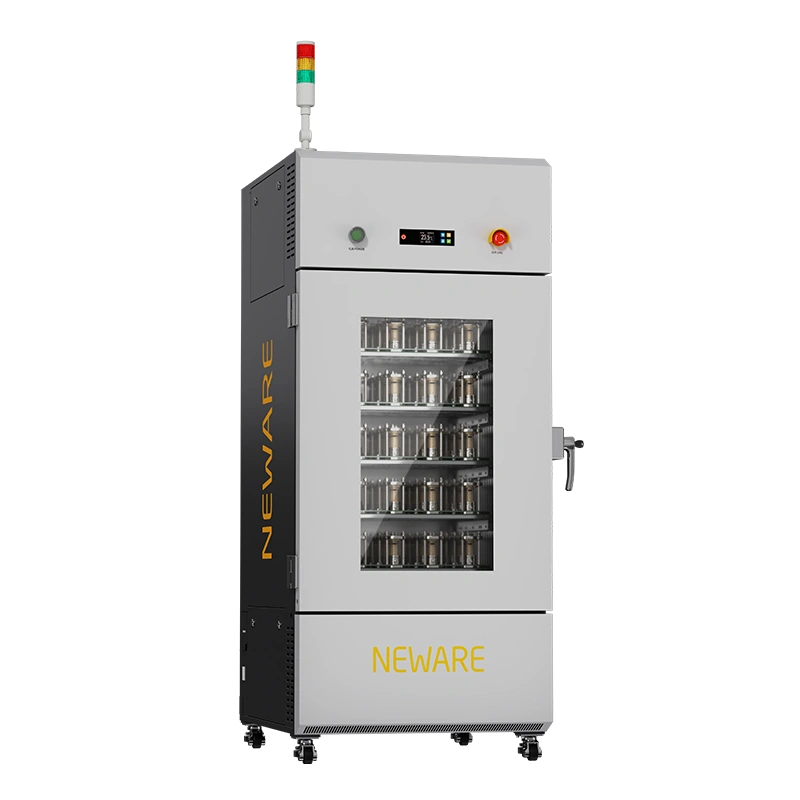

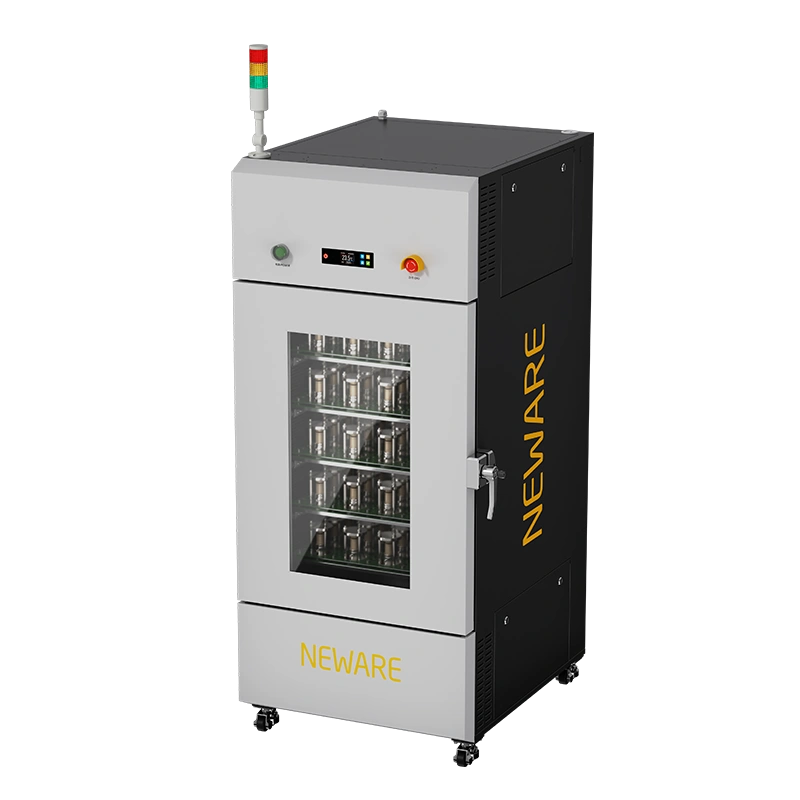

Solid-State Battery All-in-One Testing System

Why Choose Solid-State Battery All-in-One Testing System?

For solid-state and small-cell research, thermal stability and time-synchronized electrical data determine whether a dataset is publishable. By unifying the chamber with an 80-channel cycler, the WHW-200L removes the thermal drift, wiring inconsistency and timestamp misalignment common in split setups; per-channel pressure sensing extends measurement into solid-electrolyte interfacial evolution. The self-developed controller and Ethernet host interface let engineers script temperature-linked step profiles for long, unattended cycling campaigns.

True all-in-one architecture

Charge/discharge testing and thermal enclosure are integrated into one chassis, so temperature and electrochemical data are time-synchronized out of the box, eliminating separate cabinets, long wiring runs and alignment errors.

High-precision thermal control

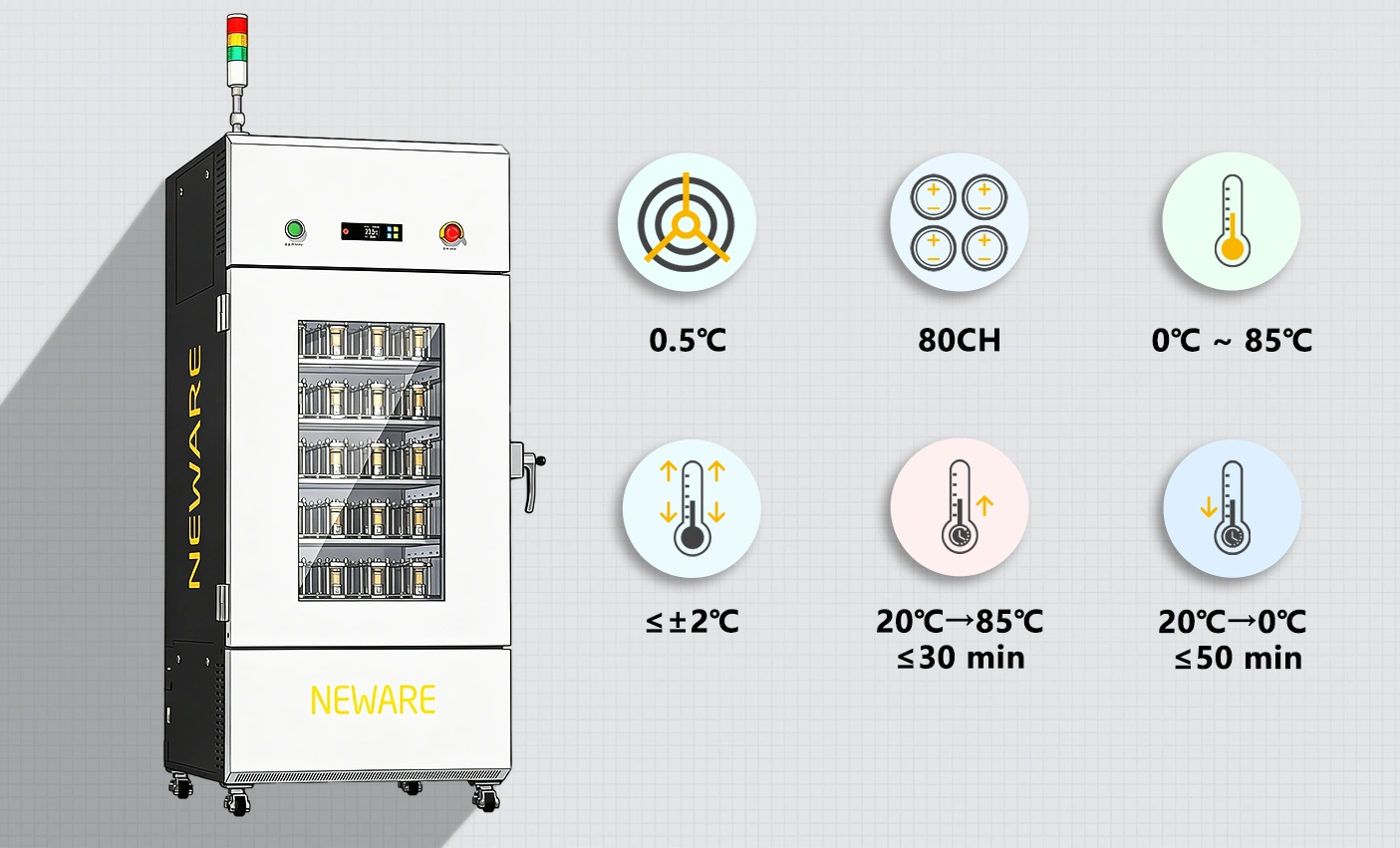

Forced-air circulation with auto-tuned PID; no-load fluctuation ≤±0.5°C, heating 25→85°C in ≤30 min, cooling 25→0°C in ≤50 min (no-load, non-linear average).

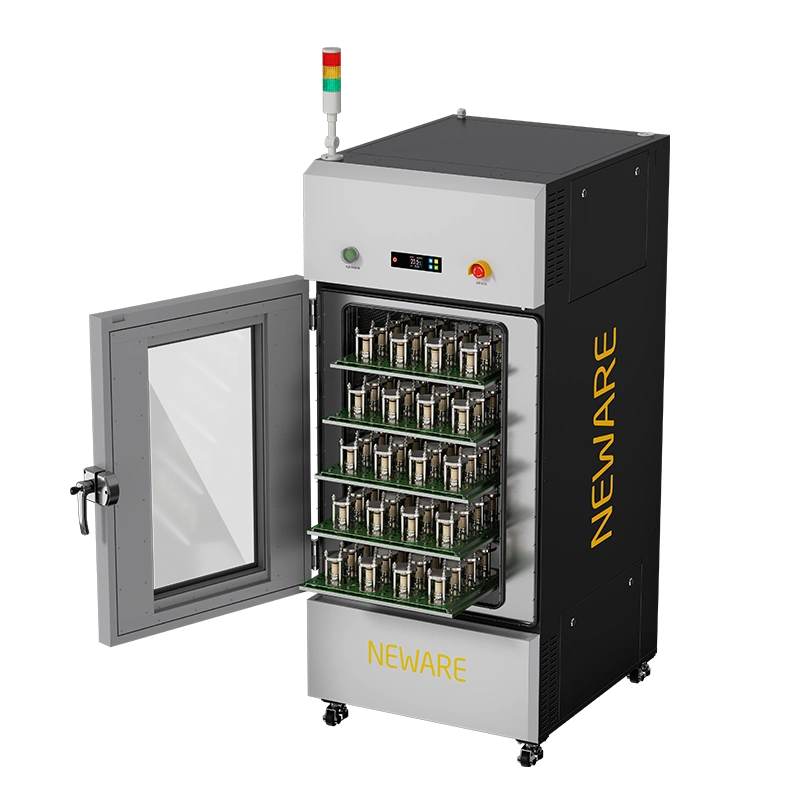

80-channel parallel testing

5 V / 100 mA per channel, five-layer tray layout (16 channels per layer), ideal for high-throughput small-cell screening.

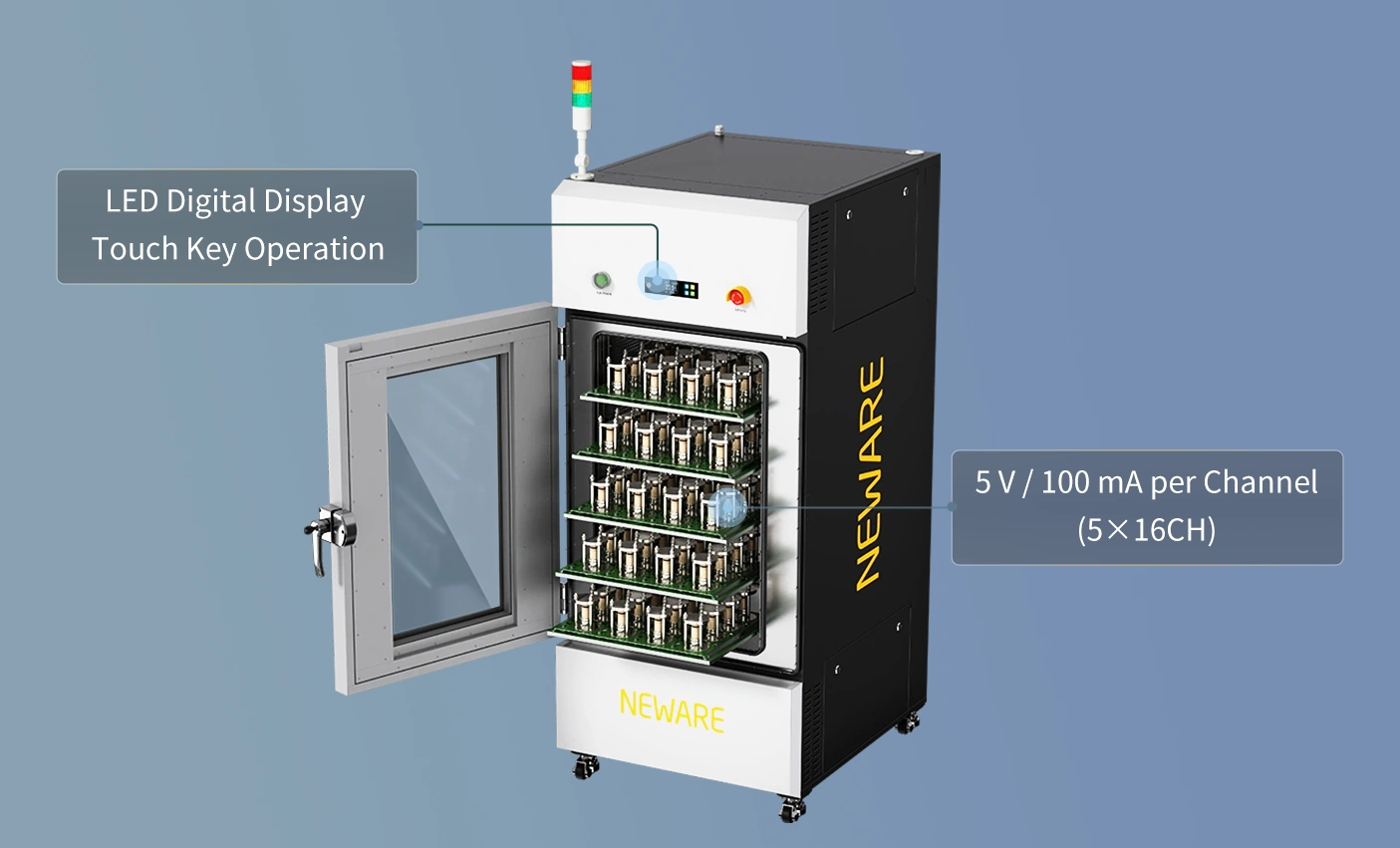

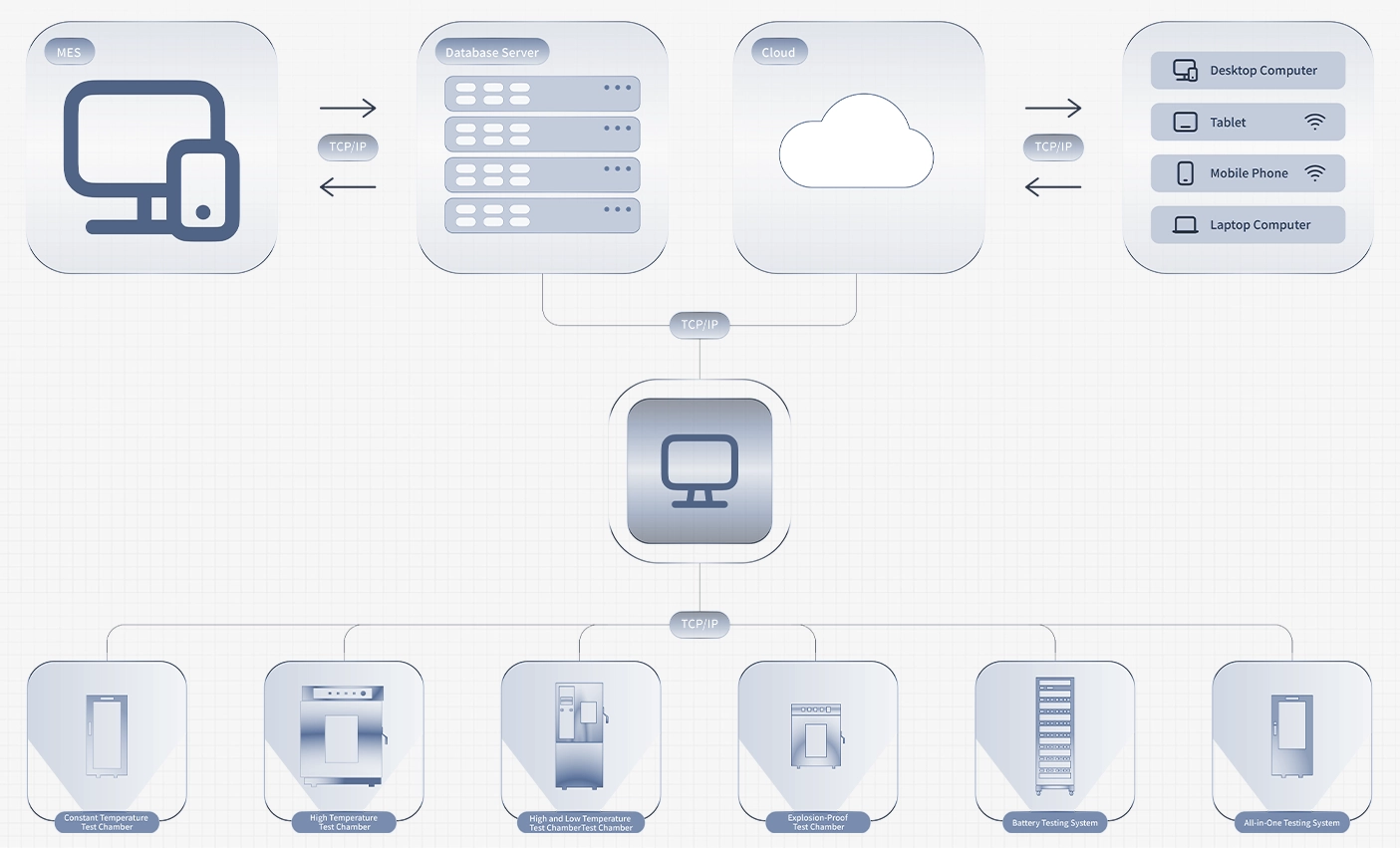

Self-developed controller + Ethernet

LED digital display with touch keys, standard Ethernet interface to the host PC, programmable step profiles, remote monitoring and traceable data.

Per-channel pressure sensing

Every channel is equipped with a pressure transducer, capturing interfacial strain and contact-resistance evolution—critical for solid-state cell R&D.

Robust refrigeration & heating

Hermetic reciprocating compressor, air-cooled, R134a refrigerant, nitrogen-purge brazing; SSR zero-cross pulse-width heating for stable long-duration runs.

Safe & ergonomic

Leakage/over-current/fan-fault protection; anti-fog tempered glass door with LED lighting; five φ50 mm cable ports; four braked casters; four layers of insulating Bakelite trays (20 kg/layer evenly distributed).

Applications

• Interfacial impedance and cycle-life testing of solid-state and semi-solid-state batteries

• Constant-temperature capacity, rate-capability, CV and GITT characterization of coin cells

• High-temperature storage and thermostated charge/discharge cycling of small pouch cells

• Electrode and electrolyte material screening and process validation

• R&D and QC laboratories in universities, research institutes and battery companies

FAQ

• What temperature range does the WHW-200L cover?

  0 to 85 °C.

• How many test channels?

  80 channels, 5 V / 100 mA each, with per-channel pressure sensors.

• Which cell types?

  solid-state, coin and small pouch cells.

• How stable is the temperature?

  ±0.5 °C fluctuation, ±2.0 °C deviation (no-load).
