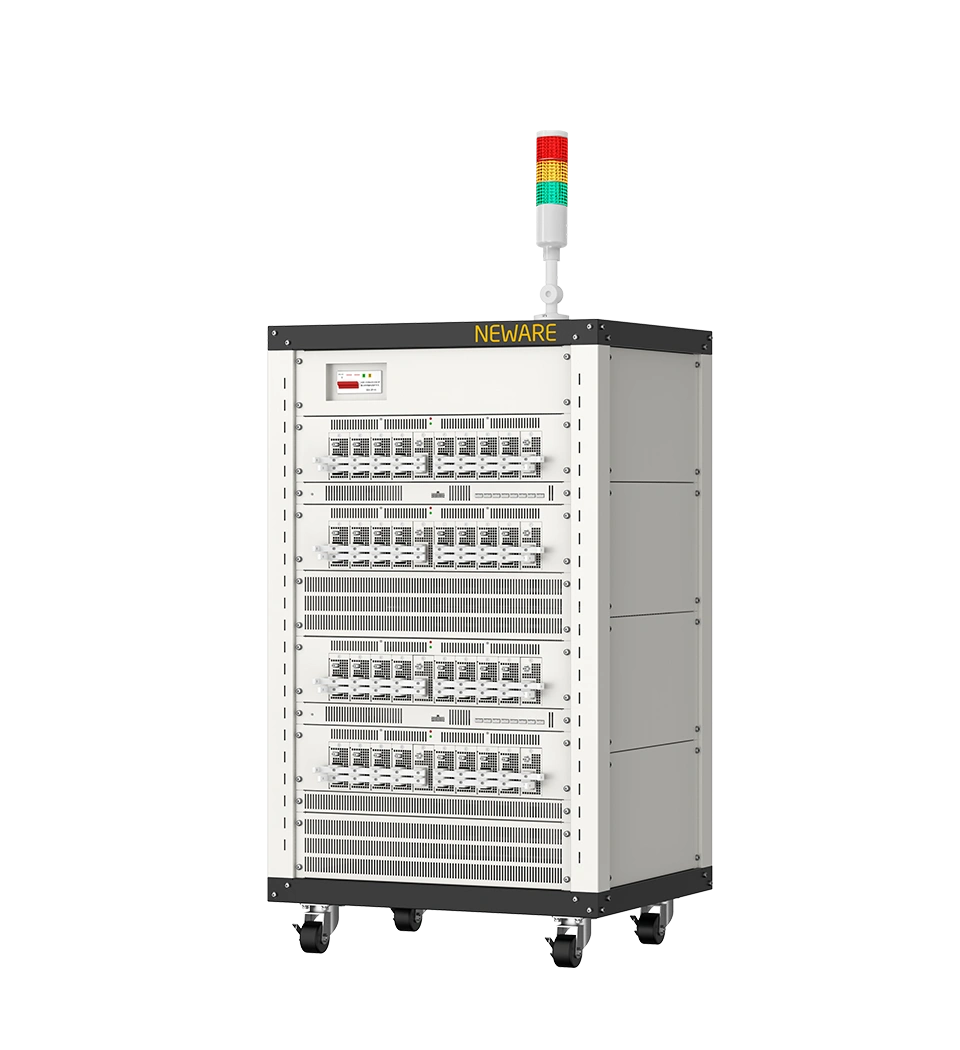

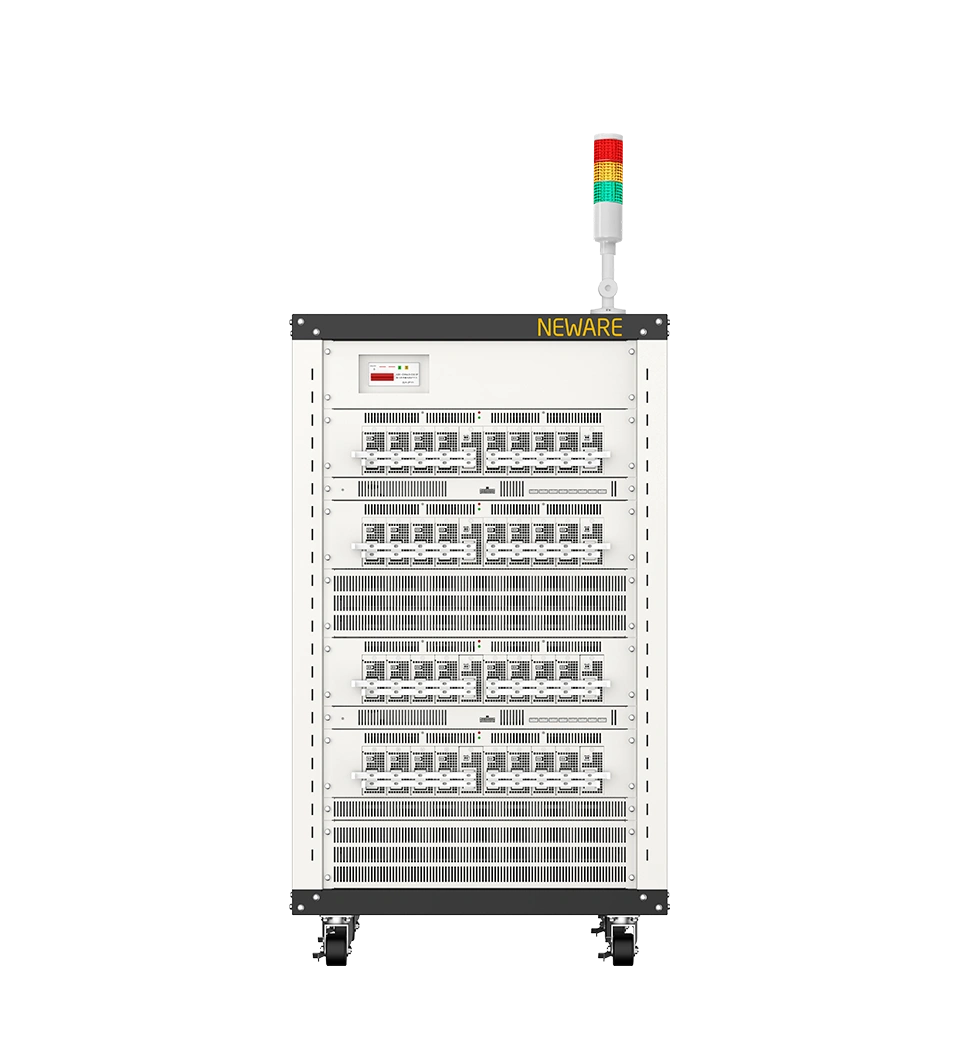

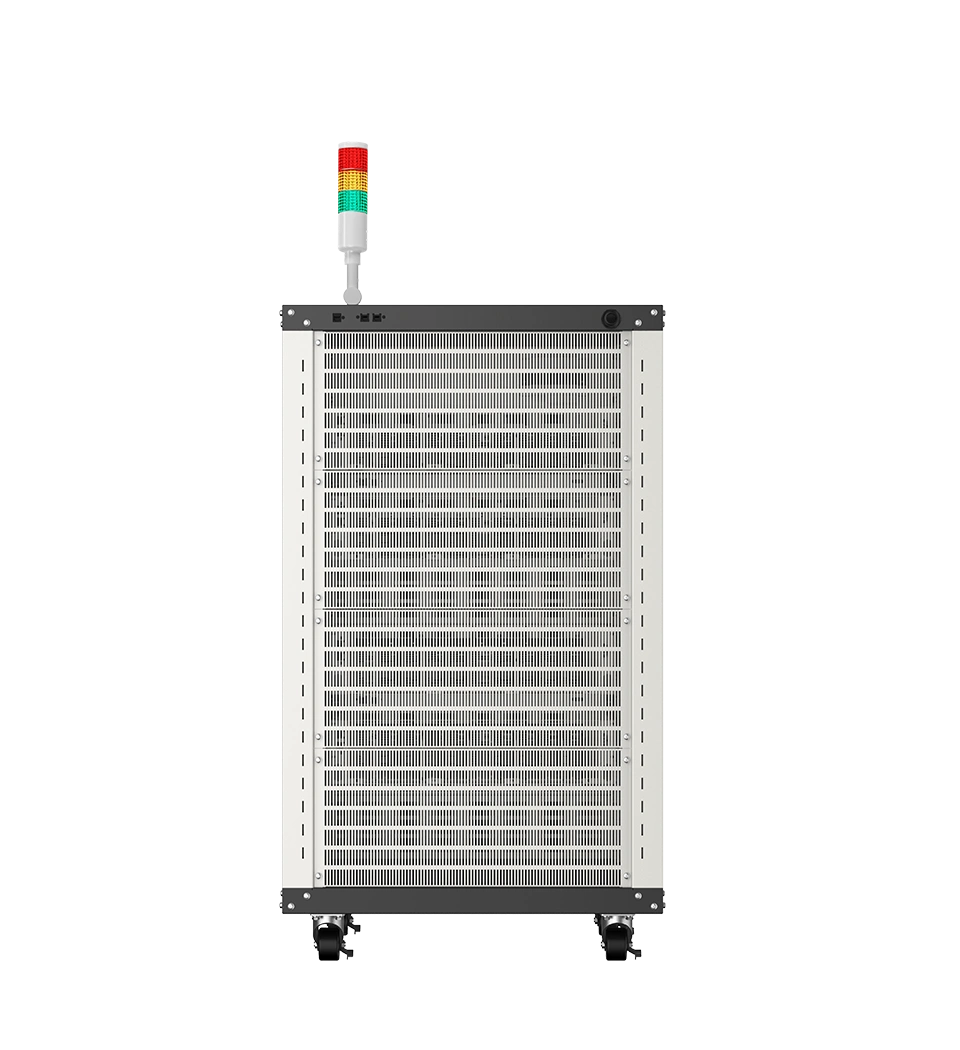

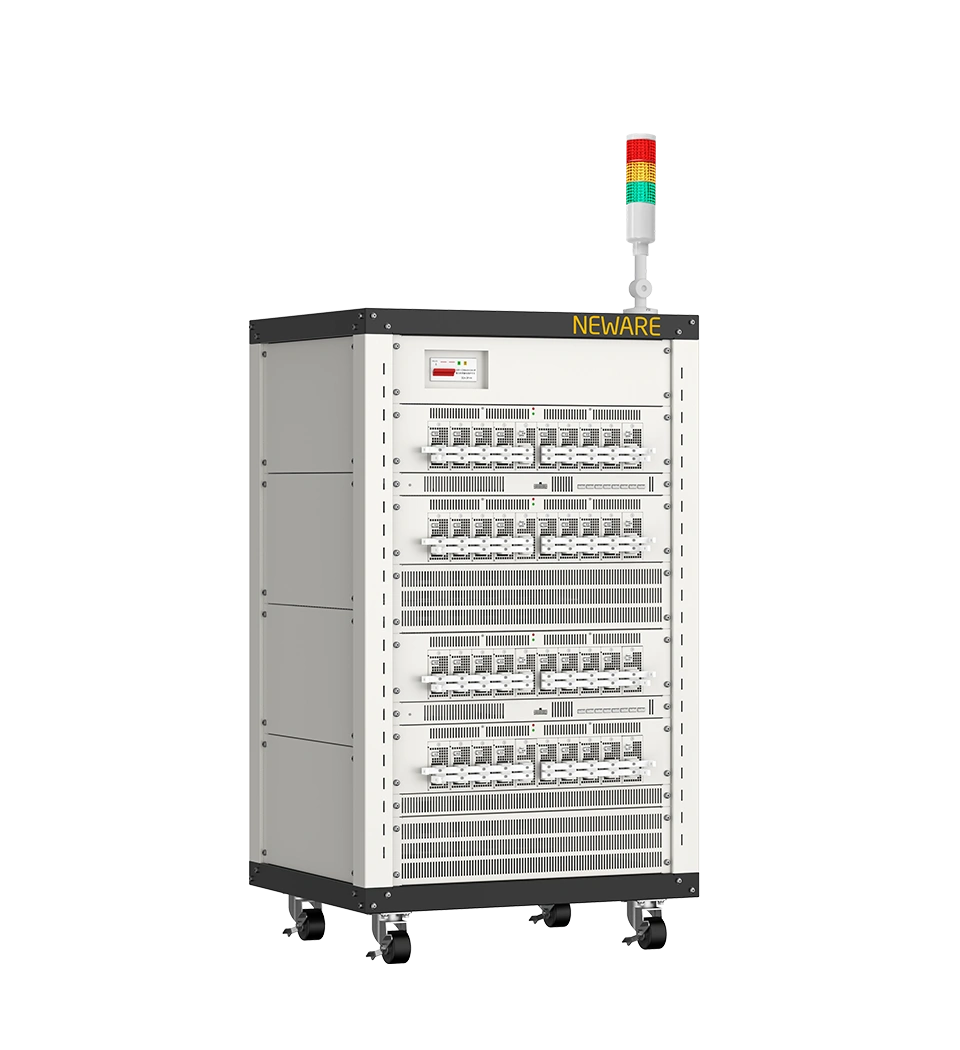

CT/CE-8000 Battery Testing System

CE-8008-5V200A

Work simulation for power safety. The product adopts modular design with each unit 8 channels which can be independently data acquisition and independently programmed to edit the maximum number of lines to support 254 lines.

* This product model has been updated. For details, please refer to CT/CE-8000 Series, or consult a sales expert.

Request a quote

Features

Resources

Unleash the battery's potential with condition simulation.

User-Side Energy Storage

Electric Bicycles

Electric Motorcycles

Electric Vehicles

Communication Energy Storage

Electric Energy Storage

Illuminating the path to truth.

Voltage Accuracy

±0.01% F.S.

Recording Frequency

100Hz

Energy Feedback

＞65%

Current Response Time

≤5ms

Minimum Pulse Width

500ms

Working Condition Simulation

1,000,000 Rows

Stable performance parameters to ensure accurate and reliable test data. At the same time, the product adopts modular design with each unit 8 channels which can be independently data acquisition and independently programmed to edit the maximum number of lines to support 254 lines.

CE-8000	5V	100A	200A	300A	500A	600A
CT-8000	5V	30A	50A	100A	200A	300A
CT-8000	5V	500A	600A	800A	1000A	-

*CTE-8000：E indicates the energy feedback function.

*Other models can be customized according to voltage and current requirements.

Experience the intensity: Harness the hardcore chip for unmatched superpower.

Adopt AC/DC, DC/DC dual-stage high-frequency isolation modular design, combined with low-temperature drift, high-performance multi-channel 16-bit ADC chip, and steady-state accuracy is higher than traditional equipment.

NEWARE CE-8008-5V200A-Battery tester adopt AC/DC, DC/DC dual-stage high-frequency isolation modular design, combined with low-temperature drift, high-performance multi-channel 16-bit ADC chip

Eco-wizardry: Enriching the world with green energy.

Feedback Efficiency (Min)

65%

The energy generated by the battery discharge can be recovered and supplied to other channel batteries or fed back to the intranet, with an energy recovery efficiency of not less than 65%.

Work scenarios simulated. Enhanced data support.

Cycle Life Test

Rate Charging / Discharging Test

Pulse Simulation Test

HPPC

Based on NEWARE 5th generation test system architecture, it can perform Cycle life test, rate test, pulse simulation test, HPPC, etc. Meanwhile, it can simulate the actual driving road conditions of electric vehicles by dynamic power or current waveform.

simulate the actual driving road conditions of electric vehicles by dynamic power or current waveform

Perpetual dedication to safety protection.

● Power-down data protection

● Offline test function

● Safety parameter setting:

○ upper voltage limit,

○ lower voltage limit,

○ upper current limit,

○ lower current limit,

○ upper capacity limit,

○ delay time.

The NEWARE CE-8008-5V200A-Battery tester has a number of feature Settings for safety protection

Powerful programmability. Meet diverse testing needs.

Comprehensive equipment functionality, compatible with both charging and discharging, and adaptable to various BMS systems.

DBC Configuration

CC & CV charge/discharge test

500ms pulse width

Segmented recording

Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.

CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.

Testing the performance of the battery under fast changes in current/power.

Allow to set up to 3 segment recording conditions per step, including voltage, current and time.

Extensive peripheral devices. Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
