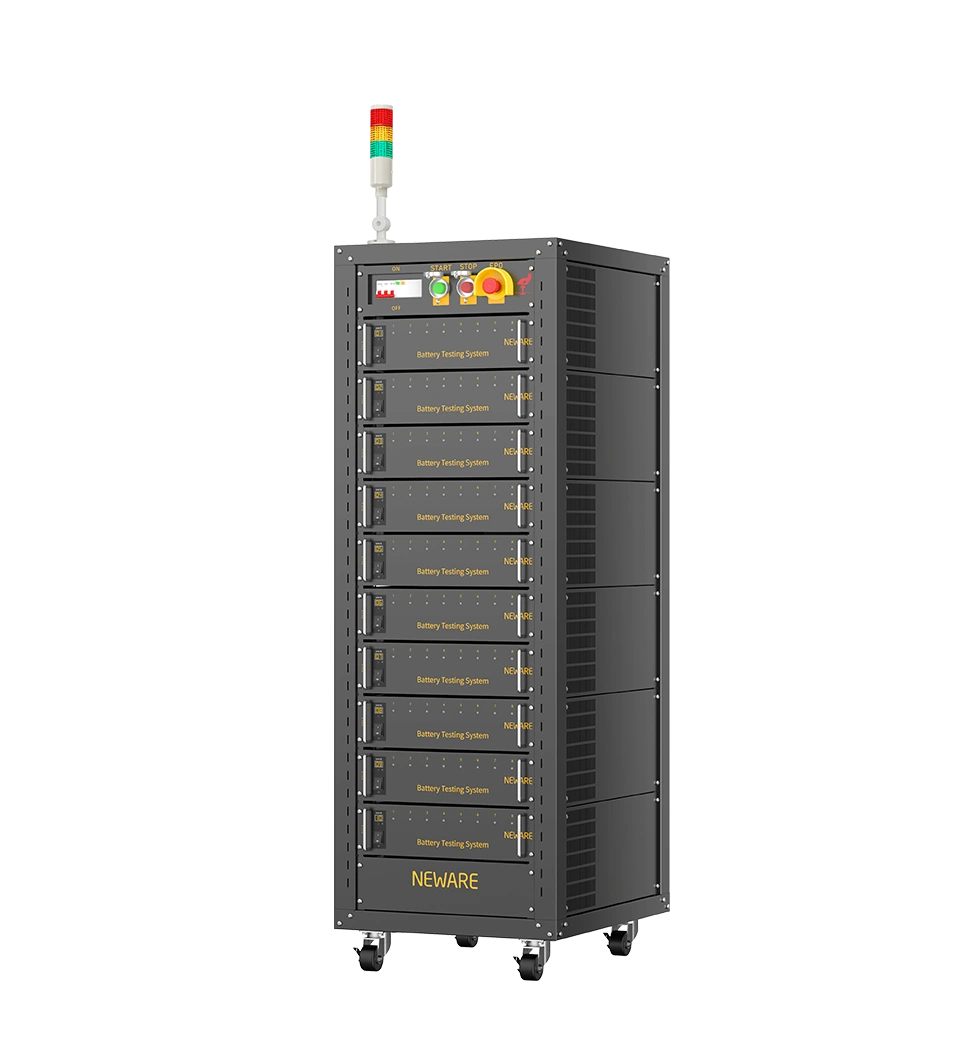

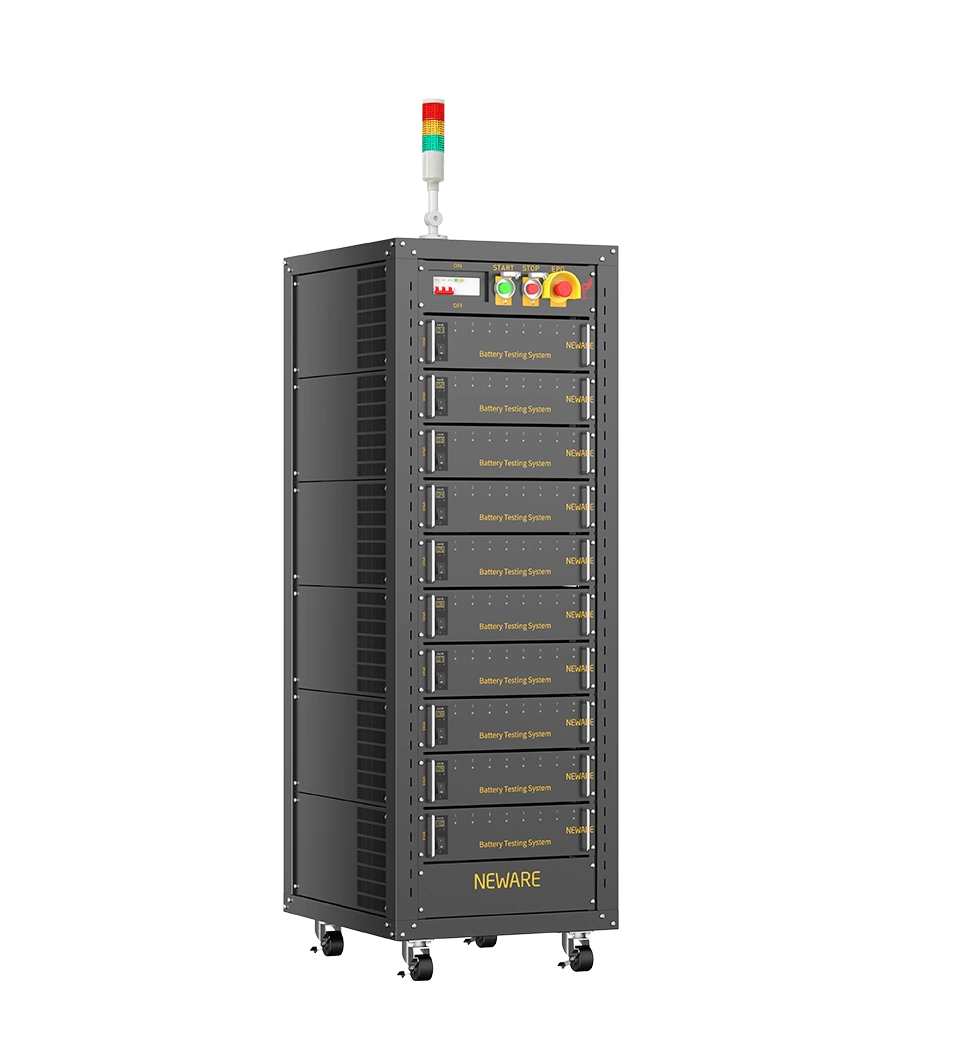

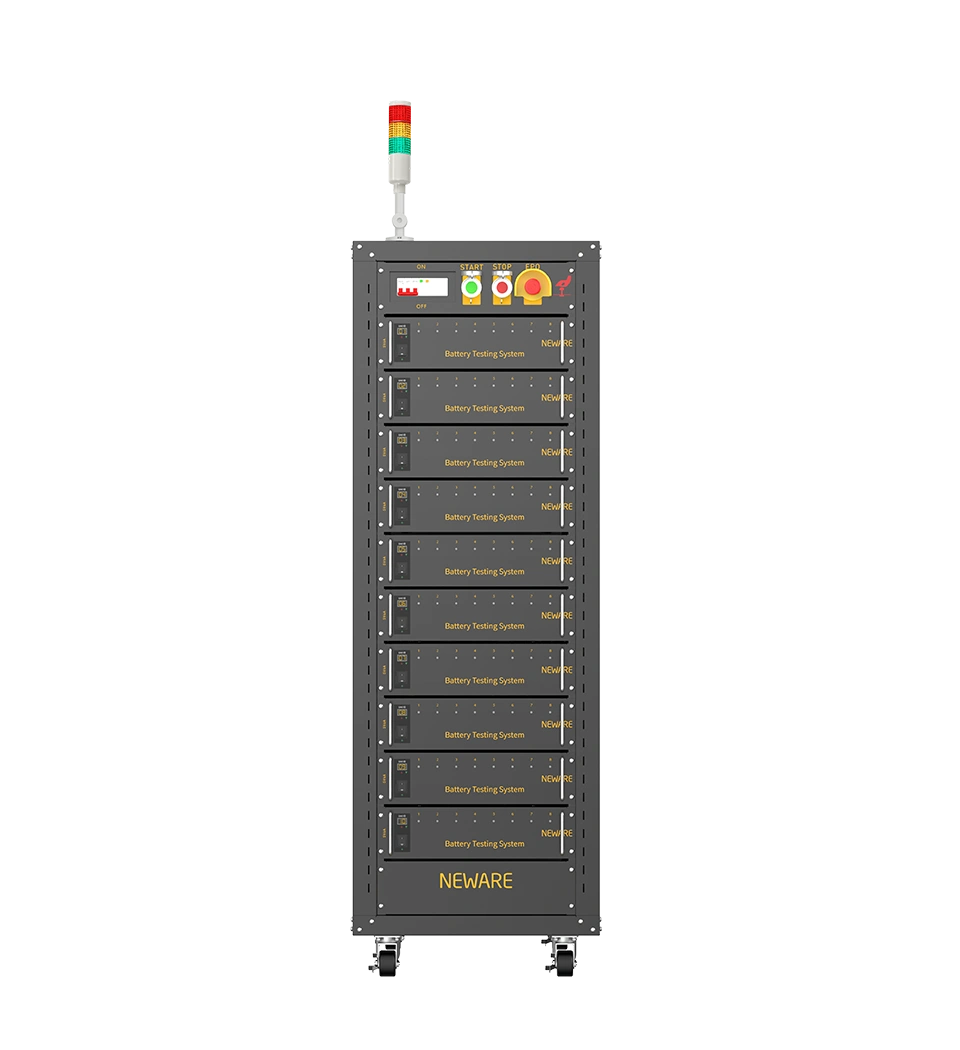

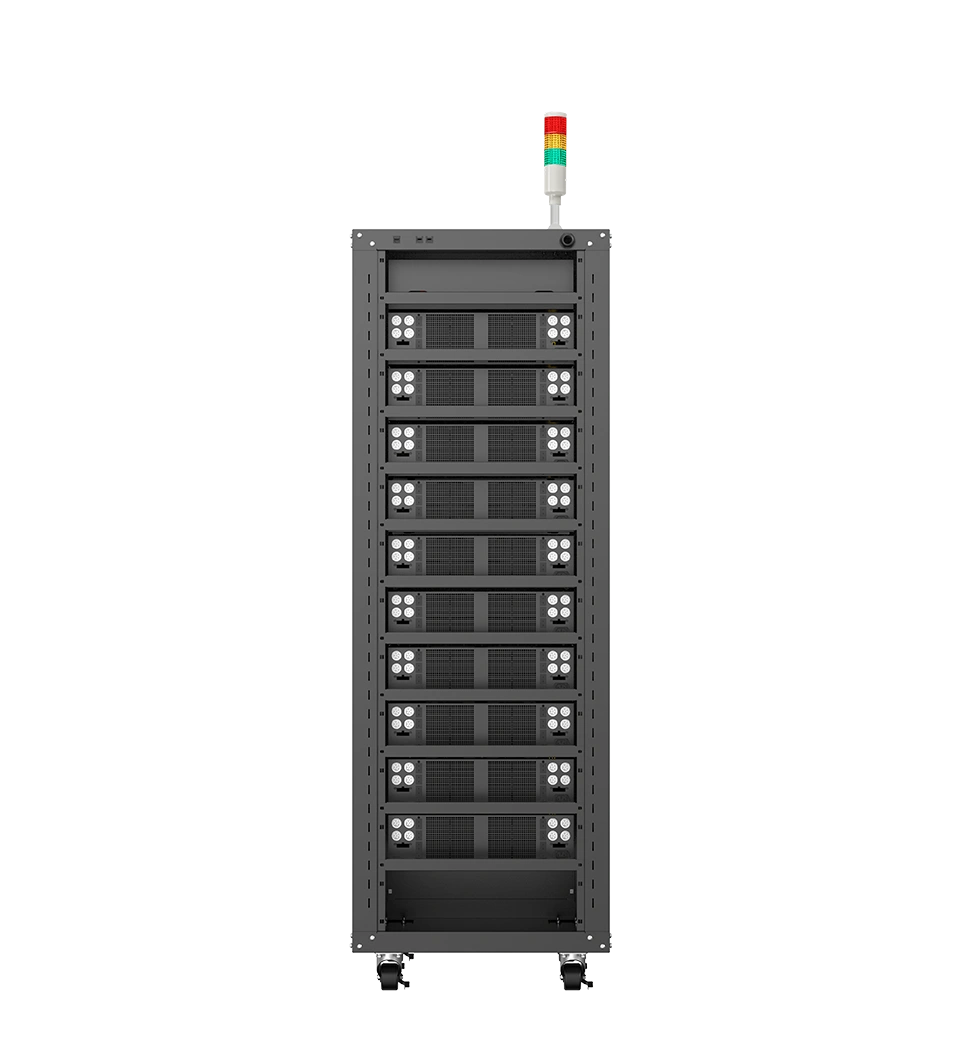

A high-precision battery testing system developed specifically for 3C products.
* This product model has been updated. For details, please refer to CT/CE-5000 Series, or consult a sales expert.
Features
The CT-5080-5V6A is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.
| Voltage & Current | Range 1 | Range 2 | Range 3 |
| 5V6A | 0A ~ 0.2A | 0.2A ~ 1A | 1A ~ 6A |
*Other models can be customized according to voltage and current requirements.
Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.

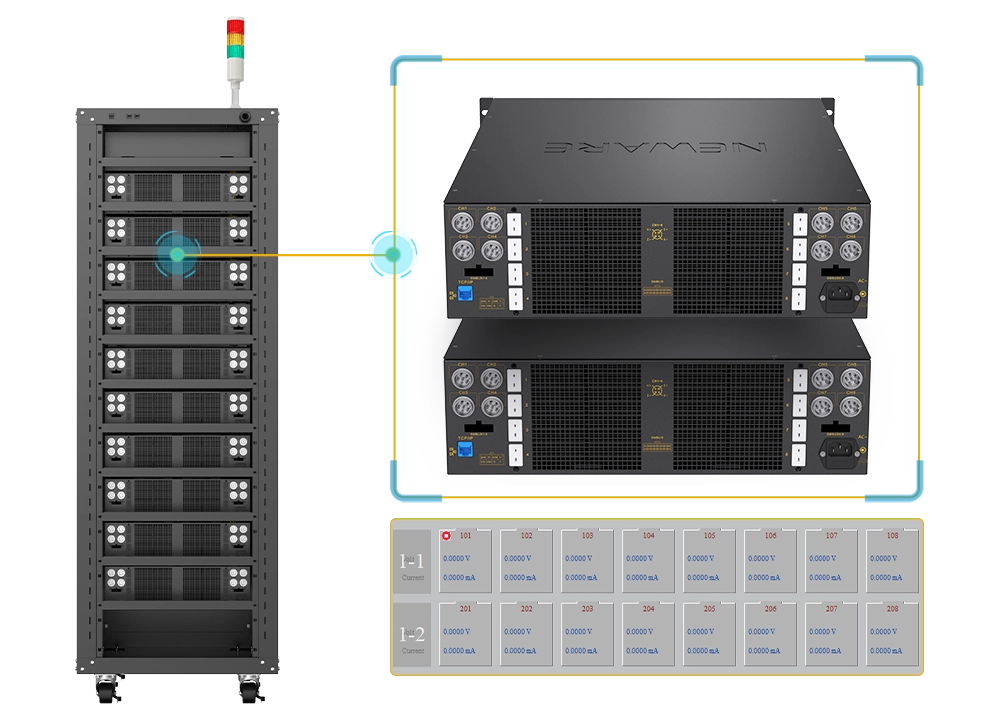

Each unit runs independently with 8 channels, and each channel can be set to read different SMBUS parameter lists. With a small number of parameters read per channel, it can achieve a refresh rate of more than 10 times per second.

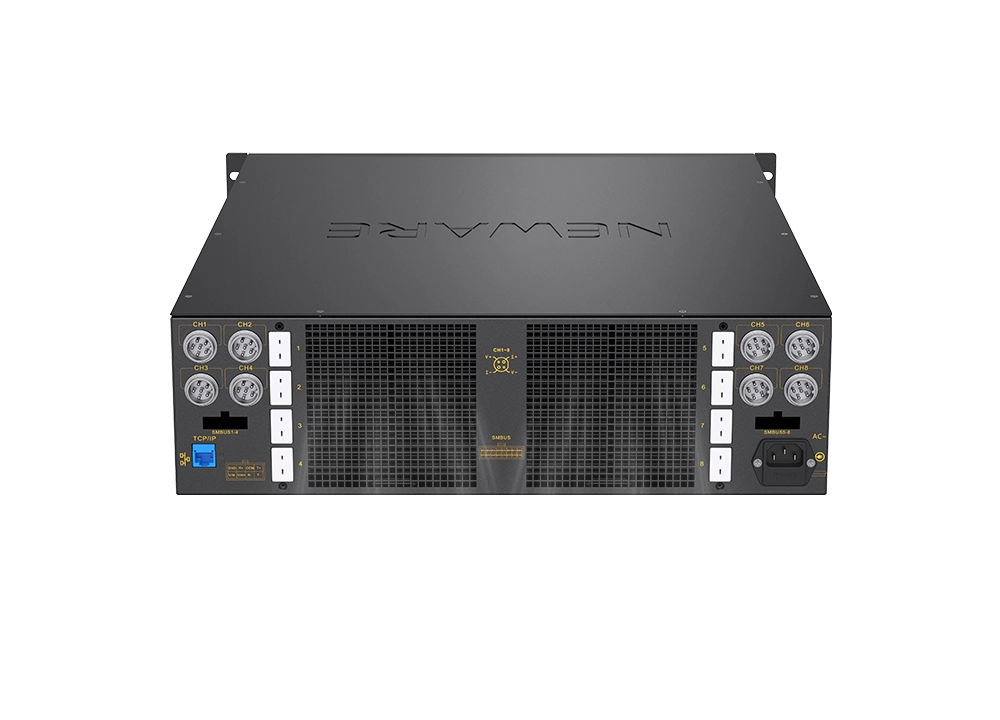

Cross-ventilation design increases cooling system efficiency.
● Power-down data protection
● Offline test protection
● Voltage Limits
● Current Limits
● Capacity upper limit
● Delay protection
● Reverse connection protection
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0℃≤50min）
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F(0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Temperature Range: 32℉~140℉
(0℃~60℃)
Ambient Air Temperature: 41℉~86℉
(5℃~30℃)
Temperature Fluctuation: ≤1.8℉(1℃)
(No load and stable temperature)
Cooling Efficiency: ≤40min(77℉→32℉)
(25℃→0℃)
Heating Efficiency: ≤30min(77℉→140℉)
(0℃→60℃)
Temperature Deviation: ±3.6℉(±2.0℃)
(No load and stable temperature)
