Efficiency innovation in coin cell testing for AI-driven era
As AI-driven material research gains momentum, new energy technologies like solid-state batteries demand higher precision, efficiency and compliance from testing equipment. The NEWARE WHW-25L 32CH Mini All-in-One Tester integrates charge-discharge testing and precision temperature control, fits university automated labs and manufacturer R&D scenarios, offering efficient solutions for coin cell material research and performance testing to shorten R&D cycles.

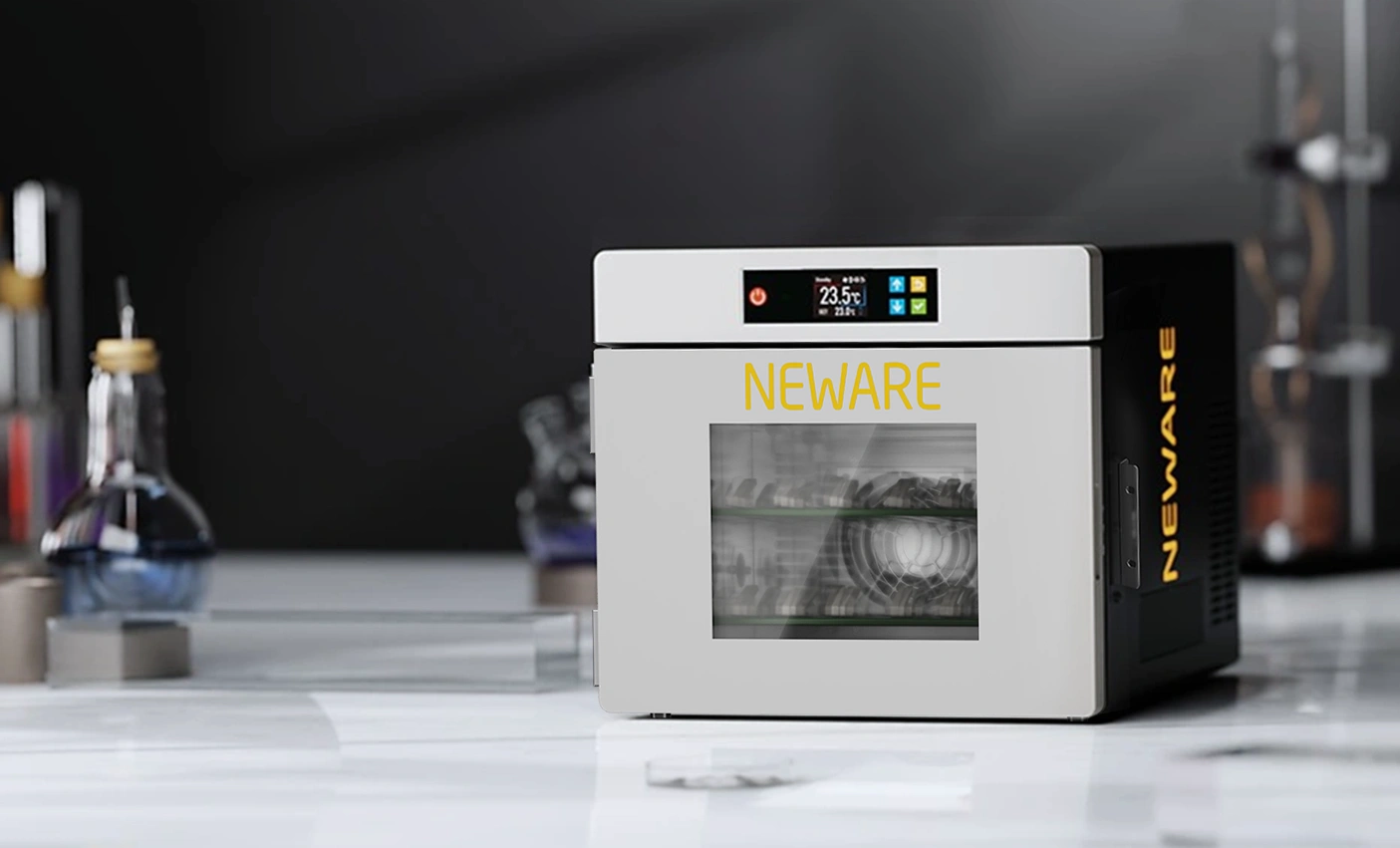

Space-saving & efficiency-boosting for automated labs

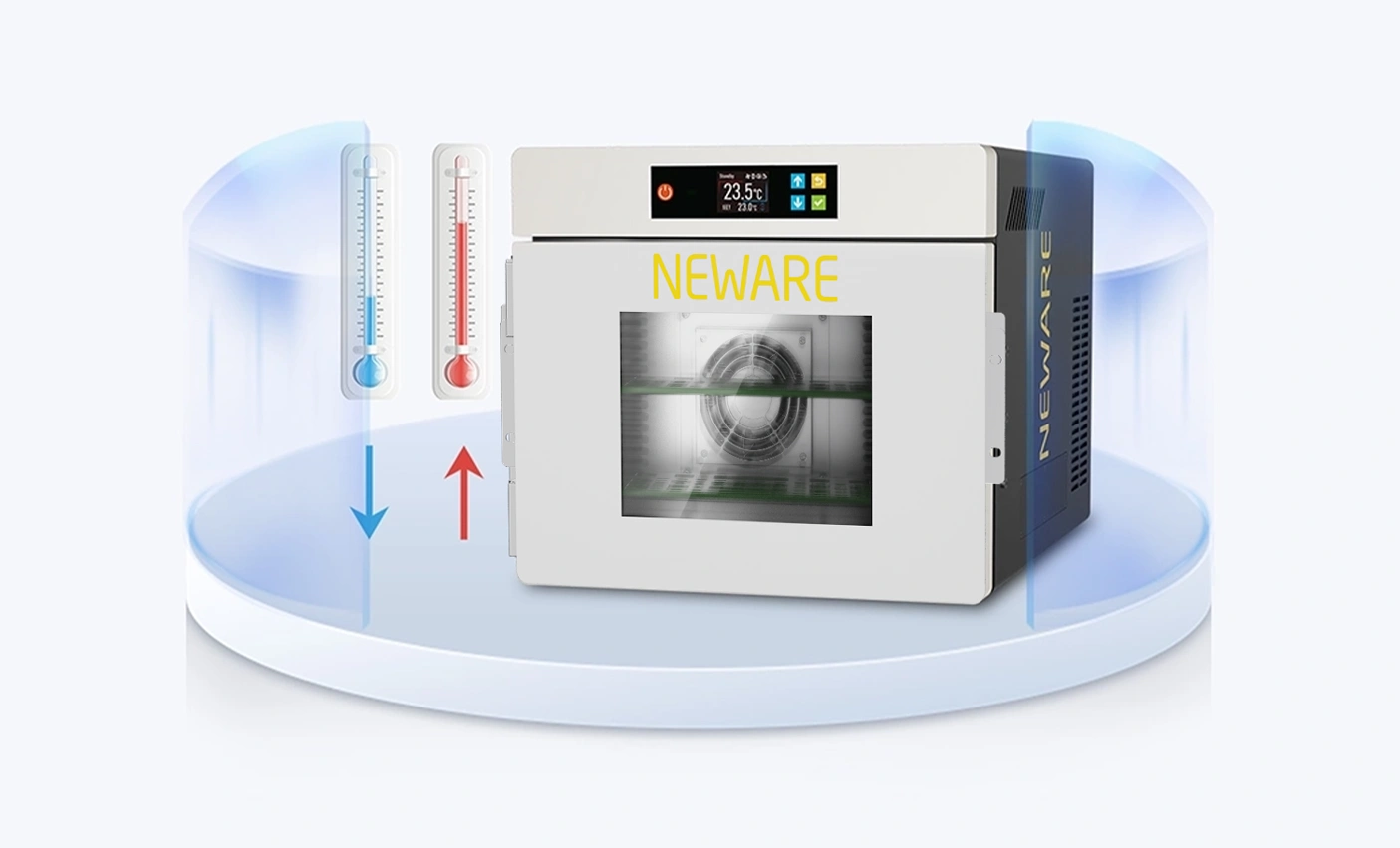

No more switching between separate charge-discharge devices and environmental chambers. The WHW-25L 32CH tester integrates two core functions seamlessly, maximizing space usage while eliminating cross-device compatibility issues. Designed for small-scale R&D, its 25L nominal volume occupies less than 0.5 m² of desktop space—freeing up lab area and enabling easy observation of internal test processes.

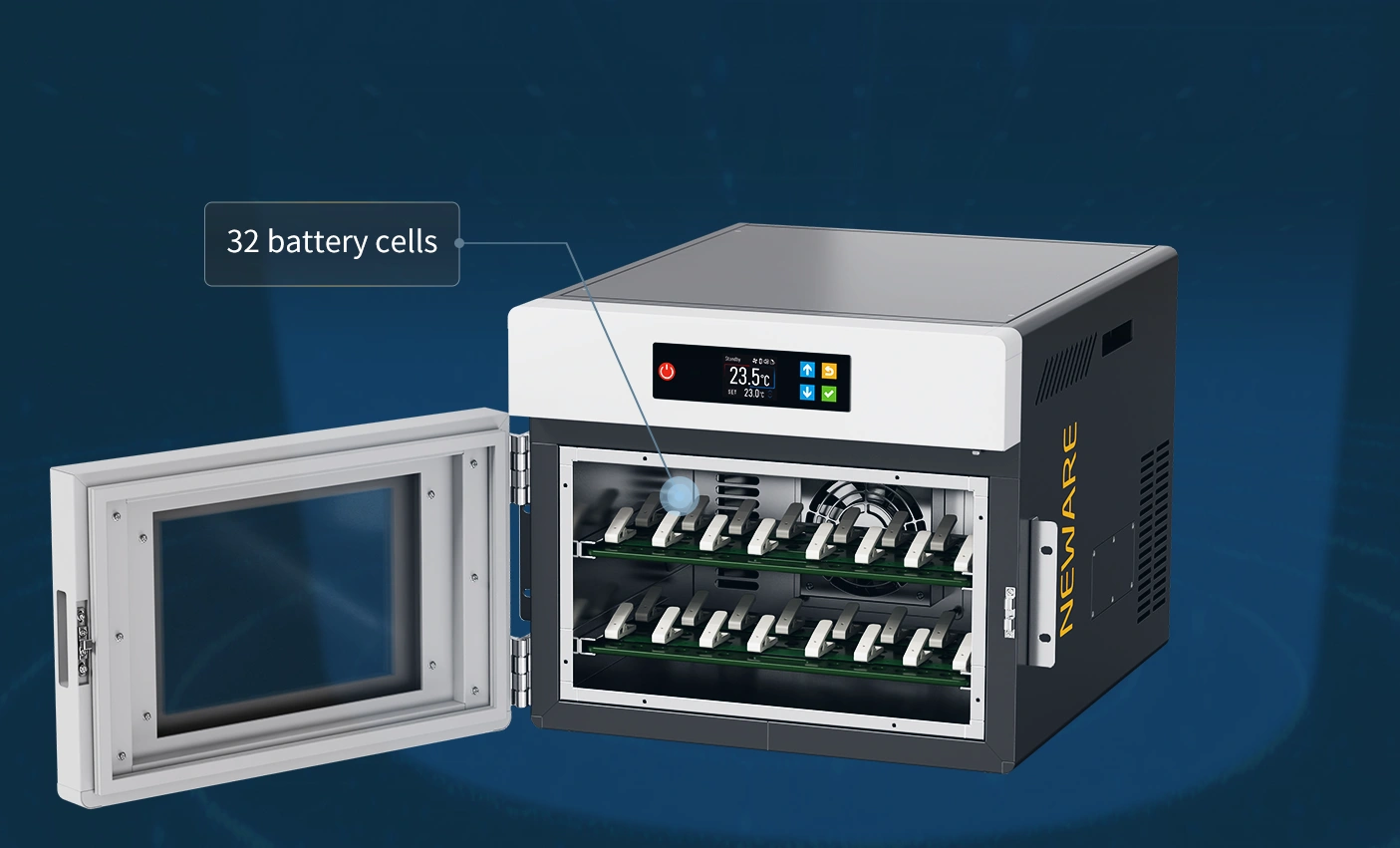

Its 32 high-density channels support stable simultaneous testing of 32 coin cells, enabling efficient batch analysis for material research, cycle stability assessment, and quality control. Combined with advanced processors and robust computing power, it handles large-scale test data and complex calculations effortlessly, cutting down researchers'time on manual operations and data integration.
Precision temperature control: ensure reliable test data

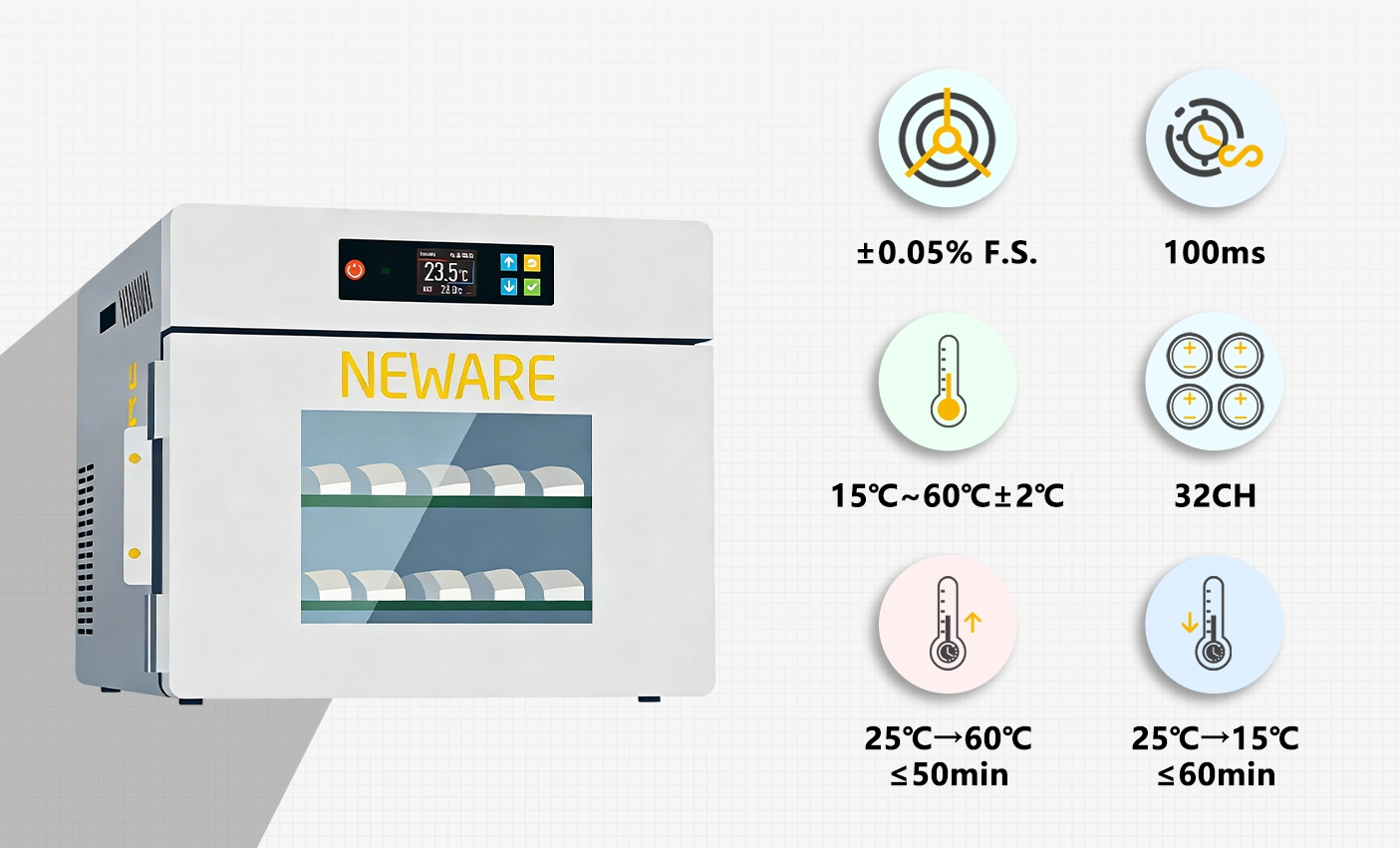

Temperature stability is critical to accurate battery performance evaluation—fluctuations lead to unreliable data. The WHW-25L excels in this aspect, featuring NEWARE's proprietary fuzzy PID algorithm. This advanced control mechanism dynamically adjusts the semiconductor cooling/heating module, maintaining a temperature range of 15℃~60℃ (59°F~140°F) with a deviation of ±2.0℃ (±3.6°F) and fluctuation ≤1℃ under no-load conditions, ensuring consistent test environments for all samples.
Heating and cooling speeds further enhance its practicality: it heats from 25℃ (77°F) to 60℃ (140°F) in ≤40 minutes and cools from 25℃ (77°F) to 15℃ (59°F) in ≤60 minutes (no-load). A 40mm polyurethane insulation layer and axial flow fan for uniform air circulation ensure temperature uniformity and efficient heat dissipation, delivering reliable, reproducible data for critical research.
Intelligent operation & comprehensive safety

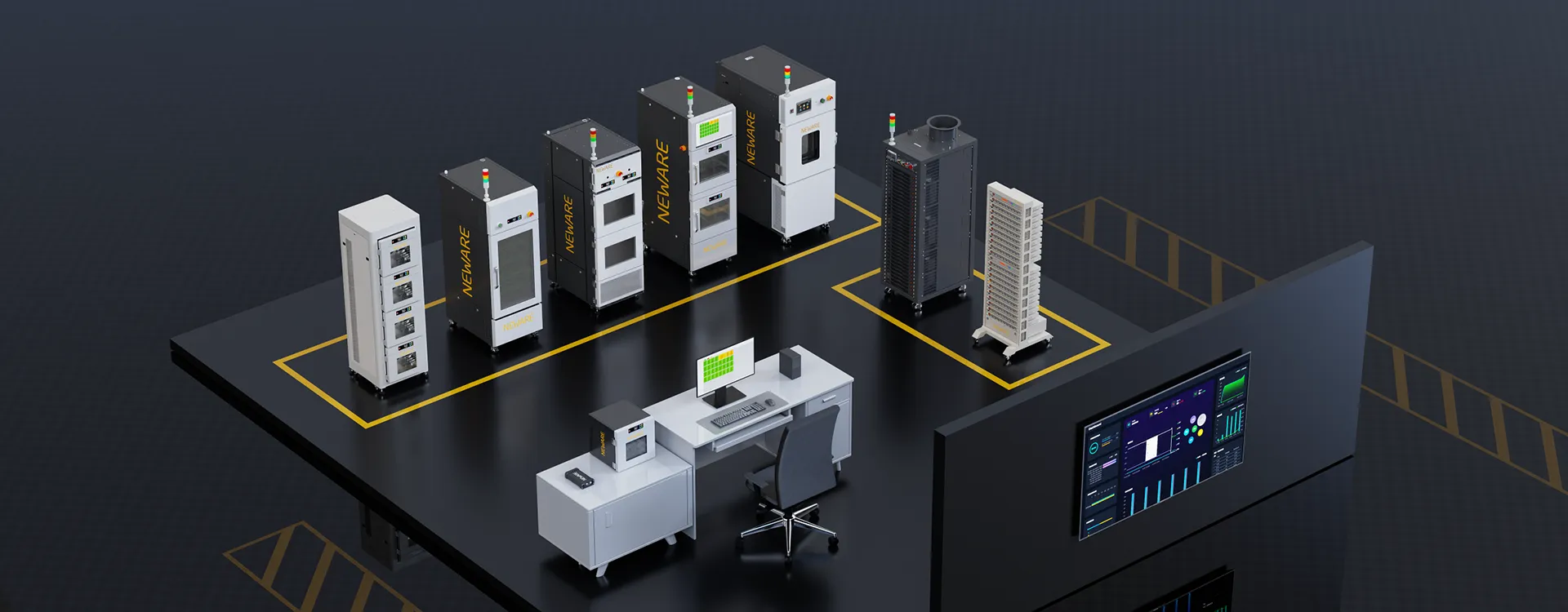

The WHW-25L is engineered with user-friendliness in mind, featuring an intuitive touch LCD screen and graphical interface. An infrared human-sensing function wakes the screen automatically within 1.5 meters, enabling seamless parameter setup and device management without manual activation. Paired with NEWARE's BTS battery testing software, it supports custom test parameters, procedures, and data recording rules, adapting to diverse coin cell testing needs—from charge-discharge capacity measurement to cycle stability analysis.
Safety is paramount in battery testing. The device integrates multiple protection mechanisms: power-failure data protection prevents data loss, short-circuit protection mitigates circuit risks, and real-time monitoring of the circulating fan detects abnormalities promptly. These features reduce experimental hazards and ensure stable, continuous operation even during prolonged testing sessions.
Adapt to evolving research needs
The WHW-25L offers exceptional compatibility and scalability, adapting to evolving research demands. It supports a dedicated three-electrode setup for coin cells, enabling precise battery performance measurement and comprehensive charge-discharge characteristic evaluation. For battery pack testing, it allows import, editing, and export of DBC files—supporting different battery pack protocols via simple code modifications, no program upgrades required, delivering unmatched flexibility.
It is also compatible with global power supply standards (AC220V±10% 50Hz / AC110V±10% 60Hz) and integrates with peripheral devices such as auxiliary voltage and temperature sensors. This versatility makes it suitable for diverse scenarios, from university academic labs to small-batch production quality control.
Why choose WHW-25L？Cost-effective solution for solid-State battery R&D
In battery research, precision and efficiency directly drive innovation speed. The NEWARE WHW-25L 32CH all-in-one tester emerges as a cost-effective, space-saving solution. Built on NEWARE's decades of expertise in battery testing technology and user-centric design, it delivers consistent, reliable performance for coin cell material research, performance testing, and quality assurance.
Whether you are a university researcher developing next-generation battery materials or a manufacturing engineer optimizing coin cell production processes, the WHW-25L streamlines workflows, improves data accuracy, and accelerates research and production timelines.
Explore the NEWARE WHW-25L+15C-5V100mA-32CH today to elevate your battery testing workflows.
