Formation and Grading System - Key Equipment for Lithium-ion Battery Production - Energy-efficient & Precise Grading

Formation and Grading System

The Formation and Grading System is a core equipment in lithium-ion battery production. It supports multiple models such as 18650 and 21700, with quick modular switching. Equipped with ±2℃ temperature control and energy feedback for energy efficiency, it integrates short-circuit, temperature, and smoke protection. It solves the problems of low precision and high cost of traditional equipment, and is suitable for large-scale production.

Prismatic Cell Automation

Prismatic Cell Automation

● All processes in the formation and grading area are fully automatic and controlled by the the scheduling system. ● Compatible with different types of cells ● Adopting DCAC regenerative power supply ● Airing cooling system ● Additional smoke sensors ● Data real-time backup ● Charging-discharging and testing parts of the system are automatically calibrated, with the function of regular reminder maintenance. ● Core components have a senior stable and reliable supply chain.
Read More
Pouch Cell Automation

Pouch Cell Automation

● Data real-time backup ● The probe assembly is adjustable and compatible with multiple types of cells ● Configured temperature sensor to monitor the cell in  real time  ● Independent scheduling system and database system ● Adopting  DCAC regenerative power supply ● Automatic calibration
Read More

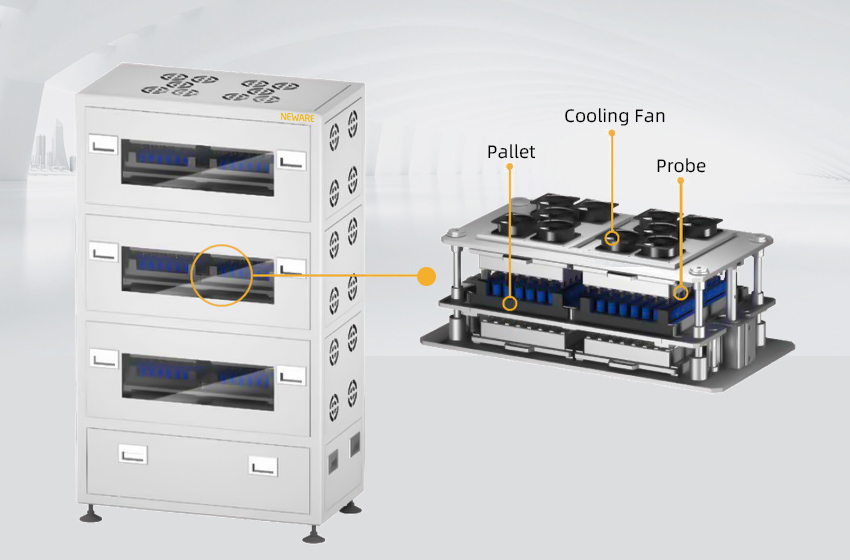

Cylindrical Cell Automation

Cylindrical Cell Automation

● All processes in the formation and grading are fully automated and controlled by the scheduling system ● Support 18650、21700、26650、32650 cells ● Adopting DCAC regenerative power supply  ● Additional smoke sensors ● Air cooling system ● Data real-time backup ● Charging-discharging and testing parts of the system are automatically calibrated, with the function of regular reminder maintenance. ● Core components have a senior stable and reliable supply chain.  ● Configured temperature sensors to monitor the cell in real time  ● Configured a separate human-computer interface, which can monitor each component in real time to ensure system security. ● Each location of formation and grading machine is isolated from each other and does not affect each other. ● Formation and grading have single cell over temperature alarm and automatic fire extinguishing design.
Read More
